P8 Outdoor Advertising LED Display Screen

P8 Outdoor Advertising LED Display Screen

This kind of LED screen usually is fixed in one place and don't need to move it. So the LED screen usually consist of waterproof iron cabinet which has IP65 protection level.
Send Inquiry
Description
Technical Parameters

1



Parameter



Pixel Picth

P6

P6.67

P8

P10

LED Configuration

SMD 3 IN 1

SMD 3 IN 1

SMD 3 IN 1

SMD 3 IN 1

Pixel Density

27778pixel/m2

22500pixel/m2

15625pixel/m2

10000pixel/m2

Module size

320*160mm

320*160mm

320*160mm

320*160mm

Module Resolution

32*32 dots

48*24 dots

40*20 dots

32*16 dots

Screen Size

Customize

Customize

Customize

Customize

Cabinet Size

960*960 mm

960*960 mm

960*960 mm

960*960 mm

Cabinet Resolution

192*192 dots

144*144 dots

120*120 dots

96*96 dots

Cabinet Weight

13kg

13kg

13kg

13kg

IP Rating

IP65

IP65

IP65

IP65

Gray Scale

16 bit

16 bit

16 bit

16 bit

Display Scale

16.7M

16.7M

16.7M

16.7M

Max.Power Consumption

900w/panel

900w/panel

900w/panel

900w/panel

Ave.Power Consumption

260w/panel

260w/panel

260w/panel

260w/panel

Refresh Frequency

38400Hz

3840Hz

3840Hz

3840Hz

Operating Power

AC 110~220V

AC 110~220V

AC 110~220V

AC 96~242V

Operating Humidity

10~90%RH

10~90%RH

10~90%RH

10~90%RH

Operating Life

100,000Hours

100,000Hours

100,000Hours

100,000Hours

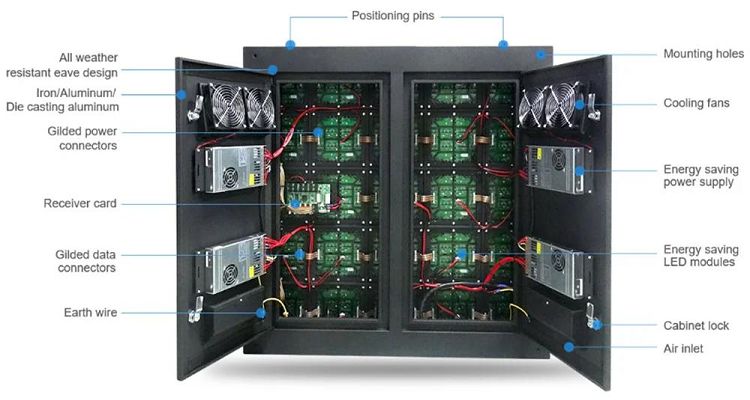

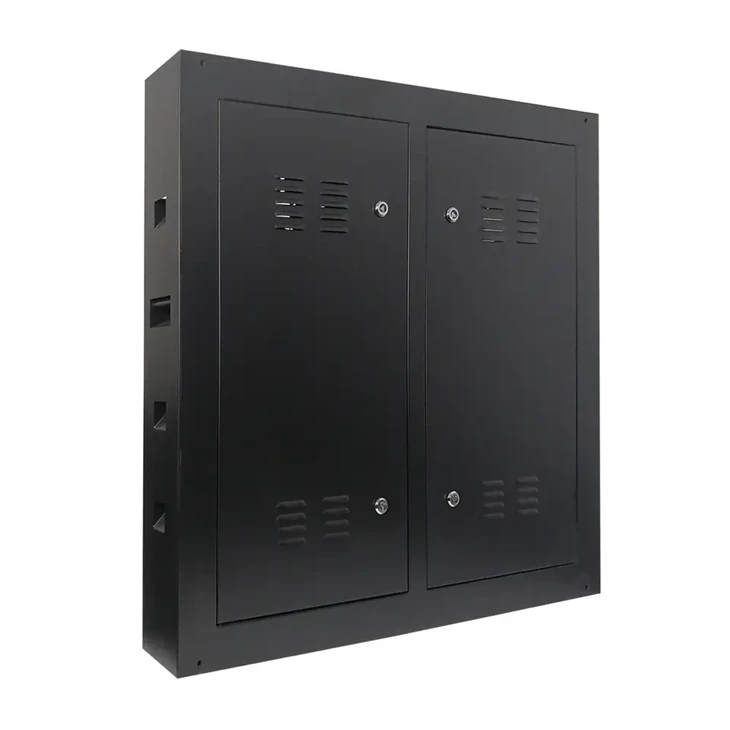

Use wateproof IP65 iron cabinet



2001

3001



Features



1. High-quality LED chips with large angles and good flatness of P8 outdoor advertising led display screen

2. The standardization of cabinet design makes the LED cabinet thinner and lighter, saving transportation costs and making the installation of advertising screens more convenient.

3. Unique waterproof box design, in line with IP65 protection standard, waterproof and dustproof

4. It can adapt to different climates and environments with large temperature differences. The operating temperature range is -30°C to 50°C. The box has good moisture-proof and corrosion-resistant properties, and can even be used in high-humidity and high-salinity air environments at the beach;

5. The brightness of the LED outdoor display is higher than 4000cd/㎡, and the screen brightness can be adjusted manually or automatically according to the ambient brightness;

6. Support remote wireless and wired control and management. One monitoring center can control multiple LED advertising screens.



4



FAQ


Q: 1.How do outdoor LED displays withstand different weather conditions?

A: Outdoor LED displays are designed to be weather-resistant and durable. They often have protective features such as waterproof and dustproof casing, as well as temperature control systems to operate in a wide range of weather conditions.

Q: 2.What is pixel pitch in outdoor LED displays?

A: Pixel pitch refers to the distance between adjacent pixels on an LED display. Smaller pixel pitch results in higher resolution and better image quality, making it important for close-viewing applications.

Q: 3.How is content typically managed on outdoor LED displays?

A: Content for outdoor LED displays is often managed through content management systems (CMS) or specialized software. This allows for remote control, scheduling, and updating of content to keep the display current.

Q: 4.Are outdoor LED displays energy-efficient?

A: Yes, outdoor LED displays are generally energy-efficient compared to traditional display technologies. LEDs consume less power and can be configured to emit light only where needed, reducing energy consumption.
