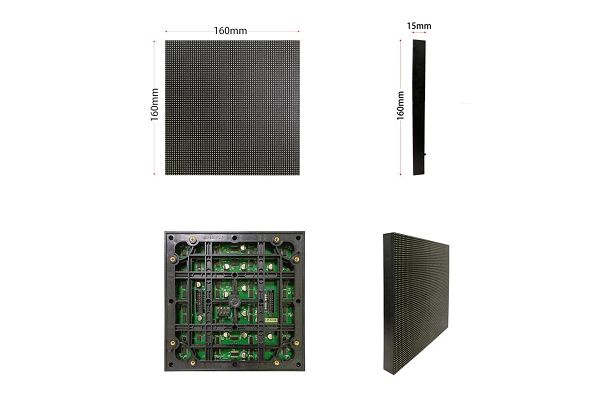

1.Led module size:160x160MM
2.Pixel pitch:PH2.5
3.Pixel configuration:160000 dot/m2
4.Package:SMD 1415
5.Module resolution:64(W)x64(H)
6.Max power:28W
7.Module thickness:15.5MM
8.Module weight:260g

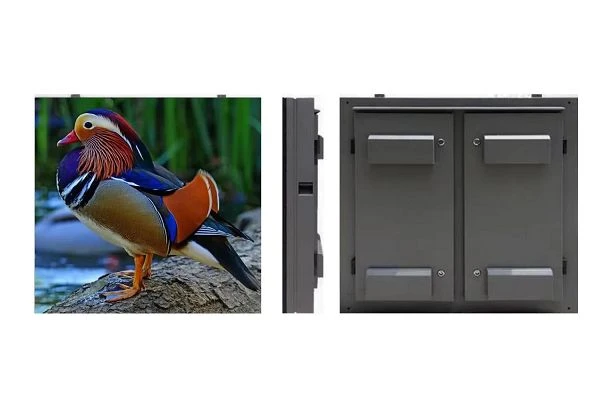

1.Cabinet size:960x960MM
2.Cabinet resolution:384(W)x384(H)
3.Material:Die-cast Aluminum
4.Scan mode:1/16 scan
5.Drive type:constant drive
6.Viewing angle:H:140°;V:120
7.Refresh rate:3840Hz
8.Average Power Consumption:260W/m2
9.Max.power consumption:900W/m2
Features
1. High resolution: The distance between adjacent lamp beads is small, and each square can accommodate more pixels, which can more perfectly express high-definition picture quality and rich colors.
2. Display effect: Non-linear correction technology makes the image delicate, color saturated, layered, smooth and lifelike.
High display brightness: the brightness is as high as 5000cd/㎡ or more, and the brightness of the LED display can be adjusted according to the light intensity of the use environment to always keep the image clear.
3. Uniformity: The wavelength deviation can be controlled within ±2nm, the consistency of chromatic and brightness can reach 99%, the flatness is ±0.1mm, and the seam gap is <0.2mm, thus making the color uniformity and consistency excellent.
4. Easy to operate: controlled by a common computer operating system and universal playback software, it is easy to learn and understand, and the playback content and sequence can be edited at will.
5. Super long life: The life of LED lamp beads can reach 100,000 hours. High-quality light-emitting components are the core material of the display screen, and the circuit board design is optimized to fundamentally ensure the service life of the product.
6. Energy saving and environmental protection: The PH2.5 LED display luminescent material itself is an energy-saving product. It is equipped with a dedicated constant current drive energy-saving IC and a high conversion rate drive power supply, and the brightness can be automatically adjusted.
7. Wide viewing angle: The surface-mounted lamp beads themselves have a large viewing angle, and are produced using high-precision equipment and advanced technology to make the horizontal and vertical viewing angles wider.
8. Stable performance: Unique anti-electromagnetic wave processing, distributed scanning technology, and modular design make reliability and stability higher.
9. Broad playback content: It can display text, tables, images, animations, videos, etc. It is equipped with a power amplifier and speakers that can synchronize the picture and sound. It is equipped with a TV box that can rebroadcast TV programs, and it is equipped with a video processor that can realize live broadcasts.
10. Multiple control methods: Equipped with different control systems, it can realize synchronous control, asynchronous control, wireless control, network control and remote control.
11. Convenient maintenance: The modular design makes maintenance and spare parts replacement convenient and quick.

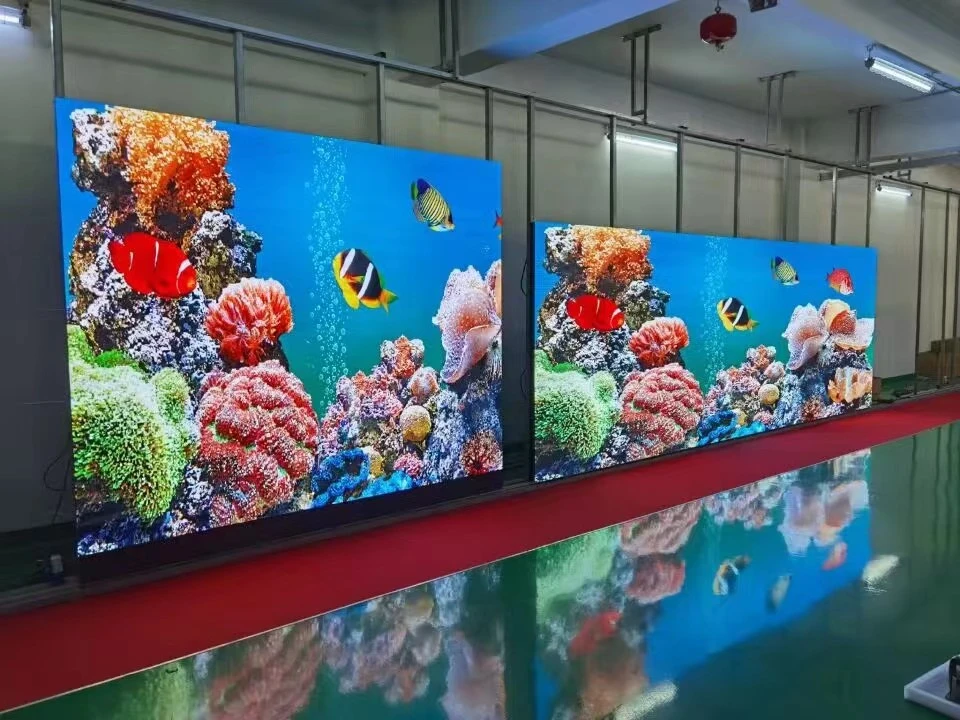

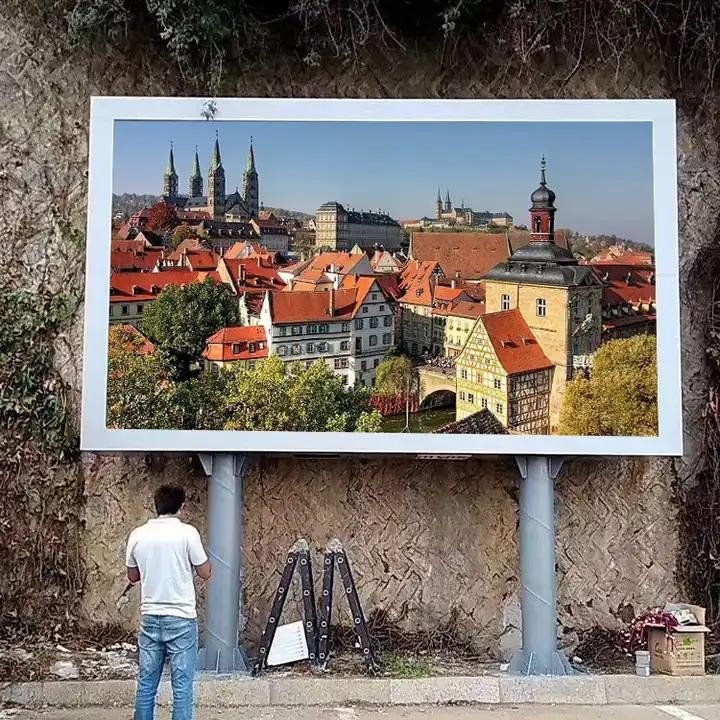

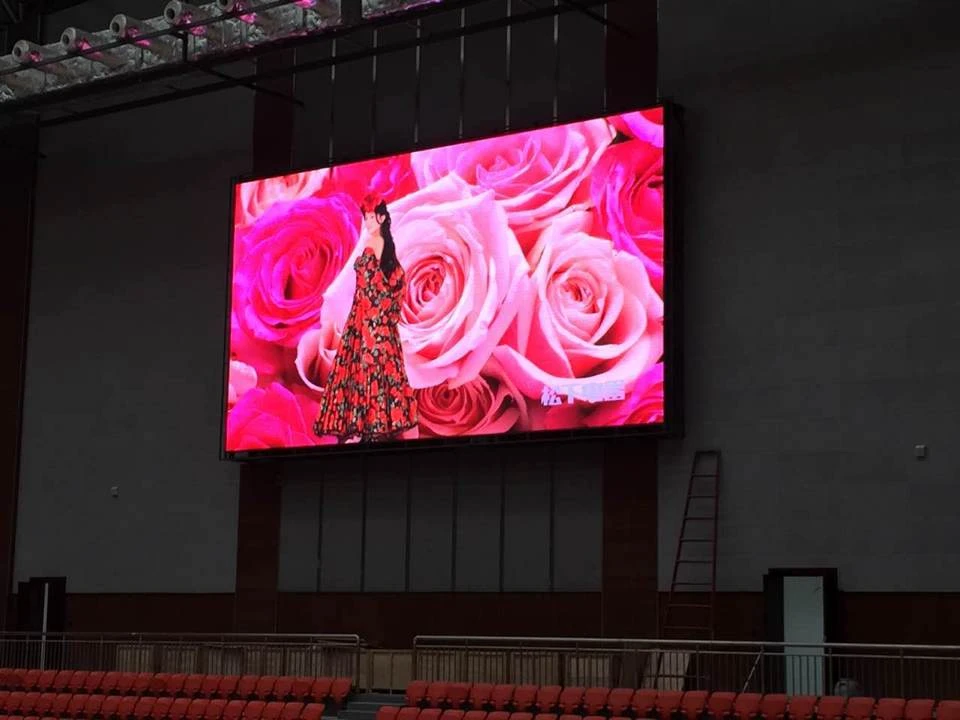

CASE SHARING

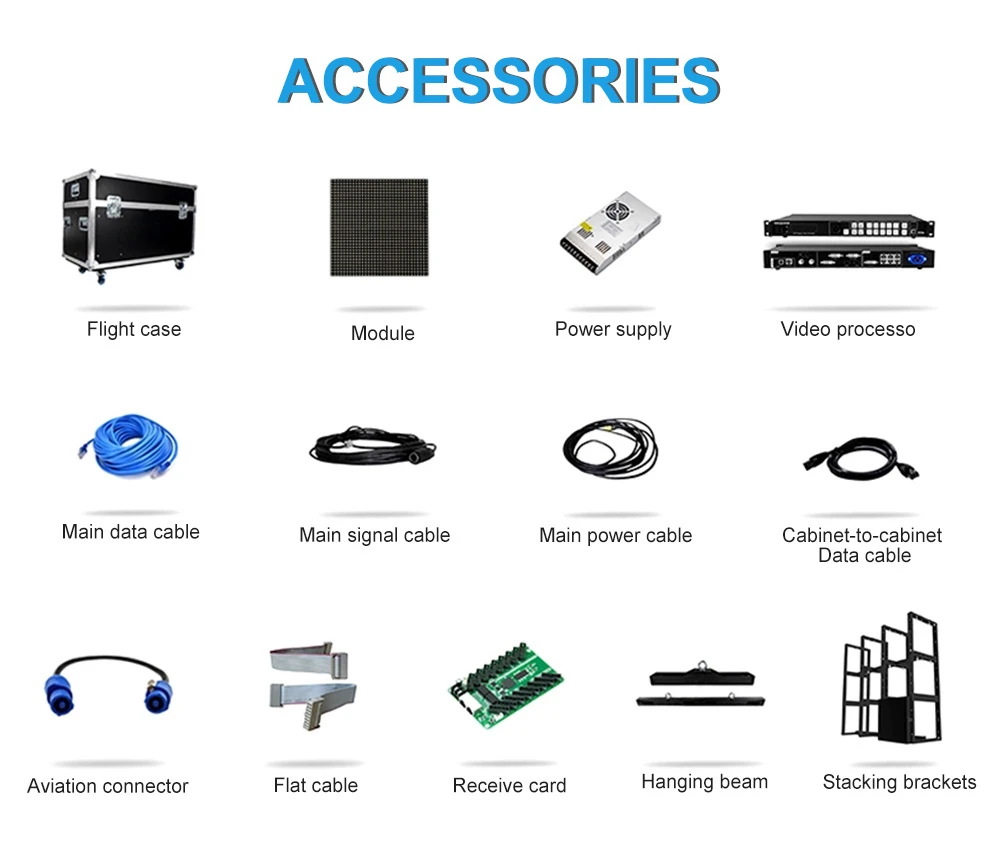

Accessories
Shenzhen Jiulong Optoelectronics Co., Ltd. is a trustworthy service provider that focuses on providing professional LED outdoor display system comprehensive project services and solutions to customers from all walks of life. Guided by values and beliefs, it is unique and powerful Our corporate culture helps us stick to our mission and primary goal: to be a high-quality service provider to our customers.
