Features
1.viewing from a distance
The resolution of an image is greatly influenced by pixel pitches. It's more suited for distant viewing the larger the pixel pitch. P10 leds, which have a 10mm pixel pitch, are hence ideal for long-distance viewing. The image quality will be flawless whether you are looking at the display up close or from a distance.
2.Dissipation of heat
The heat dissipation system for P10 outdoor waterproof led screen is good. As a result, the heat does not remain trapped, keeping the display from heating up. The longevity of equipment can be shortened by heat. These LEDs have a longer lifespan than those that heat up quickly because of their cooling system.
3.The P10 LED Display with strong contrast provides a sharp contrast. These LEDs produce images that are sharper and of a greater quality. The LED's ability to contrast various hues provides a high resolution visual experience. You won't have to strain your eyes to see the intricacies in the image because to the great contrast.
Paramter
|
Outdoor Fixed LED Screen Specification |
||||
|
Pixe Pictch |
4mm |
5mm |
6mm |
8mm |
|
Led encapsulation |
SMD1921 |
SMD2727 |
SMD2727 |
SMD2727/SMD3535 |
|
Scan Mode |
1/8 Scan |
1/8 Scan |
1/8 Scan |
1/4 Scan |
|
Pixe Per Sq.m |
62,500 Pixel |
40,000 Pixel |
27,777 Pixel |
15,625 Pixel |
|
Module Size(W*H) |
256*128mm |
320*160mm |
192*192mm |
320*320mm/320*160mm |
|

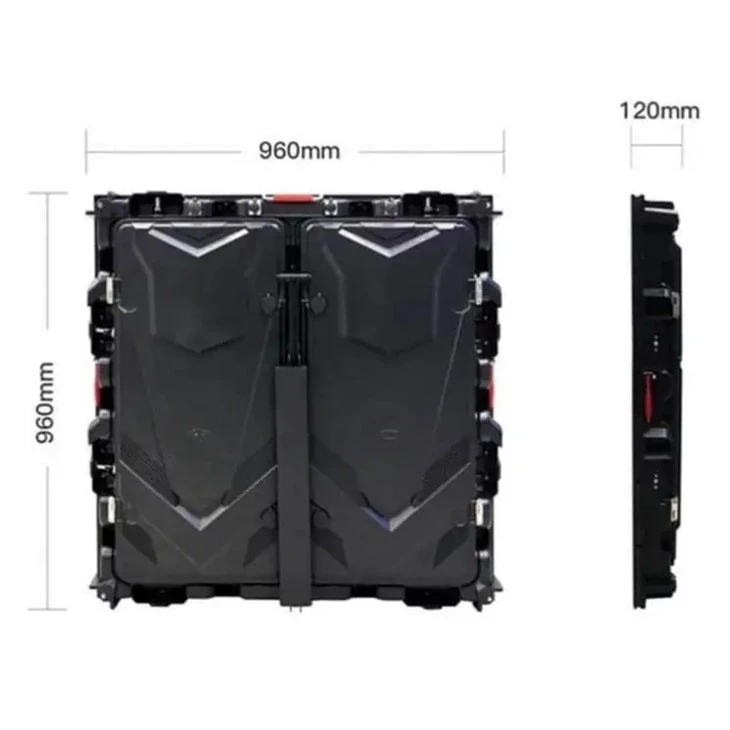

Cabinet Size(W*H*D) |
1024*768mm |
960*960mm |
960*960mm |
960*960mm |
|
Cabinet Weight |
45KG/Pieces |
40KG/Pieces |
40KG/Pieces |
45KG/Pieces |
|
Max Power Consumption |
900Watt/㎡ |
900Watt/㎡ |
900Watt/㎡ |
900Watt/㎡ |
|
Brightness(Nits/㎡) |
5000Nits |
5500Nits |
6000Nits |
6500Nits |
|
Maintenance methods |
Rear/Front Serviceable |
|||
|
Cabinet Material |
Steel/Aluminun Option |
|||
|
Refresh Rate |
1920hz-3840hz |
|||
|
Color temperature |
6500K ±500(Adjustable) |
|||
|
Grey Scale |
14-16bits |
|||
|
Average Power Consumption |
500Watt/㎡ |
|||
|
IP Protection |
IP65 Front/Rear |
|||
|
Operating Temperature |
-20°C to 50°C |
|||
|
Working Voltage |
100-240Volt(50-60hz) |
|||
One of China's top producers of LED displays, Shenzhen jiulong optoelectronics Co.Ltd is an expert in the design, development, manufacture, and promotion of premium LED displays. incorporated in 2012 and registered at 10 million RMB.
Our primary offerings include sports LED displays, small pixel pitch LED displays, indoor and outdoor advertising LED displays, rental LED displays, and more. We also gladly accept customized LED displays.
