Outdoor Fixed LED Screen Specification |
||||
|
Pixe Pictch |
4mm |
5mm |
6mm |
8mm |
|
Led encapsulation |
SMD1921 |
SMD2727 |
SMD2727 |
SMD2727/SMD3535 |
|
Scan Mode |
1/8 Scan |
1/8 Scan |
1/8 Scan |
1/4 Scan |
|
Pixe Per Sq.m |
62,500 Pixel |
40,000 Pixel |
27,777 Pixel |
15,625 Pixel |
|

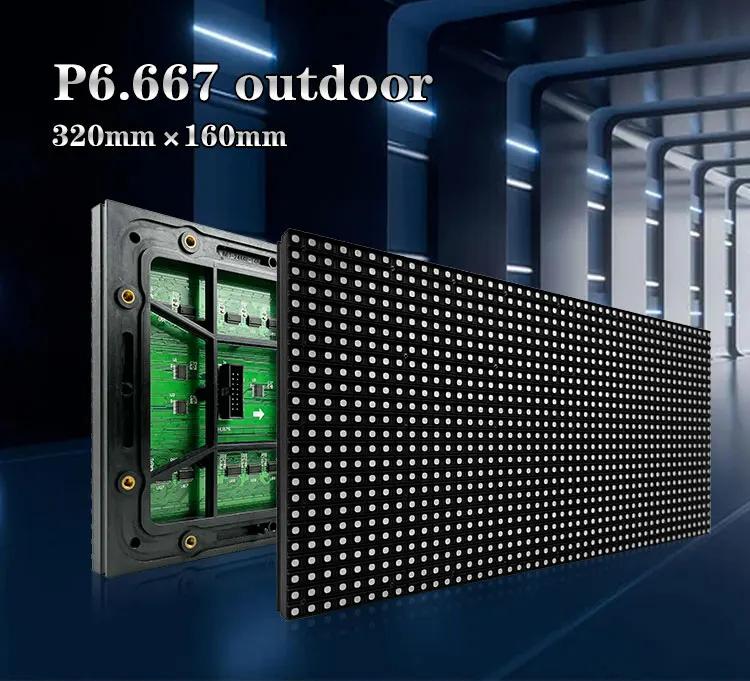

Module Size(W*H) |
256*128mm |
320*160mm |
192*192mm |
320*320mm/320*160mm |
|

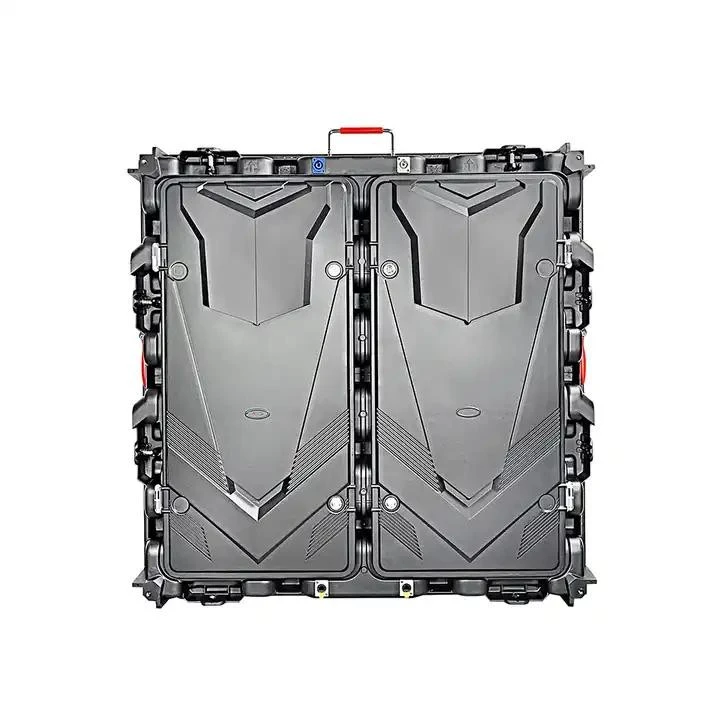

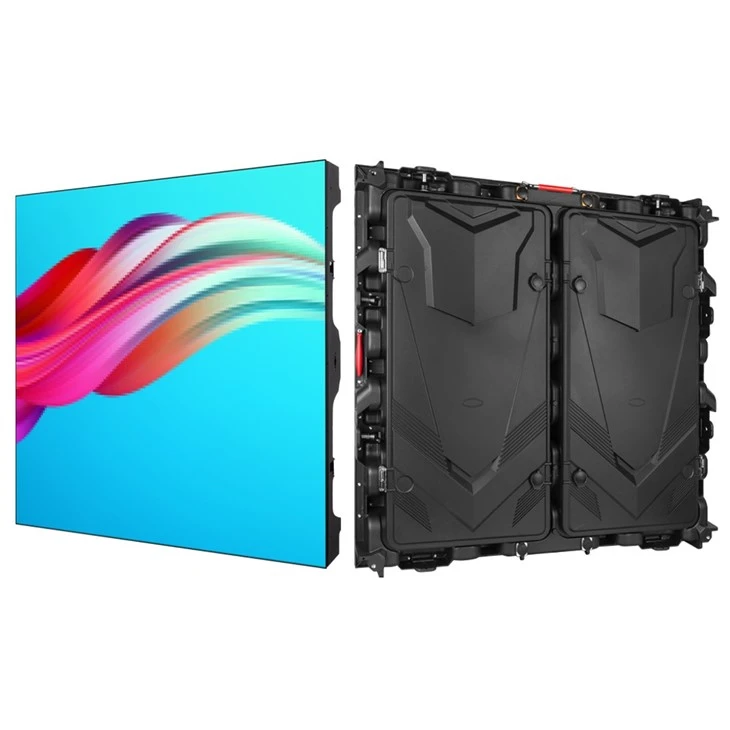

Cabinet Size(W*H*D) |
1024*768mm |
960*960mm |
960*960mm |
960*960mm |
|
Cabinet Weight |
45KG/Pieces |
40KG/Pieces |
40KG/Pieces |
45KG/Pieces |
|
Max Power Consumption |
900Watt/㎡ |
900Watt/㎡ |
900Watt/㎡ |
900Watt/㎡ |
|
Brightness(Nits/㎡) |
5000Nits |
5500Nits |
6000Nits |
6500Nits |
|
Maintenance methods |
Rear/Front Serviceable |
|||
|
Cabinet Material |
Steel/Aluminun Option |
|||
|
Refresh Rate |
1920hz-3840hz |
|||
|
Color temperature |
6500K ±500(Adjustable) |
|||
|
Grey Scale |
14-16bits |
|||
|
Average Power Consumption |
500Watt/㎡ |
|||
|
IP Protection |
IP65 Front/Rear |
|||
|
Operating Temperature |
-20°C to 50°C |
|||
|
Working Voltage |
100-240Volt(50-60hz) |
|||
Features
1. High brightness, it can be clearly seen even under strong light, and the display effect is good.
2. It has good waterproof performance, strong UV resistance, and a protection level of IP65 or above. It can fully adapt to various harsh outdoor environments and has the characteristics of anti-corrosion, waterproof, moisture-proof, lightning-proof, and shock-proof.
3. Seamless splicing and high refresh rate. Compared with LCD splicing, digital advertising signs outdoor do not have gaps and the display effect is more beautiful. Moreover, outdoor LED displays have a relatively high refresh frequency, and the entire picture is more delicate and the overall vision is better. The effect is more shocking and brilliant!
4.Long service life. Under appropriate current and voltage, the service life of general LEDs can reach 100,000 hours. Considering that digital advertising signs outdoor are used in different environments and are affected by environmental factors, the service life of the display is generally less than 10 hours, but it can still be achieved around 60,000 hours.

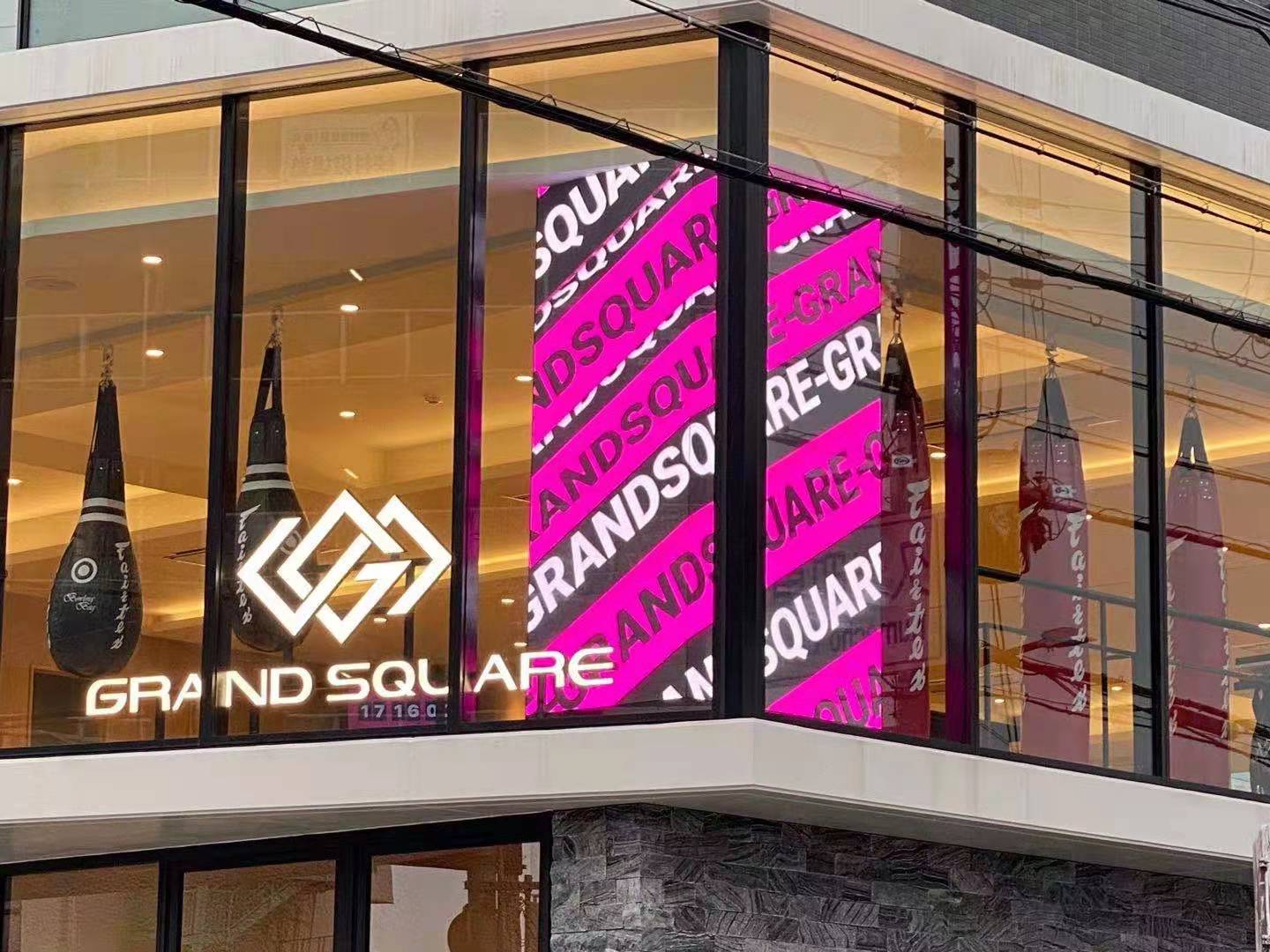

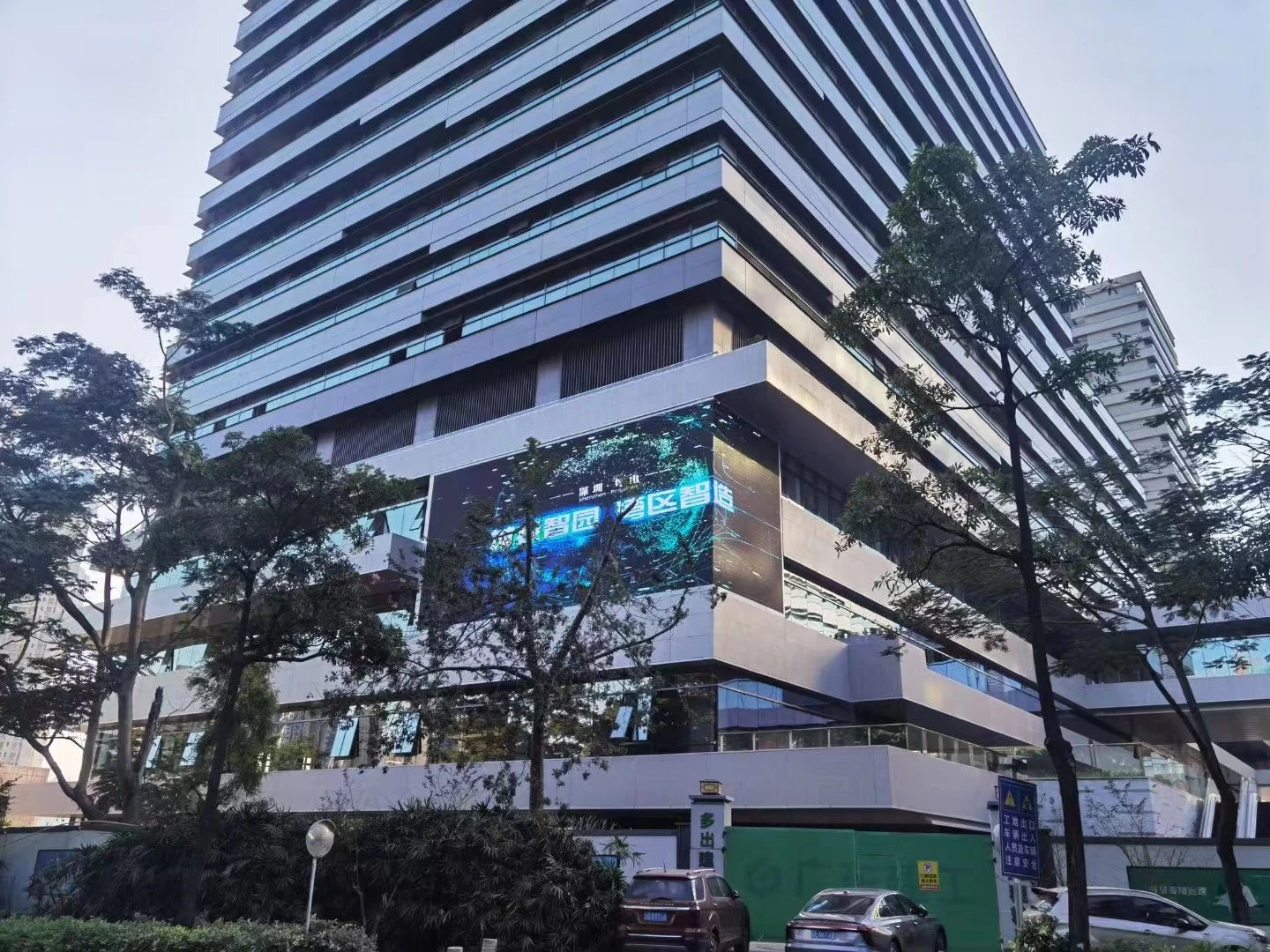

5.Application:Finance, taxation, industry and commerce, post and telecommunications, sports, advertising, factories and mining enterprises, transportation, education system, stations, docks, airports, shopping malls, hospitals, hotels, banks, securities shopping malls, construction shopping malls, auction houses, industrial enterprise management and other public place.
To guarantee the quality of LED display screens, we must create a thorough quality control plan prior to production. This plan should include the following: choosing raw materials, verifying product specifications and customer approval, and discussing specific production needs with the factory manager to guarantee that the LED display wall satisfies high standards.
