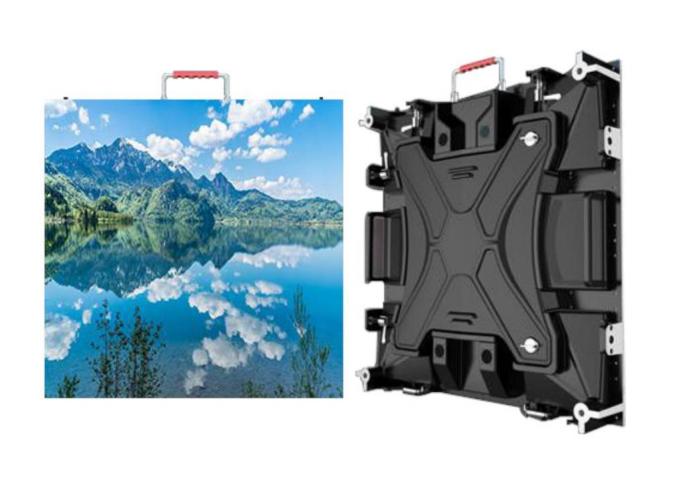

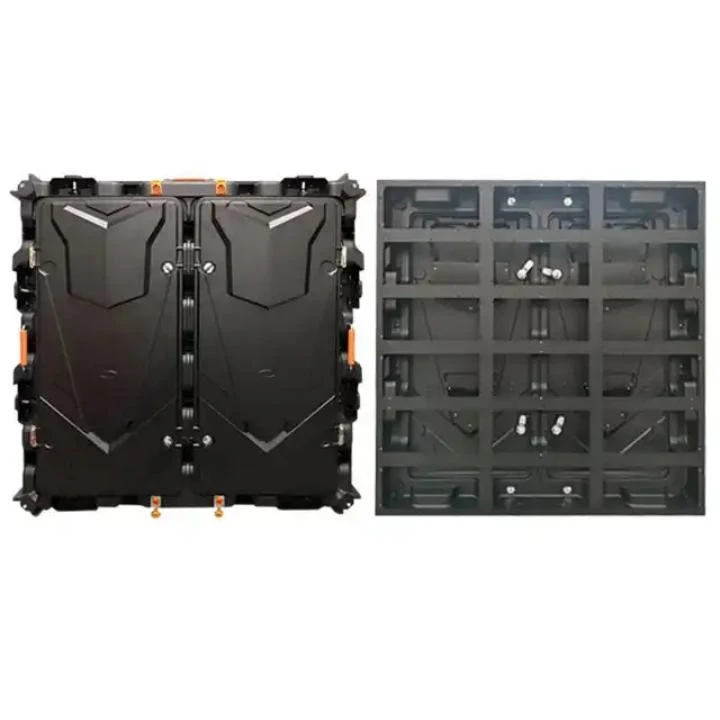

Light weight, reasonable structure, high precision, and can basically realize seamless splicing.Die-cast aluminum is formed by a mold at one time, and the cabinet has better flatness and can achieve IP65 protection level.
TECHNICAL PARAMETERS
|
Pixel Picth |
P6 |
P6.67 |
P8 |
P10 |
|
LED Configuration |
SMD 3 IN 1 |
SMD 3 IN 1 |
SMD 3 IN 1 |
SMD 3 IN 1 |
|
Pixel Density |
27778pixel/m2 |
22500pixel/m2 |
15625pixel/m2 |
10000pixel/m2 |
|
Module size |
320*160mm |
320*160mm |
320*160mm |
320*160mm |
|
Module Resolution |
32*32 dots |
48*24 dots |
40*20 dots |
32*16 dots |
|
Screen Size |
Customize |
Customize |
Customize |
Customize |
|

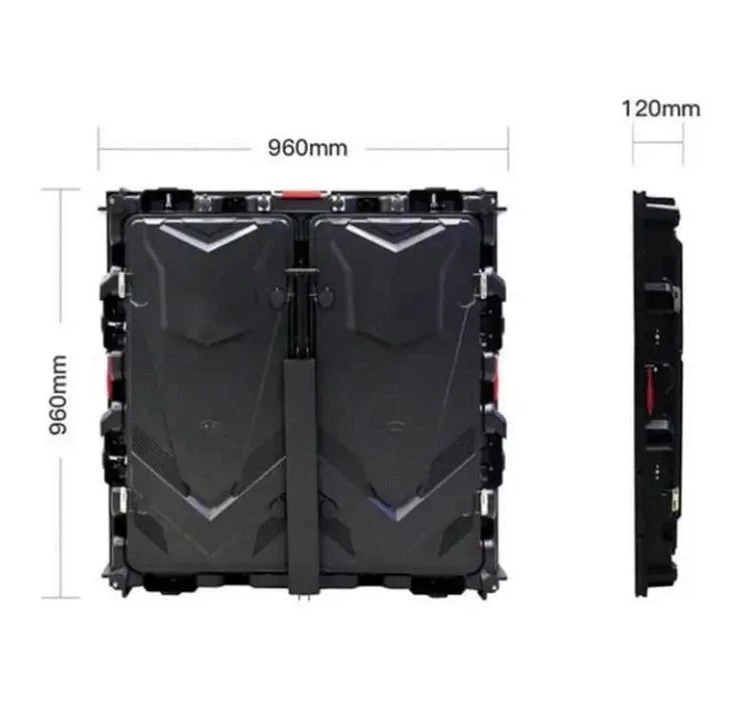

Cabinet Size |
960*960 mm |
960*960 mm |
960*960 mm |
960*960 mm |
|
Cabinet Resolution |
192*192 dots |
144*144 dots |
120*120 dots |
96*96 dots |
|
Cabinet Weight |
13kg |
13kg |
13kg |
13kg |
|
IP Rating |
IP65 |
IP65 |
IP65 |
IP65 |
|
Gray Scale |
16 bit |
16 bit |
16 bit |
16 bit |
|
Display Scale |
16.7M |
16.7M |
16.7M |
16.7M |
|
Max.Power Consumption |
900w/panel |
900w/panel |
900w/panel |
900w/panel |
|
Ave.Power Consumption |
260w/panel |
260w/panel |
260w/panel |
260w/panel |
|
Refresh Frequency |
38400Hz |
3840Hz |
3840Hz |
3840Hz |
|
Operating Power |
AC 110~220V |
AC 110~220V |
AC 110~220V |
AC 96~242V |
|
Operating Humidity |
10~90%RH |
10~90%RH |
10~90%RH |
10~90%RH |
|
Operating Life |
100,000Hours |
100,000Hours |
100,000Hours |
100,000Hours |
Features
1. Multiple Cabinet Installation Methods
Add flying bar, connectors, and fast lock for rental installation; support fixed installation for advertisement; add rubber sushion and bracket for perimeter installation LED screen

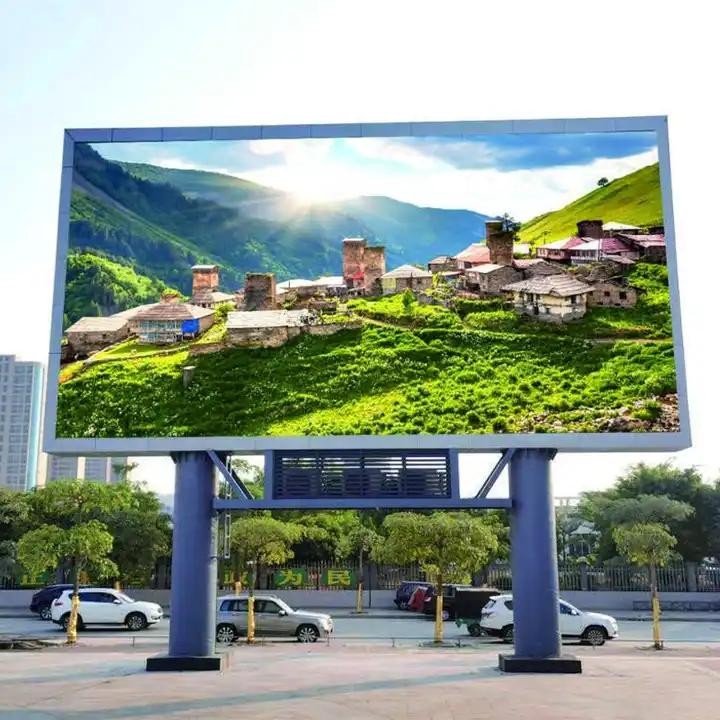

2. Outstanding dissipation of heat P6 led display screen for advertising outdoor
Excellent module and circuit protection

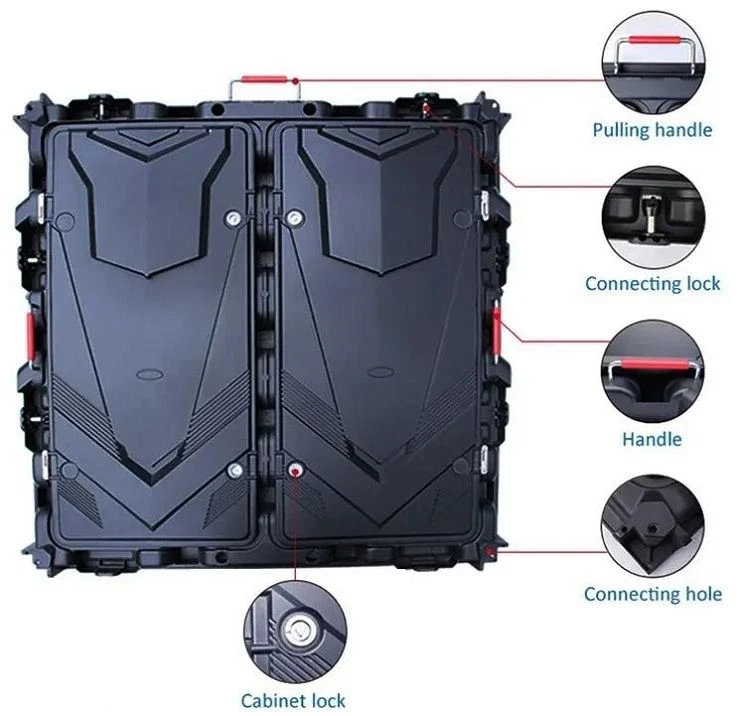

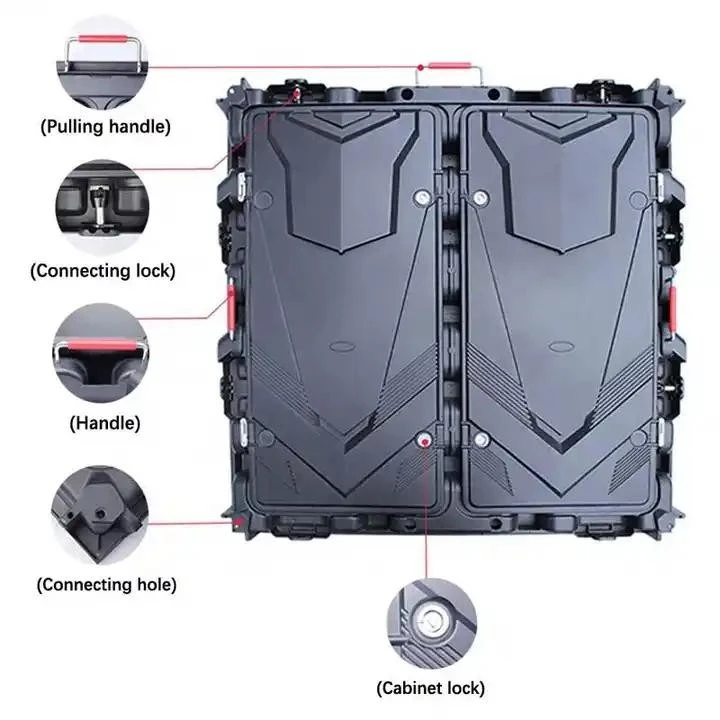

3. Smooth Splicing
Each cabinet has a unique lock that allows it to be precisely adjusted in six different directions.
4. Ultra Lightweight Cabinet: Made of aluminum alloy, this cabinet weighs only 5 kg.Viewers are presented with a completely novel sensory experience by the picture quality.
5. A range of control strategies are available.
6. Observing Angle: 140° Horizontal, 140° Vertical
7. High brightness and high gray scale
High-brush IC, such as MBI5153 and ICN2153 The screen functions without flickering or water ripples.
Product packaging
Our service
1.Answer your question within 12 business hours.
2.Special discount and security of sales area for our distributor.
3. R&D team with over 12 years of experience, OEM and ODM, and match solutions
4. An eight-year-experienced after-sales team can quickly resolve any issues you may have.
5.Warranty: 24 month quality guarantees. Just charge for the cost of the repair after a 24-month period. If there is a quality issue throughout the 24-month warranty period that is not caused by an error in operation, we shall be held accountable and replace any affected parts by air within three days. We may also provide you with replacement parts at cost after a 24-month period.If you have a special request, we can extend the warranty further for a small additional fee.
