Features
1.Lightweight Diecasting When compared to a steel or aluminum cabinet of the same size, the cabinet is lighter because to the magnesium alloy's density, which is two thirds alloy and one quarter steel.It is superior than stell and aluminum alloy in terms of its particular strength and stiffness.
2. incredibly thin
Magnesium alloy, which may be used to create high-end, thin products and thinner cabinet thickness, is easy to form.
3. Superior absorption of vibrations
4. Stable dimensions
5. Outstanding dissipation of heat
Fast cooling: superior heat dissipation capabilities safeguard the modular circuit
6. Superior thermal characteristics
Magnesium alloy offers superior radiation protection and anti-interference capacity as compared to other materials, ensuring optimal screen performance.
7. High degree of universality
Processable in accordance with the module drawing; suitable for outdoor and indoor application
Technical parameter
|
P4 outdoor led panel display |
|
|

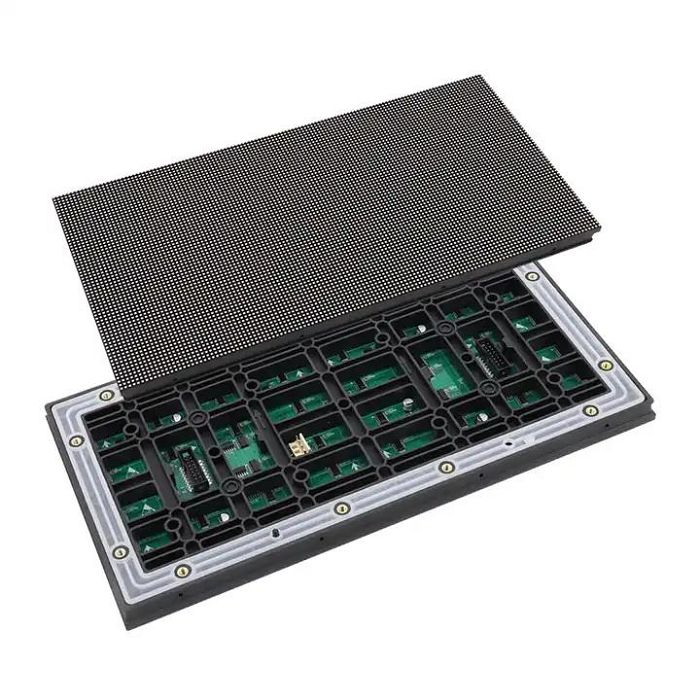

LED module Dimensions |
320mm(W)x160mm(H) |
|
Pixel Pitch |
4mm |
|
Pixel density |
625000/m2 |
|
Pixel configuration |
1R1G1B |
|
LED specification |
SMD1921 LED |
|
Pixel resolution |
80(W)x40(H) |
|
Average power |
40W |
|
Led module weight |
0.35Kg |
|
Humidity |
10%-95%RH |
|
Hub connecting |
HUB75 |
|
Best viewing angle |
Horizontal >170 Vertical>120 |
|
Best viewing distance |
5-30M |
|
Working temperature |
-20-+60 |
|
Panel power supply |
5V40A |
|
Input voltage |
220VAC/50HZ+_10% |
|
Max power |
<900W/M²/PANEL |
|
Average power |
350W/M²/PANEL |
|
Driving device |
MBI5124/16237Constant current driver |
|
Drive type |
1/10 Scanning |
|
Refresh frequency |
3840 HZ/S |
|
Display color |
16.7M |
|
Brightness |
5200-5800cd/M2 |
|
Life span |
100000Hours |
|
Communication distance |
<100M |
|
Warranty |
2 Years |
|
Certificates |
CE,RoHS,FCC |

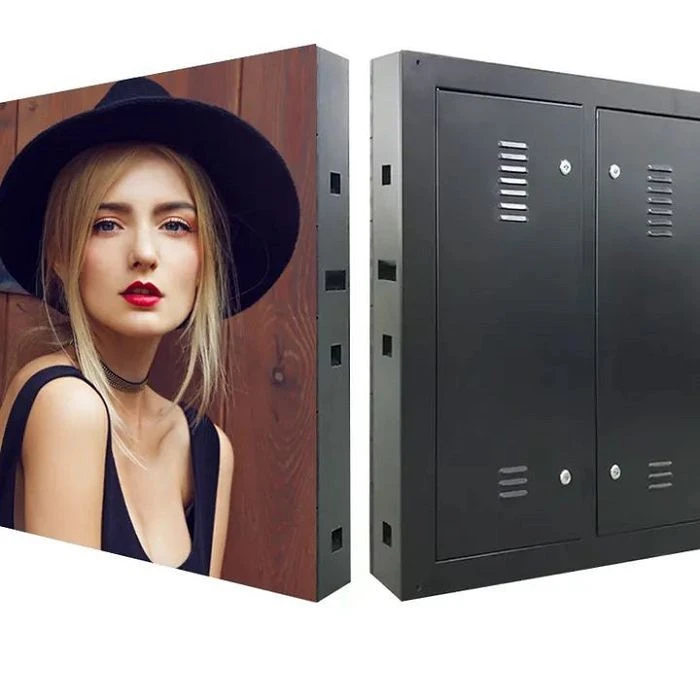

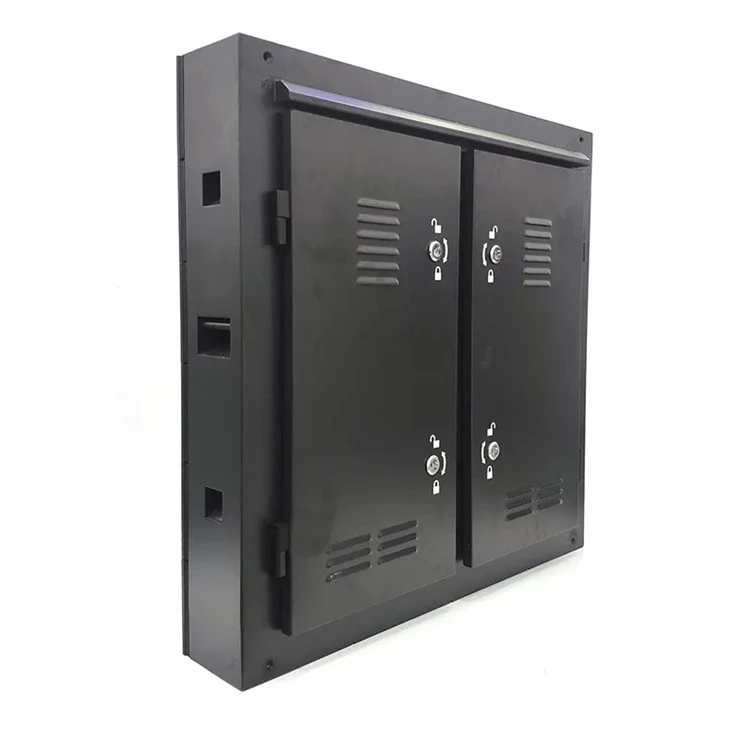

Maintaining our outdoor LED displays is made simple with easy access.Both the front and rear of the display are simple to maintain.Additionally, this design may contribute to installation space savings.This feature allows them to fit in any space.
There are the following available pixel pitches: P3.91, P4, P5.33, P6.67, P8, and P10.Panels typically measure 960 by 960 mm.
They can attract the interest of more potential customers with visually striking displays.
Your brand recognition will rise as a result.
With just one click, updating the material is very simple.
They make excellent advertising tools.
