Features
1.p3 outdoor led screen with an ultra-high pixel density that creates the illusion of a higher-definition picture;
2.Extremely economical; it meets your need for high-definition images while still being reasonably priced, significantly lowering your investment expenditures;
3. High efficiency and energy saving: Ultra-bright LEDs powered by low power consumption can save energy by more than 20% when used with Jiulong full-color LED display devices. Achieve an overall energy-saving effect by using circuits with PFC design, temperature control, display control, and brightness control technologies;
4.High degree of protection: a specially designed box that complies with IP protection guidelines and may be installed and used outside;
5.Standardized design: The design of cabinet, LED modules, and other components is standardized, and goods are compatible with one another to the maximum extent possible to achieve uniformity, which greatly facilitates production and subsequent maintenance

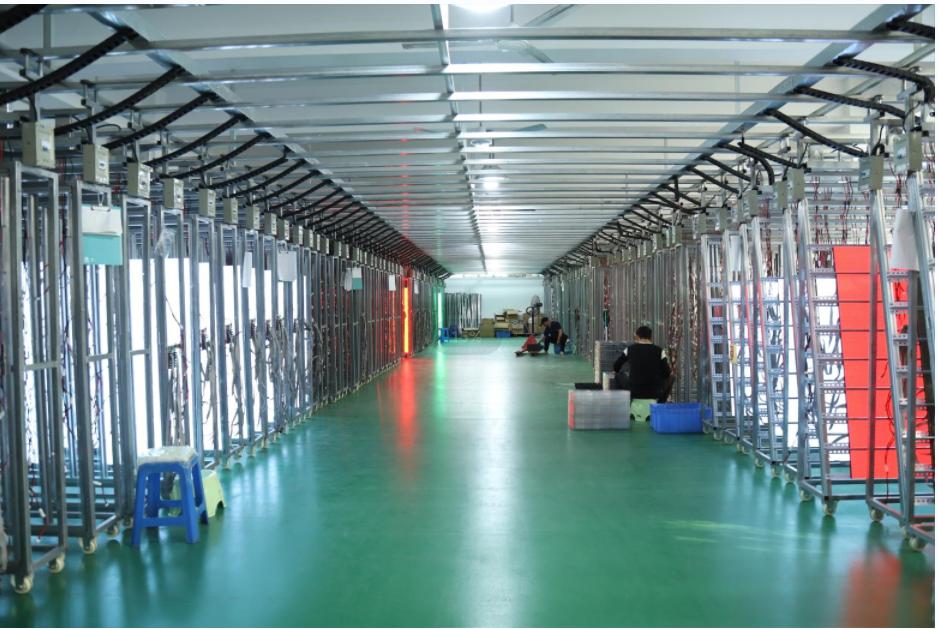

6.Large-scale production: Use large-scale production to boost output reliability and consistency while also increasing production efficiency;
7.Cluster control: It is simple to plan and win from a distance thanks to multi-screen centralized control and remote management;
8. High stability and reliability: The product's high stability and reliability are ensured by carefully chosen raw materials, innovative design solutions, and exacting production procedures, all of which benefit customers in the long run.
Technical parameter
|
p3 outdoor led screen |
|
|

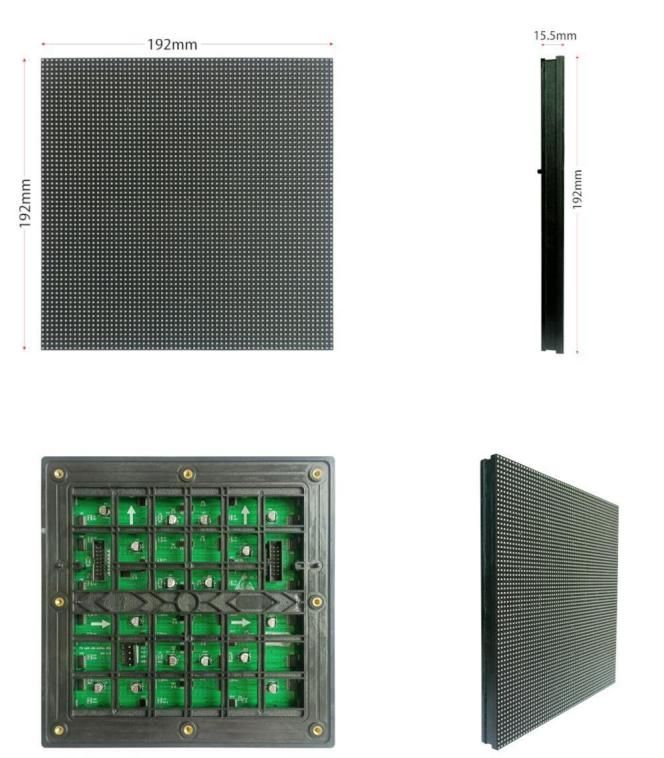

LED module Dimensions |
192mm(W)x192mm(H) |
|
Pixel Pitch |
3mm |
|
Pixel density |
111111/m2 |
|
Pixel configuration |
1R1G1B |
|
LED specification |
SMD1921 LED |
|
Pixel resolution |
64(W)x64(H) |
|
Average power |
35W |
|
Led module weight |
0.35Kg |
|
Humidity |
10%-95%RH |
|
Hub connecting |
HUB75 |
|
Best viewing angle |
Horizontal >170 Vertical>120 |
|
Best viewing distance |
5-30M |
|
Working temperature |
-20-+60 |
|
Panel power supply |
5V40A |
|
Input voltage |
220VAC/50HZ+_10% |
|
Max power |
<950W/M²/PANEL |
|
Average power |
320W/M²/PANEL |
|
Driving device |
MBI5124/16237Constant current driver |
|
Drive type |
1/16Scanning |
|
Refresh frequency |
960-1920HZ/S |
|
Display color |
16.7M |
|
Brightness |
5200-5800cd/M2 |
|
Life span |
100000Hours |
|
Communication distance |
<100M |
|
Warranty |
2 Years |
|
Certificates |
CE,RoHS,FCC |
The ideal way to promote your goods and services is via outdoor LED screens. We provide a range of outdoor LED screens, from little to large displays, to meet your demands. This page lists the various pixel pitch types, ranging from P2 to P10. Even in direct sunshine, they provide outstanding visibility. Additionally, they are resilient to all types of weather.
JiuLong outdoor LED panels are the ideal solution for brand promotion.
