P1.86 Indoor Digital Led Poster For Advertising

Digital led poster
Model Number:JL-PH1.86-172x86-43s
Module size:320x160MM
Physical Density:288906 dot/m2
Module Resolution:172dots(W)*86dots(H)
Scan mode:1/43scan
best viewing angle:H:140°;V:120°
Rate refresh:3840Hz
Brightness:700cd/㎡ balance

Send Inquiry

Description

Technical Parameters

Products Description

Technical Parameters

Pixel Pitch(mm)	1.86	2	2.5	3
Pixel Matrix Per Sq.m	289050	250000	160000	111111
Pixel Configuration	SMD1515	SMD1515	SMD2121	SMD2121
Brightness (nits)	900	900	900	900
Scan	1/43	1/40	1/32	1/32
Module Dimension	320x160mm	320x160mm	320x160mm	192x192mm
Cabinet Dimension	640mm*192mm	640mm*192mm	640mm*192mm	576mm*192mm
Cabinet material	Aluminum	Aluminum	Aluminum	Aluminum
Cabinet Weight	43kg	43kg	43kg	40kg
Max Power Consumption	800W/Set	800W/Set	800W/Set	800W/Set
Average Power Consumption	400W/Set	400W/Set	400W/Set	400W/Set
IP Rate	IP31
Refresh Rate (HZ)	3840HZ
Grey Scale (bit)	16bit
Viewing Angle (H/V)	160/140
Input Voltage (AC)	110V/240V

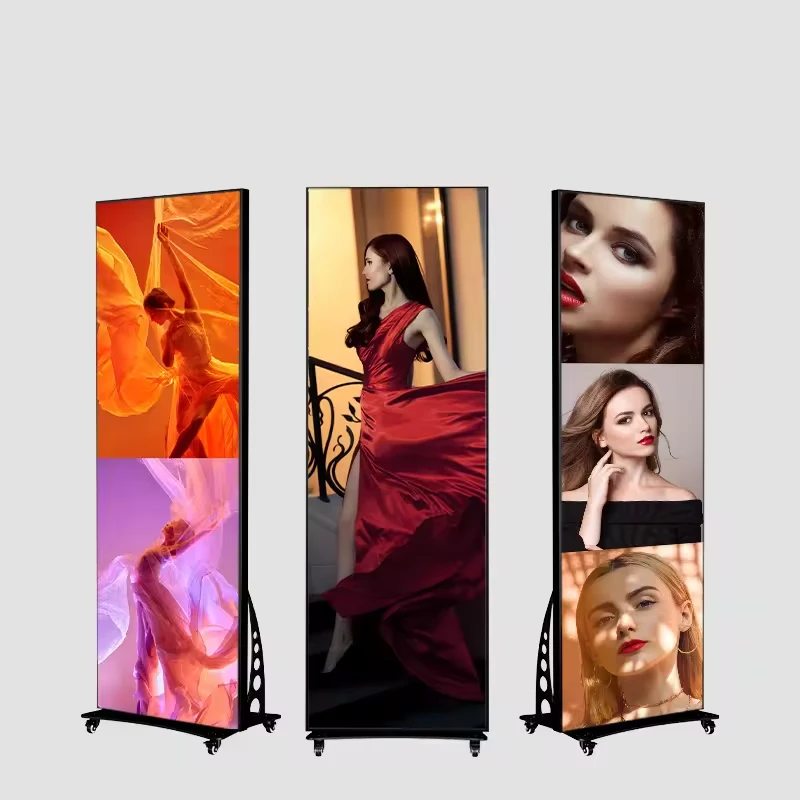

LED Digital Poster

FAQ

1.What is LED screen advertising?

LED advertising is a type of electronic advertising media that uses bright, high-definition images to display your static or video-based commercial. Excellent installations can be made for a range of digital pictures, including websites, streamed video, and static advertisements.

2.How do I install the LED Digital Poster?

The LED Digital Poster comes with a sturdy base with wheels attached for easy mobility and transportation throughout your workspace. The digital posters also include a mounting bracket that may be used to display your panels on a wall (screws not included). however, if you are using several linked devices, you will need to plug in each unit separately to the mains.

Q: 3.What is the LED screen P rating? How Do I Pick the Right Pixel Pitch for a Display on an LED Screen?

A: The P Rating quantifies the separation between the LED screen's image-displaying dots. Higher resolution, or a better image and a shorter minimum viewing distance requirement, is associated with lower P ratings.

Q: 4.A P2.9 LED screen: what is it?

A: One of the smallest pixel pitch type LED displays for stage use is the P2. 9 rental display, which has sophisticated display technology, high pixel resolution (112,896 dots/sqm), and delicate, high-definition picture quality for a more realistic and vibrant display impact.
