Technical parameters
|
Pitch (outdoor) |
P3 |
P4 |
P5 |
P6 |
P8 |
P10 |
|
Module size |
192*192MM |
320*160MM |
320*160MM |
192*192MM |
192*192MM |
320*160MM |
|
Physical Density |
111111dots/2 |
62500 dots/m2 |
40000 dots/m2 |
27778 dots/m2 |
15625 dots/m2 |
10000 dots/m2 |
|
Pixel configuration |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
Package mode |
SMD 3IN1-1415 |
SMD 3IN1-1921 |
SMD 3IN1 -2727 |
SMD 3IN1 -3535 |
SMD 3IN1 -3535 |
SMD 3IN1 -3535 |
|
Module Resolution |
64dots(W)*64dots(H) |
80dots(W)*40dots(H) |
64dots(W)*32dots(H) |
32dots(W)*32dots(H) |
40dots(W)*20dots(H) |
32dots(W)*16dots(H) |
|
Max Power |
26W |
40W |
40W |
30W |
35W |
45W |
|
Module thickness |
15.5MM |
15MM |
16MM |
16MM |
18MM |
18MM |
|
Module Weight |
330g |
348g |
348g |
320g |
470g |
460g |
|
Scan mode |
1/16 |
1/10 |
1/8 |
1/8 |
1/5 |
1/2 |
|
Cabinet size |
576*576MM |
640*640MM |
640*640MM |
576*576MM |
640*640MM |
960*960MM |
|
Rate refresh |
1920Hz |
1920Hz |
1920Hz |
1920Hz |
1920Hz |
1920Hz |
|
Brightness of white |
6000cd/㎡ |
6000cd/㎡ |
6000cd/㎡ |
6000cd/㎡ |
6000cd/㎡ |
6000cd/㎡ |
|
operating |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
Features

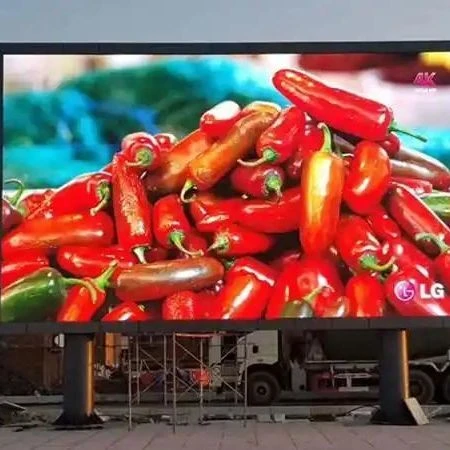

1.The huge outdoor LED display panels has a pixel pitch that is typically rather large and is divided up by numerous single LED displays. The most widely used specs are P6, P8, P10, P16, and so forth. Large pitches have a financial advantage over small-pitch LED displays. Moreover, since outside wide displays often have a viewing distance of 8 to 10 meters, or more, seeing the image from a distance won't appear "grainy" and will instead have crisp, high-quality visuals.

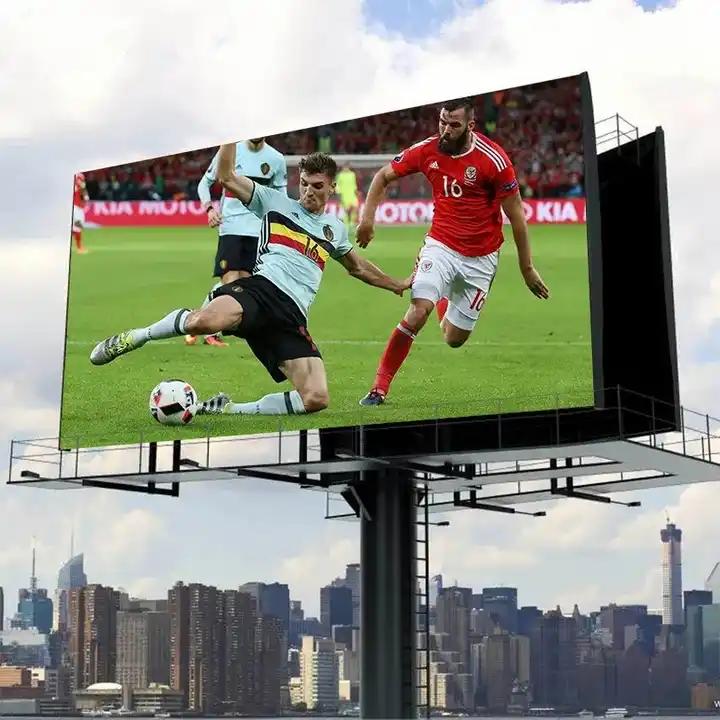

2.Broad publicity and a sizable viewership big outdoor LED display panels often have a big viewing angle, a huge screen, and are mounted in relatively high locations. Under typical conditions, the picture remains distinctly visible even when watching videos at a 140-degree horizontal angle, which is why the LED huge screen More people can be reached and a larger area can be covered by display content.
3.There is an automated brightness adjustment feature. The weather outside will have an impact on large-screen LED displays that are mounted outside. For instance, the brightness of an outdoor display panel varies depending on the weather. If the brightness of the screen cannot be automatically changed, the effect may change or even be significantly diminished.

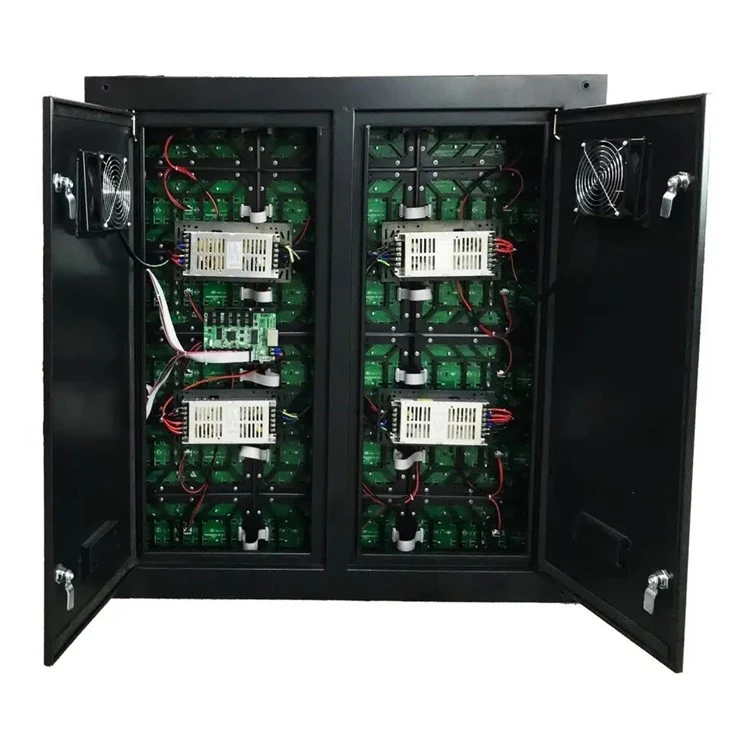

4.Ease of maintenance (maintenance is usually divided into two categories: front and after). huge LED displays are easy to maintain because installing an outside huge LED display can cost anywhere from hundreds of thousands to several million dollars. It is crucial to guarantee the display's long-term stable operation, hence it is very vital. Large outdoor LED displays can typically be kept in the rear, but certain displays can be kept in the front.
5.High protection level. The weather outside is erratic. There are regions with high temperatures and regions with a lot of wet days. To stop rainfall from getting on the screen, the outdoor large LED display's protection level must be higher than IP65. Considerations such as anti-static induction and lightning protection should be made during installation.
