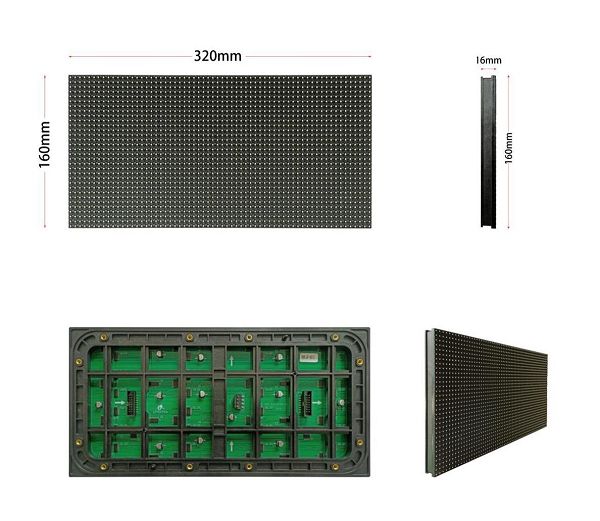

1.Led module size:320x160MM
2.Pixel pitch:PH5
3.Pixel configuration:40000dot/m2
4.Package:SMD 1921
5.Module resolution:64(W)x32(H)
6.Max power:40W
7.Module thickness:16MM
8.Module weight:348g

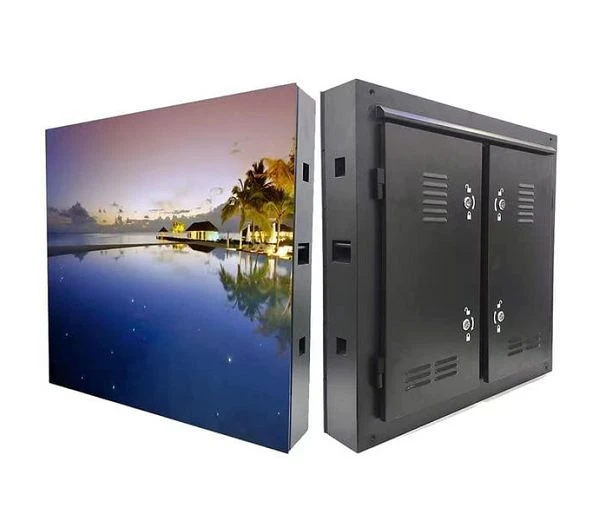

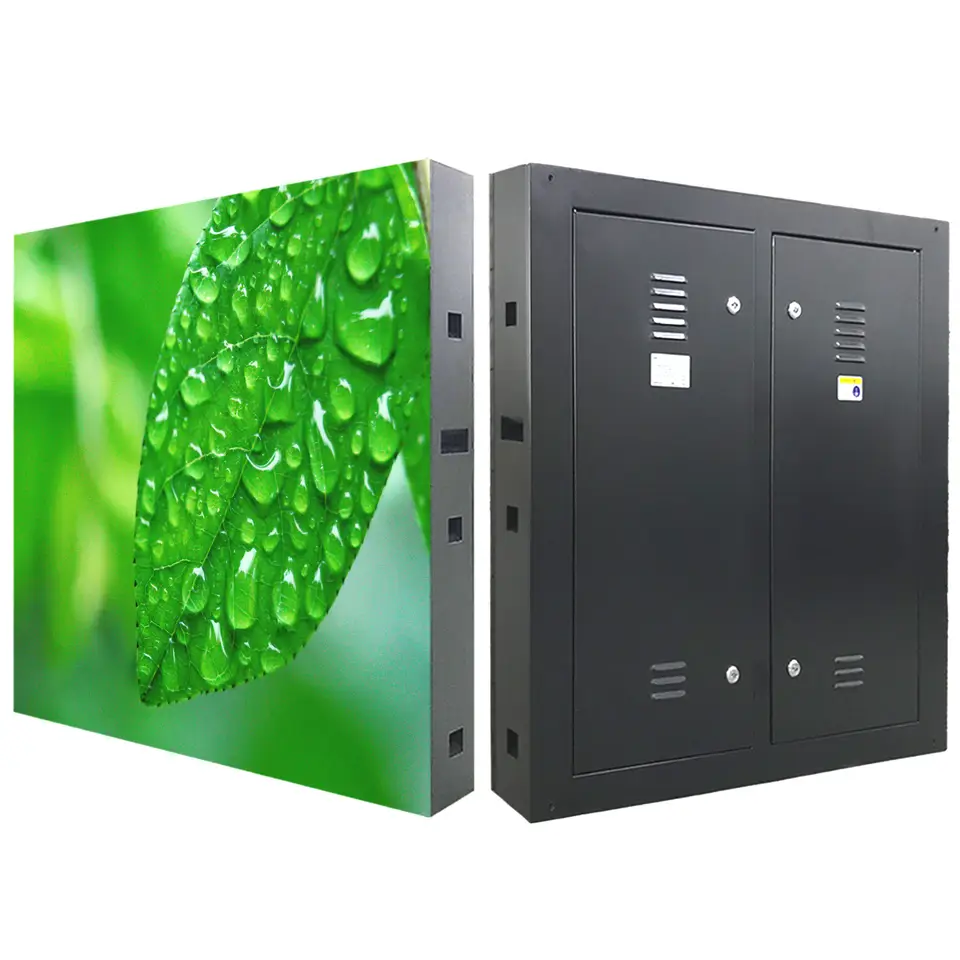

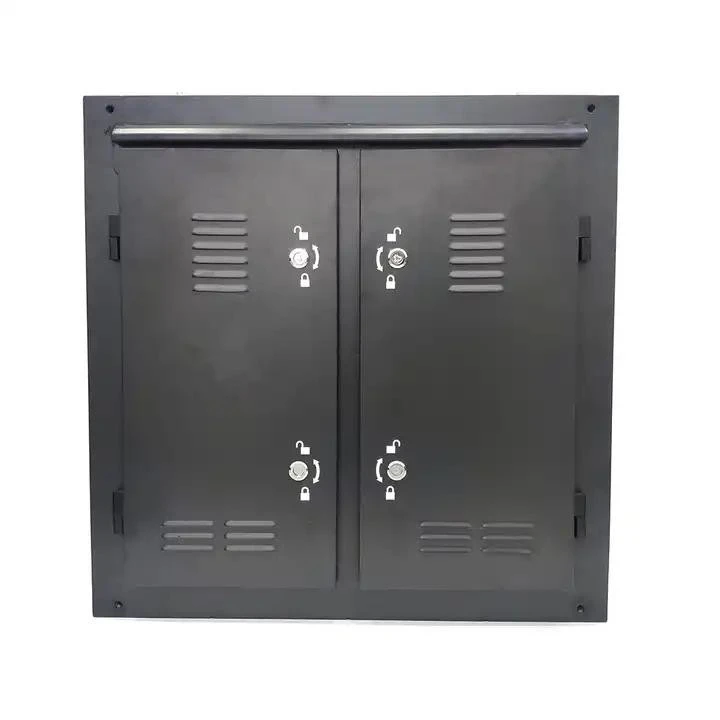

1.Cabinet size:960x960MM
2.Cabinet resolution:192(W)x192(H)
3.Material:Die-cast Aluminum
4.Scan mode:1/160scanDrive type:constant drive
5.Viewing angle:H:140°;V:120
6.Refresh rate:3840Hz
7.Average Power Consumption:260W/m2
8.Max.power consumption:910W/m2
Feartures

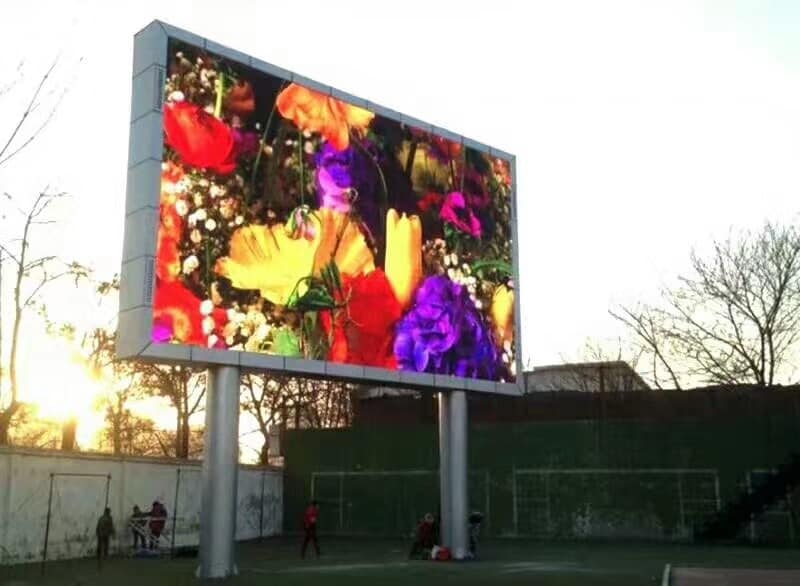

1. The PH5 Outdoor advertising LED display also has the characteristics of waterproof, dustproof, wind resistance, etc., and has strong visual impact: large-size, dynamic, sound and picture integrated Jiulong LED advertising can stimulate the audience's senses and effectively convey information. guide consumption.
2. PH5 Outdoor Advertising LED display can be played uninterrupted, and its information is conveyed around the clock. This feature makes it easier for the audience to see it, can better guide potential customer groups, and allows businesses to achieve better publicity effects with less cost.
3. The mask design is used to achieve zero reflection of the LED light and protect the display effect of the screen. Viewed from a distance, the information display will be very clear.
4. The brightness of the PH5 display can reach 5500cd/㎡, which can display clearly even in outdoor environments with strong sunlight.
5. Super long life: The life of LED lamp beads can reach 100,000 hours. High-quality light-emitting components are the core material of the display screen, and the circuit board design is optimized to fundamentally ensure the service life of the product.
6. Energy saving and environmental protection: The luminescent material of the PH4LED display itself is an energy-saving product. It is equipped with a dedicated constant current drive energy-saving IC and a high conversion rate drive power supply, and the brightness can be automatically adjusted.
7. Good viewing angle: It has a large viewing angle both horizontally and vertically, which is suitable for environments with wide horizontal distribution and large height differences.
8. Work around the clock: realistic colors, high refresh frequency, anti-static, dust-proof, good heat dissipation, and high cost performance.
9. Outdoor Advertising LED display can use live broadcast technology to broadcast programs to more audiences in a real and timely manner. Including special topics, columns, variety shows, animations, radio dramas, TV series, etc., the content is rich and avoids the contact barriers caused by the conscious and active avoidance of advertising audiences. Research shows that the objection rate of outdoor LED display advertisements is much lower than the objection rate of TV advertisements.
10. Multiple control methods: Equipped with different control systems, it can realize synchronous control, asynchronous control, wireless control, network control and remote control.
11. Convenient maintenance: Modular design makes maintenance and spare parts replacement convenient and quick.
