Technical Parameter
|
Pixel Pitch |
P1.25 |
|
Physical density(Dot/sqm) |
640000 |
|
Module size(mm) |
300X168.75 |
|
Panel Dimension (WXHXD/mm) |
600X337.5X27.5 |
|
Panel Resolution |
480X270 |
|
Module QTY(WXH) |
2X2 |
|
Panel weight(kg) |
4.5 |
|
Maintenance Mode |
Front maintenance |
|
Cabinet Material |
Die-casting aluminum |
|
Brightness Carlibration |
have |
|
Brightness(Nits) |
≥600 |
|
Color temperature(K) |
1000-18500 Optional |
|
Viewing angle(V/H) |
170°/170° |
|
Brightness/Color uniformity |
≥99.8% |
|
Contrast ratio |
10000 : 1 |
|
Frame frequency |
50/60 |
|
Drive mode |
1/45 scan |
|
Grey level |
16bit |
|
Refresh rate(Hz) |
3840 |
|
Max. power consumption(W/sqm) |
420 |
|
Avg. power consumption(W/sqm) |
100 |
|
Protection level |
IP31 |
|
Power input |
AC90-264V,47-63Hz |
|
Wroking temperature/humidity(℃/RH) |
-20~60℃/10%~85% |
|
Storage temperature/humidity(℃/RH) |
-20~60℃/10%~85% |
Features
1.HARDWARE OCCUPATION
The display quality is enhanced by seamless design and high precision stitching.
Front access maintenance, with magnets fixed to Die-casting aluminium cabinet.
2.permanent installation that is fixed.
High degree of modularization and ease of repair Simply take off the damaged or malfunctioning LED from each module individually, leaving the cabinet and control box in place.
3.SIZE OF MODULE
Flexibility increases with module size; flexibility decreases with bigger module size and pricing decreases accordingly.
4.PERCEPTUAL DISTANCE
Find the closest viewing distance for everyone. The pixel dot spacing decreases with decreasing distance, resulting in a higher cost and more LEDs on a given module.
5.REFRESH RATE (FRIENDLY VIDEO)
Perfect display performance requires a high refresh rate of up to 3840Hz for small pixel pitch indoor LED modules that are flicker-free and grain-free.
6.BRILLIANCE
LED module for indoor use, often brighter than 800cd/sqm. Use high brightness LEDs with a maximum brightness of 1200cd/sqm to 3000cd/sqm (optional) if the installation area is brightly lit.

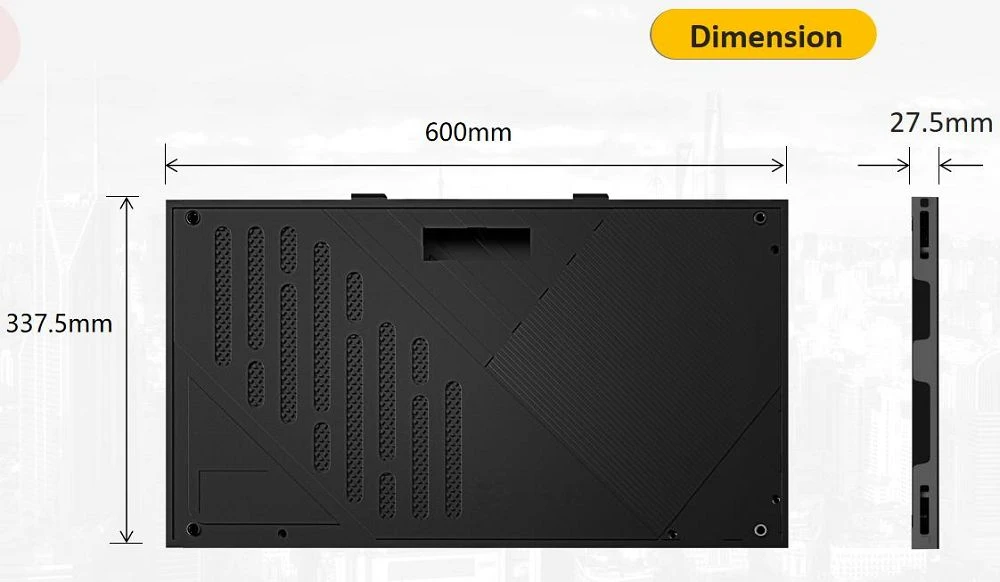

Cabinet size 600x337.5

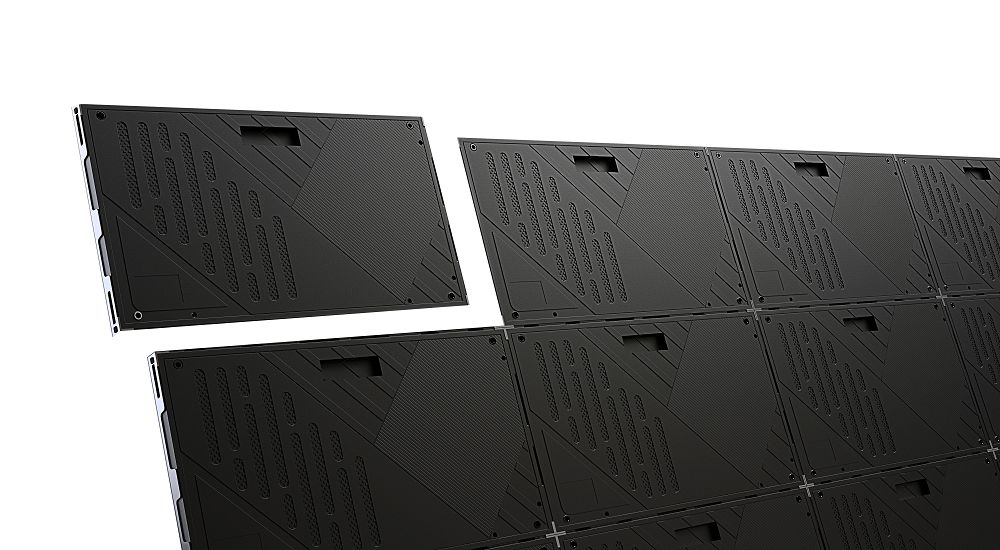

Seamless Splicing

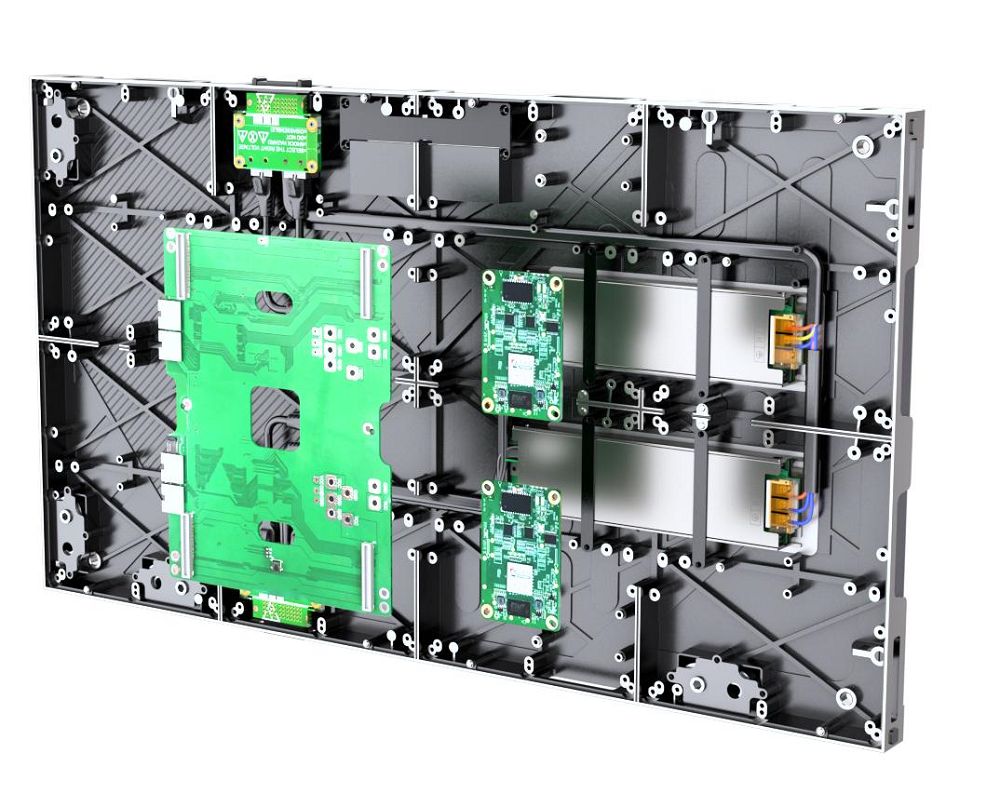

Die-casting Aluminium Cabinet structure with CNC high-precision processing
(Flatness of Cabinet≤0.1mm)
Screw less design for faster and more secure installation
Super silent fan less design
