Features
1.Greater brightness than an LCD display
Refresh rate exceeding 2880 Hz; high brightness of 1200+ nits; viewing angles of H160° and V160

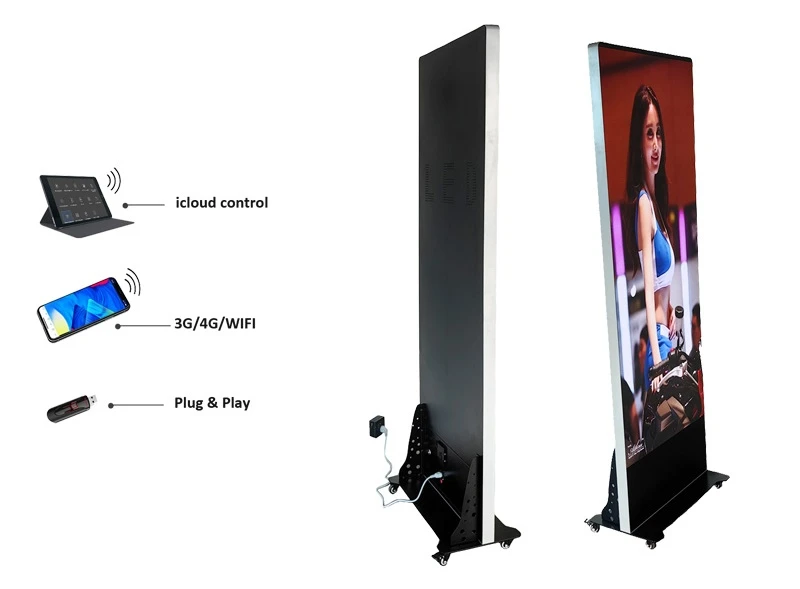

2.The smart remote control LED poster display is compatible with both iOS and Android and can be operated by a computer, smartphone, wifi, USB, and other means.
3.LED posters are movable and can stand on the ground or on wheels. Furthermore, it can be mounted on a wall or hung from a ceiling.
4.front entry
You'll adore how quickly and easily panel module replacements and service can be completed from the front with simply a handle magnet.
5.shrewd administration
With the pre-integrated software for the LED poster, you may connect to it over RJ45, WiFi, 3G, USB, and HDML from a single location with a PC or Android smartphones. This makes recognizing your display and adjusting brightness and contrast very simple. Use your phone, tablet, or laptop to play material straight from the device. Use the internet to centrally manage and control video.
Technical parameter
|
Spec |
Pitch 1.8mm |
Pitch 2mm |
Pitch 2.5mm |
Pitch 3mm |
|

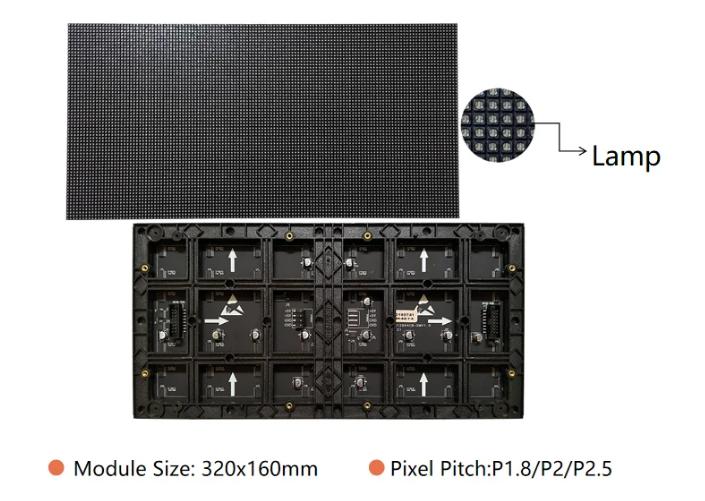

Module Size |
320mm x 160mm |
320mm x 160mm |
320mm x 160mm |
320mm x 160mm |
|
Module Size in Inches |
12,6in x 6,3in |
12,6in x 6,3in |
12,6in x 6,3in |
12,6in x 6,3in |
|
Panel Resolution(dots) |
172 x 86 |
160 x 80 |
128 x 64 |
104 x 52 |
|
Screen Size |
640*1920*50mm |
640*1920*50mm |
640*1920*50mm |
640*1920*50mm |
|
Panel Weight |
43 kgs |
43kgs |
41 kgs |
40kgs |
|
Driver IC |
MBI/ICN |
MBI/ICN |
MBI/ICN |
MBI/ICN |
|
Color Grayscale (Bit) |
16 Bit |
16 Bit |
16 Bit |
16 Bit |
|
LED Configuration |
SMD1010 |
SMD1212 |
SMD1515 |
SMD2121 |
|
Viewing Angle Degree |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
|
Brighntess(Nits) |
1000 |
1000 |
1200 |
1200 |
|
Scanning |
1/43 |
1/40 |
1/32 |
1/26 |
|
Transmission Distance |
CAT5/130m/426ft |
CAT5/130m/426ft |
CAT5/130m/426ft |
CAT5/130m/426ft |
|
AC Input Frequency(Hz) |
60 |
60 |
60 |
60 |
|
Refresh Rate(Hz) |
3840 |
3840 |
3840 |
3840 |
|
IP Rate |
IP33 |
IP33 |
IP33 |
IP33 |
|
Maxium Power per Panel |
720W |
720W |
720W |
720W |
|
Average Power per Panel |
220W |
220W |
220W |
220W |
|
Lifetime Value |
100000 Hours |
100000 Hours |
100000 Hours |
100000 Hours |
|
Operating Temperature |
-40°C~+60°C |
-40°C~+60°C |
-40°C~+60°C |
-40°C~+60°C |
|
Operating Humidity |
10~90%RH |
10~90%RH |
10~90%RH |
10~90%RH |
|
Communications |
WiFi/Lan/USB |
WiFi/Lan/USB |
WiFi/Lan/USB |
WiFi/Lan/USB |
|
Maintenance |
Front&Back |
Front&Back |
Front&Back |
Front&Back |
