Products Description

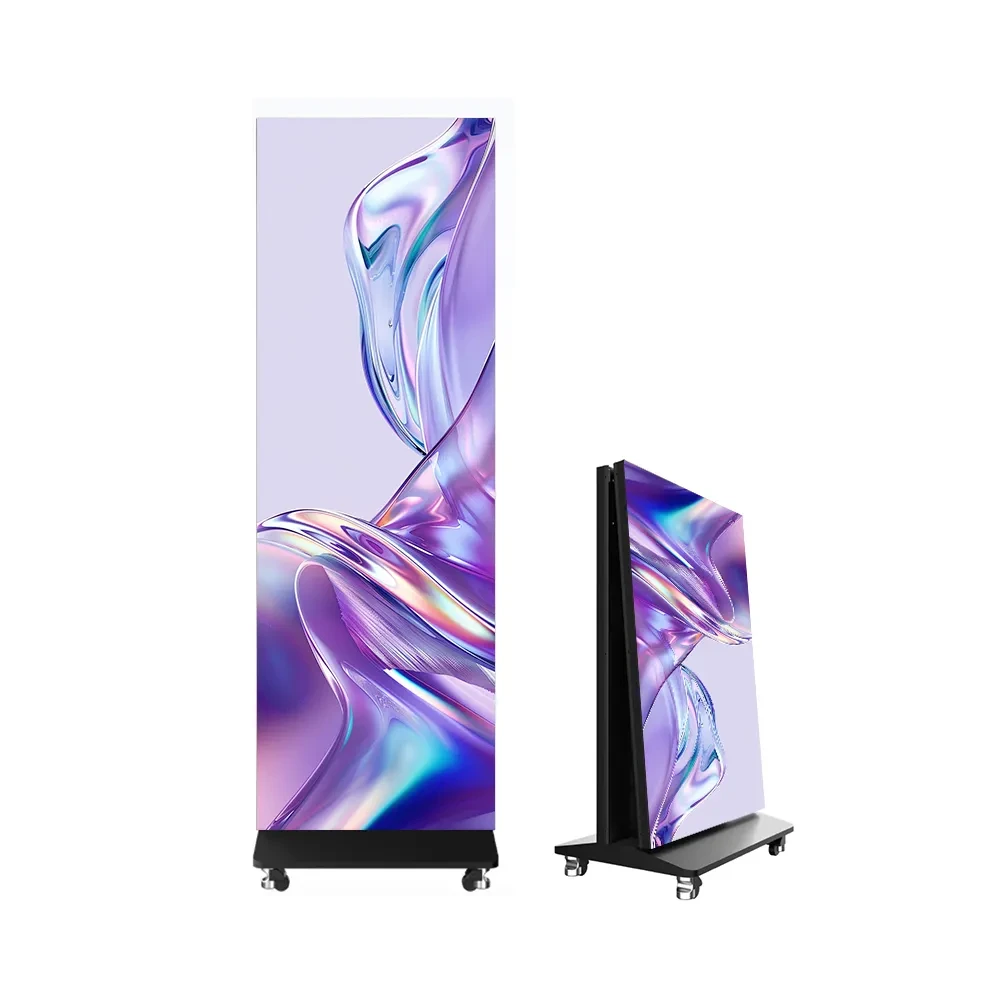

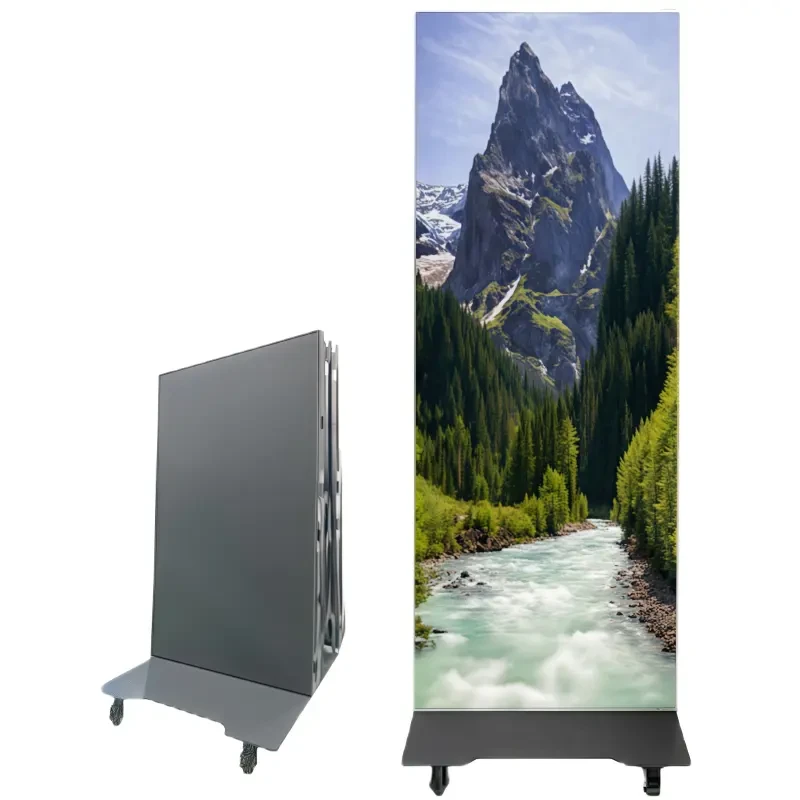

Foldable LED Poster Display
High-tech complete solution customization

Features:

1.NEW SAIING HD LED Foldable LED Poster Display

High-defnition display brings a more stunning visual experience.

2.PORTABI CARRIAGE AND EASY INSTALLATON

Supports folding, small size, easy storage, convenient transportation

3.NO INSTAILA'TON REQUIRED READY 'TO USE WHEN POWERED ON
Finished product delivery ho need forinstalland debug.professional technicians toplug and play

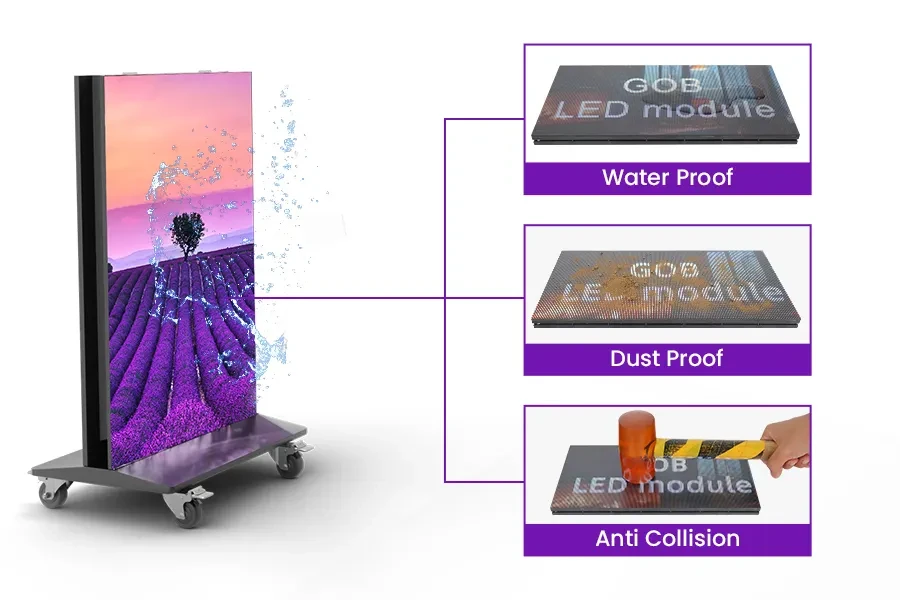

4.ADOPTING "THE "FLOOR "TILE GRADE GOB PROCISS'
Surface splash proof, scratch proof, collision proof, moisture-proof, and better stability

LED display

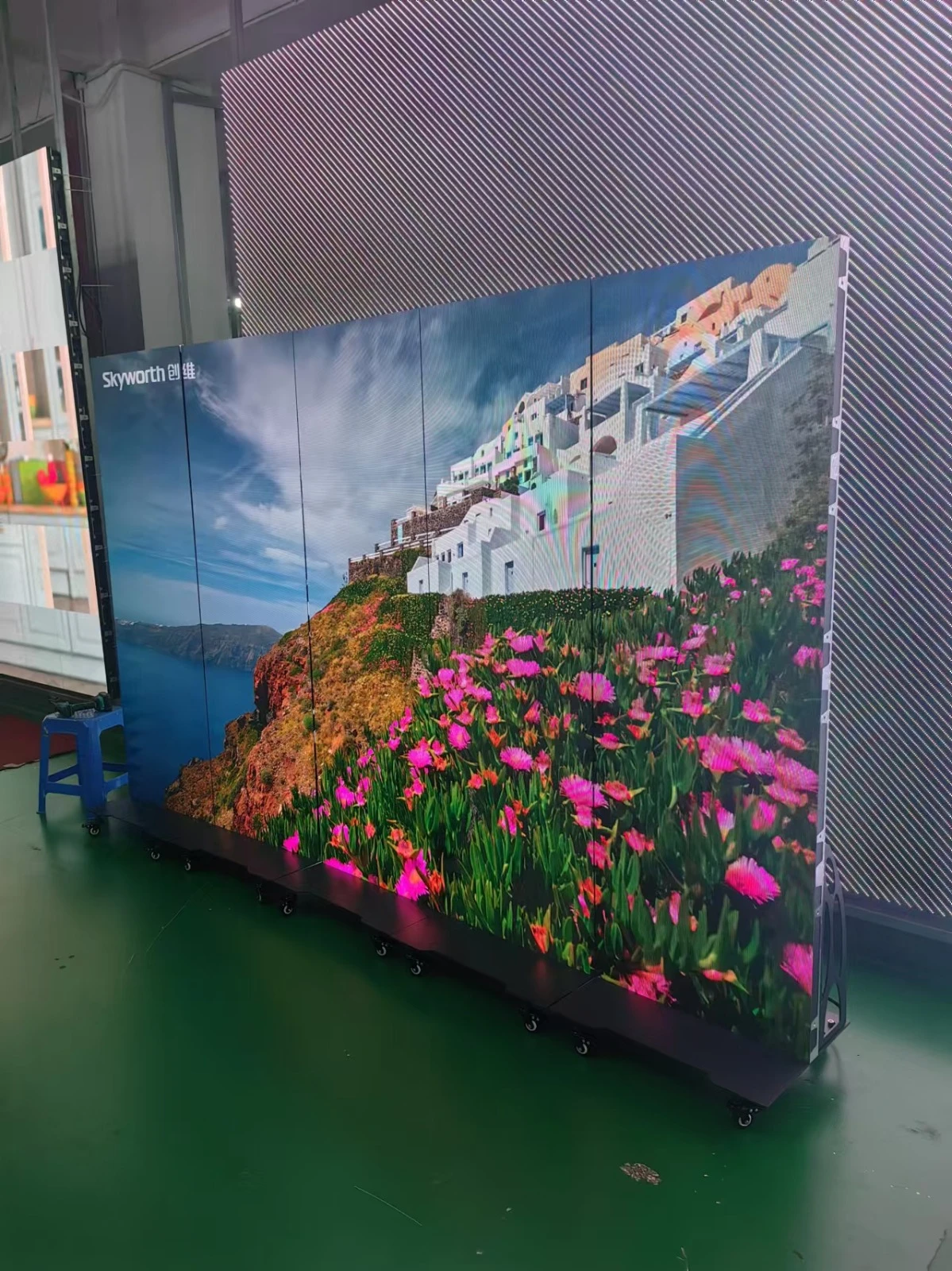

5.SUPPOR'' SEAMLISS SPIICING OF MUlTPLE UNIS
It can be used as a single device and also supports seamless splicing of multiple devices into alarge screen, with a wider range of application scenarios

LED poster panel

Hot Tags: foldable led poster display, China foldable led poster display manufacturers, suppliers, factory, electronic reader board signs, led matrix panel, led video wall for advertising, Flexible Module Indoor LED Display For Advertising, outdoor led digital signage, COB HD LED Video Wall

Products Parameter

Pixel Pitch	P1.25	P1.538	P1.86	P2.5
LED Configuration	SMD1010	SMD1212	SMD1515	SMD2121
Pixel Density	640,000 dots/㎡	422,750 dots/㎡	284,444 dots/㎡	160,000 dots/㎡
Module size	320*160mm	320*160mm	320*160mm	320*160mm
Module resolution	256*128dot	208*104dot	172*86dot	128*64dot
Cabinet Size	2050*648mm	2050*648mm	2050*648mm	2050*648mm
Cabinet resolution	512*1536dot	416*1248dot	344*1032dot	256*768dot
Cabinet weight	43kg	43kg	43kg	43kg
Brightness level	>600CD/㎡	>600CD/㎡	>600CD/㎡	>600CD/㎡
Viewing Angle (HN)	160°/160°	160°/160°	160°/160°	160°/160°
View Distance	>1m	>2m	>3m	>5m
Gray Scale	16bit	16bit	16bit	16bit
Color Variety	16.7 M	16.7 M	16.7 M	16.7 M
Brightness adjustment	0-100 levels	0-100 levels	0-100 levels	0-100 levels
Max.Power Consumption	360W/㎡	360W/㎡	360W/㎡	360W/㎡
Ave.Power Consumption	120W/㎡	120W/㎡	120W/㎡	120W/㎡
Scan by Drive Mode	1/32S	1/32S	1/32S	1/32S
Refresh Frequency	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ
Support signal input type	Network cable, USB, cell phonewifi Wireless 4G	Network cable, USB, cell phonewifi Wireless 4G	Network cable, USB, cell phonewifi Wireless 4G	Network cable, USB, cell phonewifi Wireless 4G
Enter Operation Power	AC100~240 50/60HZ	AC100~240 50/60HZ	AC100~240 50/60HZ	AC100~240 50/60HZ
Operating Temperature	- 20 ℃ ~ + 50 ℃	- 20 ℃ ~ + 50 ℃	- 20 ℃ ~ + 50 ℃	- 20 ℃ ~ + 50 ℃
Operating humidity	10~95% RH	10~95% RH	10~95% RH	10~95% RH
