Technical parameter
|
Item |
P1.25 |
P1.56 |
P1.667 |
P1.86 |
P1.875 |
|
Pixel Pitch |
1.25mm |
1.56mm |
1.667mm |
1.86mm |
1.875mm |
|
Modules size |
320x160mm |
200x150mm |
200x150mm |
320x160mm |
240x120mm |
|
Pixel Density |
640000dots/sqm |
410913dots/sqm |
359856dots/sqm |
289050dots/sqm |
284444 dots/sqm |
|
Scan mode |
1/64 Scan |
1/52 Scan |
1/45Scan |
1/43 Scan |
1/32 Scan |
|
Best Viewing Distance |
1-50m |
1-50m |
1-50m |
1-50m |
1-50m |
|
Best Viewing Angle |
Horizontal: 120° Vertical: 120° |
Horizontal: 120° Vertical: 120° |
Horizontal: 120° Vertical: 120° |
Horizontal: 120° Vertical: 120° |
Horizontal: 120° Vertical: 120° |
|
Avergage Power Consumption |
300W/sqm |
300W/sqm |
300W/sqm |
300W/sqm |
300W/sqm |
|
Working Temperature |
0°C~+50°C |
0°C~+50°C |
0°C~+50°C |
0°C~+50°C |
0°C~+50°C |
|
Refresh Rate |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
|
Control System |
Synchronous control system |
Synchronous control system |
Synchronous control system |
Synchronous control system |
Synchronous control system |
|
Life Span |
100.000 Hours |
100.000 Hours |
100.000 Hours |
100.000 Hours |
100.000 Hours |
Led module
LED Cabinet(can be customized)
Features
1.Permit intricate and imaginative display forms to enhance visual impact.
2.Direct LED display screen assembly is made possible by its simple and time-saving operation.
3. Outstanding visual performance with a high contrast ratio, wide grayscale, and improved color consistency.
3.Supporting dual services and magnet connections, easy to install and maintain.
4.The absence of a metal frame lowers the weight of the LED cabinet, saving clients money on transportation and storage space.
5.Every LED cabinet we offer to you is guaranteed to function steadily thanks to our stringent quality control procedures, 72-hour age test, and expert aging workshop.
7. Top-notch parts, such as the well-known power supply worldwide, the MBI5124 driving IC, NationStar and Epistar LEDs, and so forth.Stable operation and a high refresh rate are guaranteed.
8. Conserving money.Because of their lightweight construction, flight cases can hold up to 20 sq meters, saving you money on both labor and shipment.
Additionally, because of their multifunctionality and durability, LED displays are more resilient than traditional displays, which helps you save money on storage and maintenance.

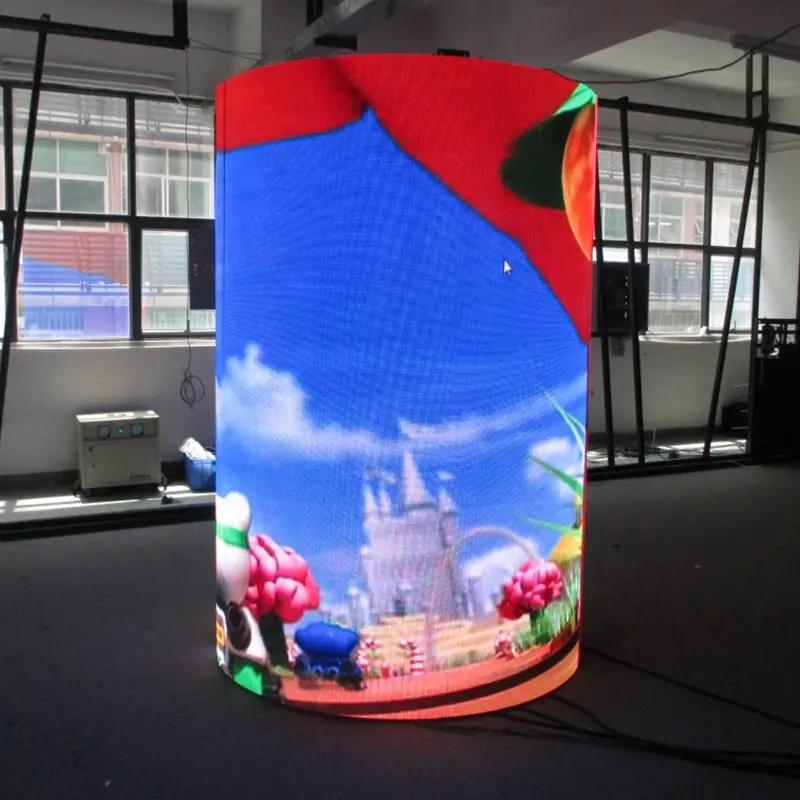

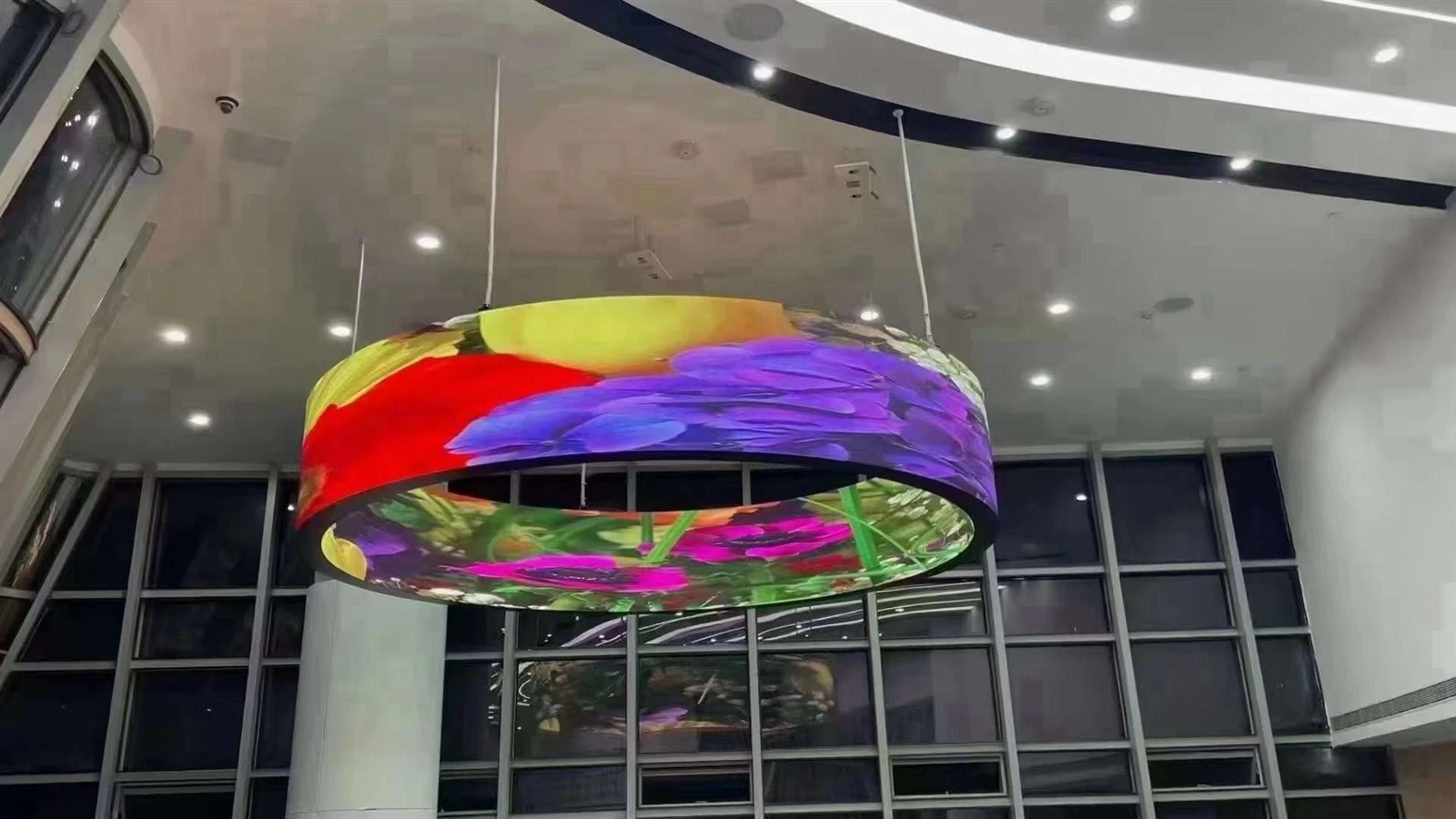

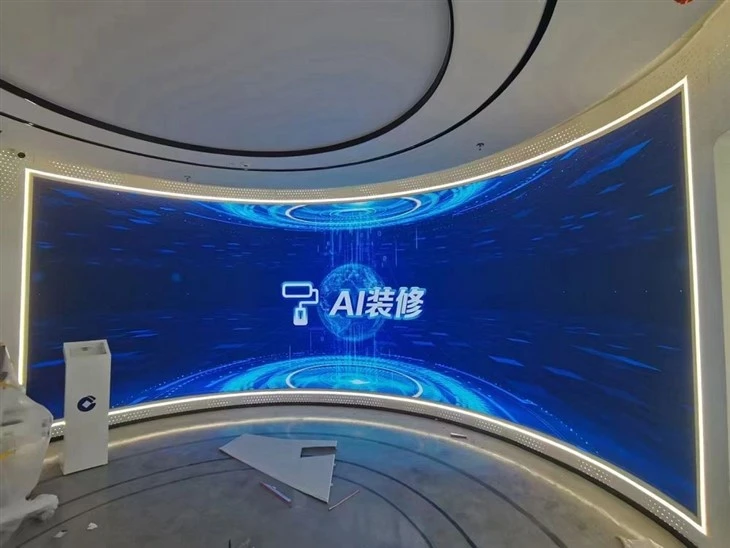

Any curved surface can be used for the installation of the soft module LED display; this includes inner arcs, circular shapes, and other artistic forms.If you need to build the LED installation screen indoor fixed or curved, they are incredibly voluptuous.
Modular and screen sizes are customizable according on the needs of the lead event project.
