Features
1.Mini COB Contrast Ratio 10000:1,
2.Power supply, control system and hub card 3 in 1 integrated system, more lighter weight.
3.Easy cleaning by water, anti-collision
4.High precision stitching, micron tolerance and adjustable
5.Common cathode circuit with low power consumption
Panel size 600*337*39mm
Technical Parameter
|
Pixel Pitch |
0.78mm |
0. 93mm |
1. 25mm |
1. 56mm |
1.87mm |
|
Module |
150*168. 75mm |
||||
|
Resolution (dot) |
192*216 |
160*180 |
120*135 |
96*108 |
80*90 |
|
Surface Treatment |
Matt COB |
||||
|
Panel Size |
600*675*39.5mm / 600*337. 5*39. 5mm |
||||
|
Panel Weight |
7. 9kg ( 600*675mm) / 4kg ( 600*337. 5mm) |
||||
|
Panel Resolution (dot) |
768*864/ 768*432 |
640*720/ 640*360 |
480*540/ 480*270 |
384*432/ 384*216 |
320*360/ 320*180 |
|
Pixel Density(dot/㎡) |
1,638,400 |
1,137,777 |
640,000 |
409,600 |
284,444 |
|
Circuit Design |
Common cathode circuit |
||||
|
Flash Correction Storage |
Applicable |
||||
|
Brightness of White Balance |
Standard 600nits |
||||
|
Refresh Rate |
1920~3840Hz |
||||
|
Contrast Ratio |
10000: 1 (Condition without lighting) |
||||
|
Color Temperature |
9300K(Standard) |
||||
|
Viewing Angle |
160° |
||||
|
Input Voltage |
AC 100~240V 50/60Hz |
||||
|
Max. Power Consumption(White Balance 600nit) |
170W/Panel (600*675mm); 85W/Panel (600*337mm) |
150W/Panel (600*675mm); 75W/Panel (600*337mm) |
140W/Panel (600*675mm); 70W/Panel (600*337mm) |
140W/Panel (600*675mm); 70W/Panel (600*337mm) |
130W/Panel (600*675mm); 65W/Panel (600*337mm) |
|
Maintenance Way |
Front Service |
||||
|
IP level of PCB surface |
IP54(Washable by clean water) |
||||
|
Operating Temperature |
-10°C-+40°C/10%RH-90%RH |
||||
|
Storage Temperature |
-20°C-+60°C/10%RH-90%RII |
||||
|
Certificate |
3C, CE, CB, ETL, FCC, ROHS, CQC |
||||

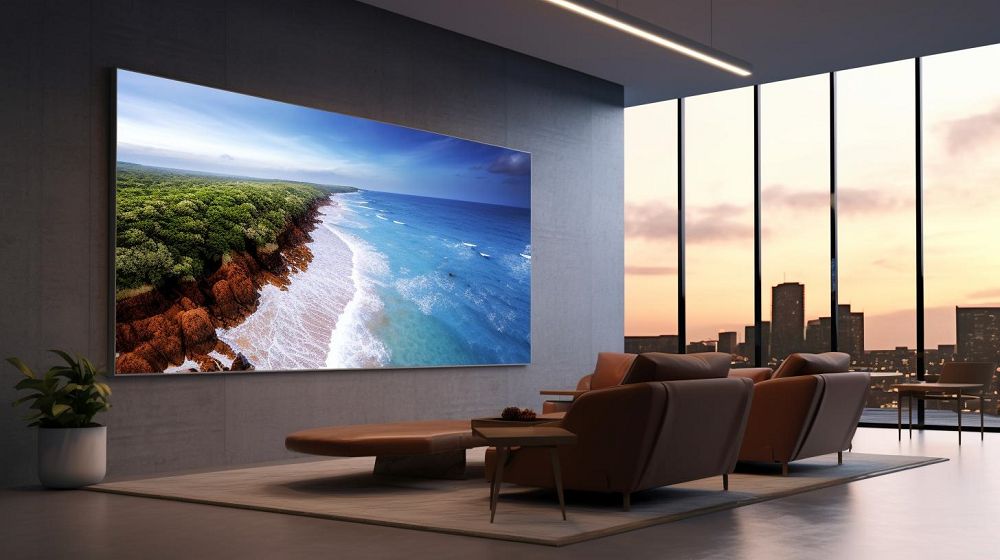

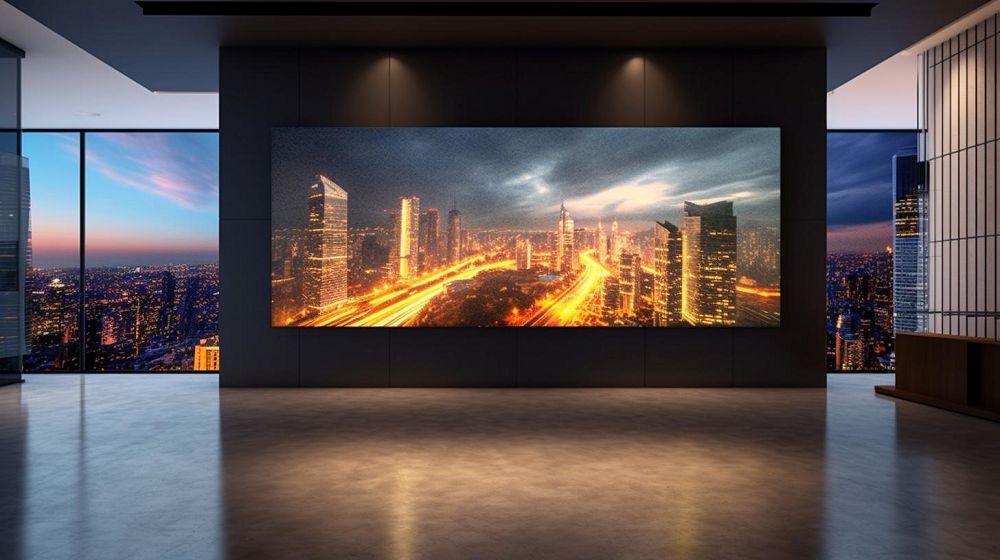

Case Sharing
COB packaged LED display screen directly integrates and packages the LED chip on the PCB, and uses a special process to form the optical component. It no longer uses a frame (bracket), which effectively solves the problem of producing a larger LED volume due to the inability of separate devices to further reduce the size of the LED. The pain points of LED displays with small dot pitches. COB technology can achieve a point spacing of 0.5mm using the formal mounting process, and a minimum dot pitch of 0.1mm using the flip-chip process.
