Products Description
LED holographic display is a display device that uses LED light source to form a three-dimensional image through optical projection technology. It has the advantages of high brightness, low power consumption, long life, fast response, etc., and can realize multiple functions such as holographic projection, virtual reality, augmented reality.
The characteristics of LED holographic display include high transmittance, lightness and self-luminescence. It uses specially designed transparent LED display elements to allow light to penetrate the display without causing obvious obstruction to the background. This display element combines LED technology and optical principles to achieve a balance between transparency and display effect by controlling the propagation path and reflection of light.
The application fields of LED holographic display are very wide, including commercial windows, commercial curtain walls, exhibition halls, entertainment and tourism, automobile 4S stores, etc. Due to its unique transparent effect and three-dimensional suspension sense, this display has broad application prospects in retail, exhibitions, performances and museums.
Technical Parameter
| No. | Items | P4-4 | P6-6 | P10-10 |
| 1 | Pixel Pitch | L(4mm)W(4mm) | L(6.25mm)W(6.25mm) | L(10mm)W(10mm) |
| 2 | Display thickness | 1-3mm | ||
| 3 | LED Configuration | SMD2121 RGB 3IN1 | ||
| 4 | LED Panel Size | 1200mm*256mm/Customized | 1200mm*325mm/Customized | 1200mm*250mm/Customized |
| 5 | Pixel Density | 62,500 dots/m² | 25,600 dots/m² | 10,000 dots/m² |
| 6 | Power Consumption (single module) |
4000cd/electricity：1.3A Power: 286W 5000cd/electricity : 1.7A Power: 374W |
4000cd/electricity：1.5A Power: 330W 5000cd/electricity : 1.8A Power: 396W |
4000cd/electricity：1.7A Power: 374W 5000cd/electricity : 1.8A Power: 396W |
| 7 | Screen Weight (single module) |
1.37KG | 1.36KG | 1.35KG |
| 8 | Transparency | ≥70％ | ≥80％ | ≥90％ |
| 9 | IP Rate | IP30 | IP30 | IP30 |
| 10 | MTBF | >10,000 hrs | >10,000 hrs | >10,000 hrs |
| 11 | Brightness | 1200~5500cd/㎡ adjustable | 1200~5500cd/㎡ adjustable | 1200~5500cd/㎡ adjustable |
| 12 | View Angle | H 160°,W 140° | H 160°,W 140° | H 160°,W 140° |
| 13 | Best View Distance | ≥3-150m | ≥5-160m | ≥8-170m |
| 14 | Gray Scale | ≥16bit | ≥16bit | ≥16bit |
| 15 | Refresh Rate | ＞3840HZ | ＞3840HZ | ＞3840HZ |
| 16 | Frame changing frequency | 60fps | 60fps | 60fps |
| 17 | Input voltage | AC 86-264V/60Hz | AC 86-264V/60Hz |
AC 86-264V/60Hz |
| 18 | Service life | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs |
| 19 | Temperature | Working:﹣10℃～+65℃ or Storage:﹣40℃～+85℃ | ||
| 20 | Humidity | 10%-90%RH | ||
| 21 | Control System | Colorlight/NovaStar Synchronous/Async | ||
| 22 | Installation |
Film on Glass, Hanging, Fixed Mounting, supports cutting and bending to any size. |
||

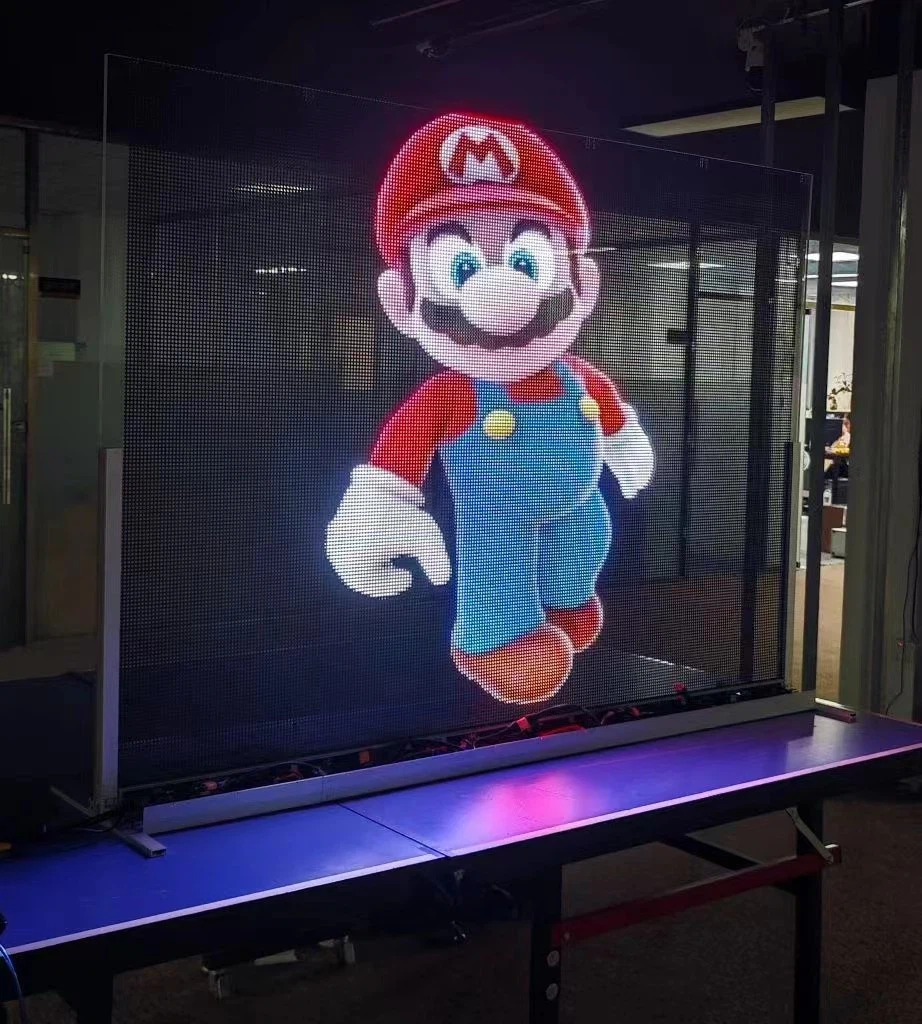

Picture Case
Products Advantages
1. High transparency: The LED holographic display screen adopts a structure-free keel design, with a direct-viewing transparency of more than 90%, and the screen is almost imperceptible12. This high transparency allows it to maintain background visibility in various application scenarios, providing a more natural visual experience.
2. Lightweight and beautiful: The screen weight of the LED holographic display screen is as light as 2KG/㎡, and the thickness is as thin as less than 2mm. It can fit perfectly on the transparent glass and integrate with the building structure without destroying the beauty of the original building13. This light and beautiful feature is in line with the pursuit of simplicity, efficiency and beauty in modern design.

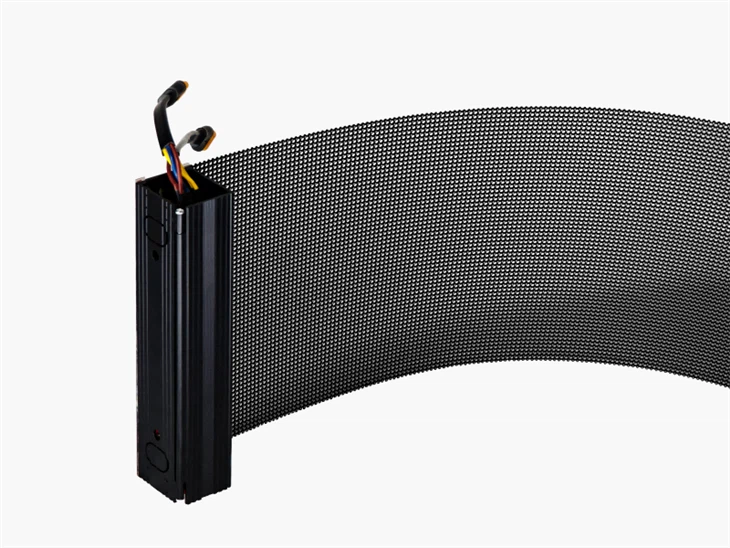

3. Flexible and changeable: The module design of the LED holographic display screen is ingenious, bendable, and cuttable, and can adapt to display needs of various shapes and sizes12. This design allows it to be applied to complex environments such as curved glass and special-shaped screens, providing more possibilities for creative display.
4. Excellent display effect: The LED holographic display screen adopts specially designed transparent LED display elements, and the light can penetrate the display screen without causing obvious obstruction to the background. By precisely controlling the propagation path and reflection of light, a perfect balance between transparency and display effect is achieved1. Whether it is text, pictures or videos, they can be displayed in front of users with extremely high clarity.
5. Energy saving and environmental protection: The LED holographic display screen adopts a low-power design, which can effectively reduce energy consumption. At the same time, its environmentally friendly materials are also in line with the green development concept of modern society.
6. Easy to install and maintain: The LED holographic display screen is designed to be thin and light, and the installation process is simple and convenient, which can adapt to different display environments. The screen can achieve single-point single control, and any lamp beads only need to be replaced if they are damaged, which is simple and low-cost.
