Technical Parameter
|
Mode No. |
JL-P4*8 |
JL-P5*10 |
JL- P6 |
JL-P6.5 |
JL-P8 |
JL-P10 |
JL-P16 |
|

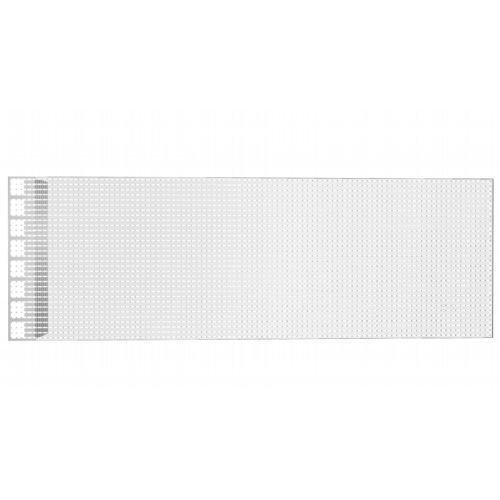

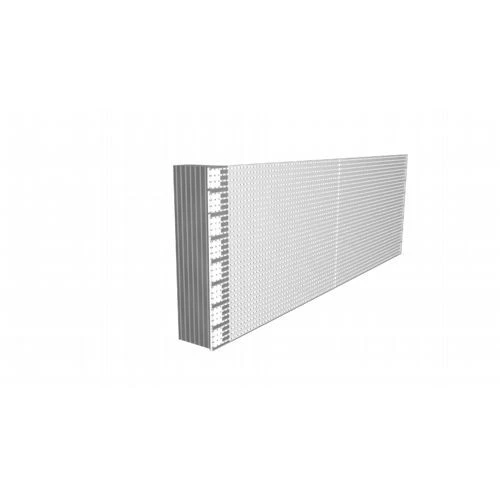

Module size(mm) |
1000x240 |
960x320 |
1000x240 |
1000X240 |
1000x240 |
1000x240 |
1000x240 |
|
Transparent rate |
55% |
68% |
50% |
60% |
65% |
68% |
75% |
|
Film weight(Kg/㎡) |
1~3 |
1~3 |
1~3 |
1~3 |
1~3 |
1~3 |
1~3 |
|
Film thickness(mm) |
≤3 |
≤3 |
≤3 |
≤3 |
≤3 |
≤3 |
≤3 |
|
Pixel pitch(mm) |
4X8 |
5X10 |
6X6 |
6.5X6.5 |
8X8 |
10X10 |
16X16 |
|
Pixel density(dot/㎡) |
31250 |
20000 |
27556 |
23716 |
15625 |
10000 |
3906 |
|
Brightness(cd/㎡) |
1500-4500 |
1500-4500 |
1500-4500 |
1500-4500 |
1500-4500 |
1500-4500 |
1500-3000 |
|
Brightness scope |
±0.003 |
±0.003 |
±0.003 |
±0.003 |
±0.003 |
±0.003 |
±0.003 |
|
View angle( °) |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
|
Pixel configure |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
Refresh rate(Hz) |
≥1920 |
≥1920 |
≥1920 |
≥1920 |
≥1920 |
≥1920 |
≥1920 |
|
Average power(w/㎡) |
≤200 |
≤200 |
≤200 |
≤200 |
≤200 |
≤240 |
≤200 |
|
Max power(w/㎡) |
≤600 |
≤600 |
≤600 |
≤600 |
≤600 |
≤800 |
≤600 |
|
Working temper.(℃) |
-20℃-55℃ |
-20℃-55℃ |
-20℃-55℃ |
-20℃-55℃ |
-20℃-55℃ |
-20℃-55℃ |
-20℃-55℃ |
|
Working humidity(RH) |
10%-90% |
10%-90% |
10%-90% |
10%-90% |
10%-90% |
10%-90% |
10%-90% |
|
Dtive type |
static |
static |
static |
static |
static |
static |
static |
|
Control system |
Novastar |
Novastar |
Novastar |
Novastar |
Novastar |
Novastar |
Novasta |
Features
1. Stunning appearance: The glass curtain wall and LED crystal film screen may be seamlessly combined without detracting from the building's overall design. In addition, individuals can be greatly affected visually by its high resolution, high brightness, and vibrant color image effects, which also enhance the quality of metropolitan night views.
2. LED light-emitting diodes are low-power LED light sources that save energy and safeguard the environment. These screens are made of LEDs. When juxtaposed with conventional lighting techniques like LED displays and neon lights, they offer the benefit of being more ecologically and energy-efficient. In addition, its extended lifespan and minimal upkeep expenses render it more cost-effective and reasonable when utilized over an extended period.
3. Simple to install: Simply adhere the LED crystal film screen to the glass curtain wall's surface to begin installation. This installation technique won't harm the building's structure or compromise its ability to provide adequate lighting.
4. Great customize ability: LED crystal film panels can be created into screens of different sizes, forms, and display effects, depending on what the customer wants. With this customizable functionality, LED crystal film panels may be used for a greater variety of applications and satisfy the demands of various clients.
