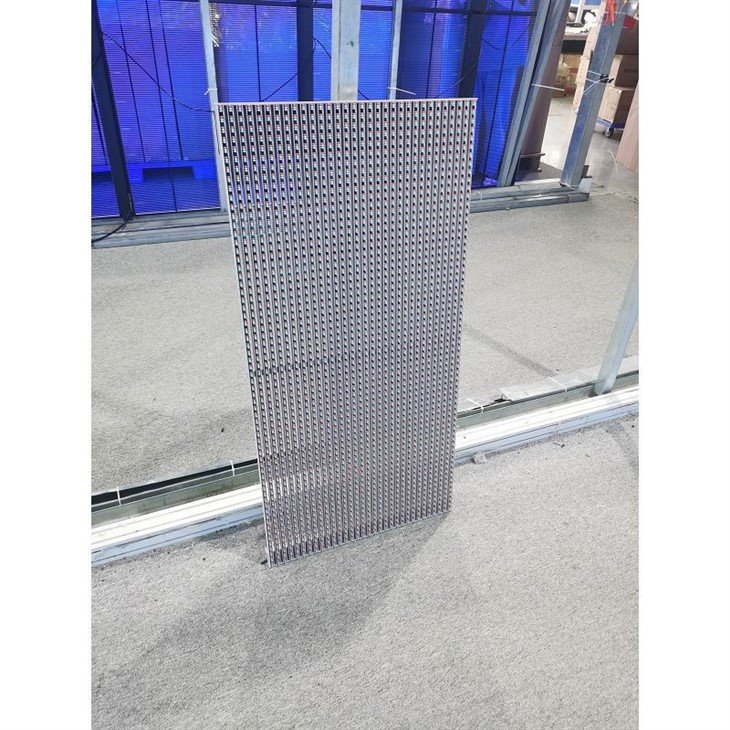

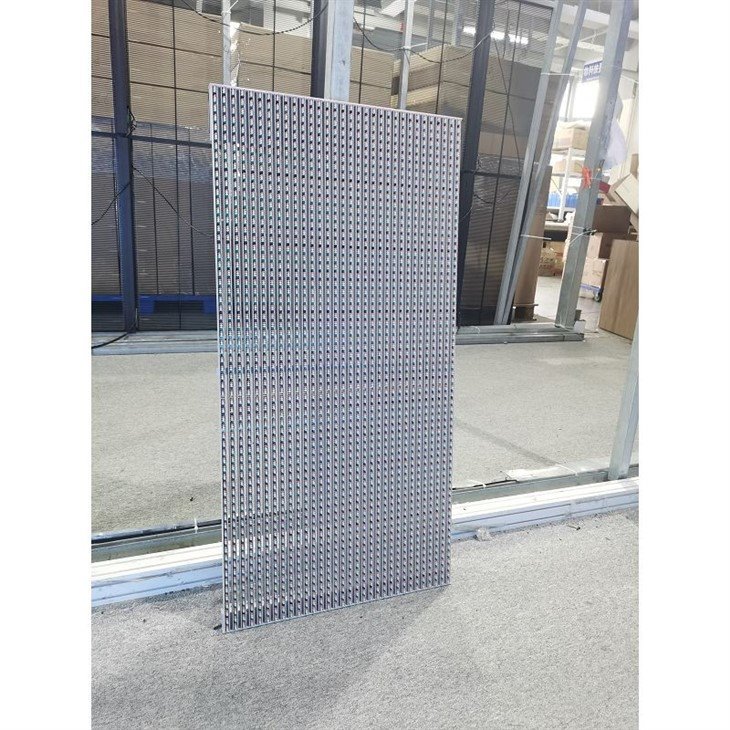

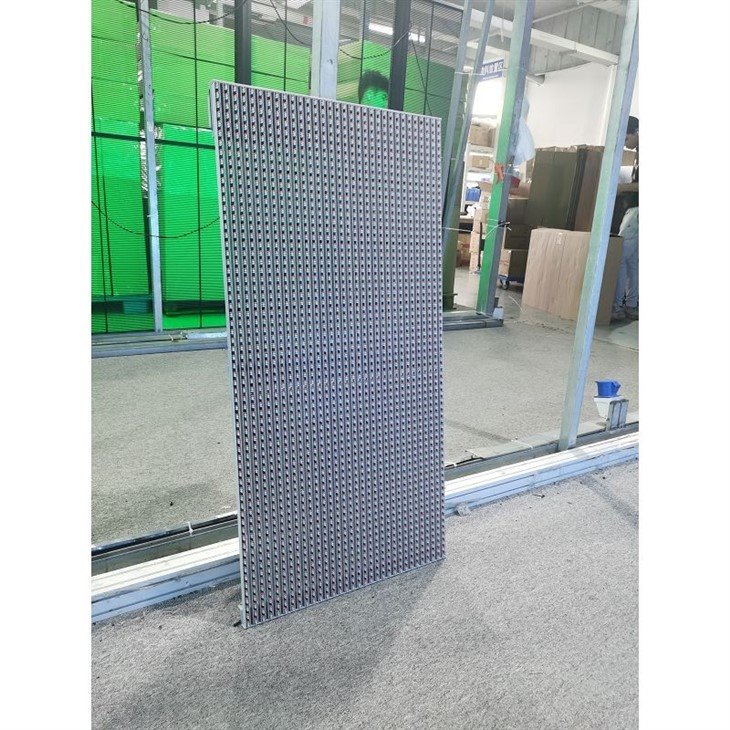

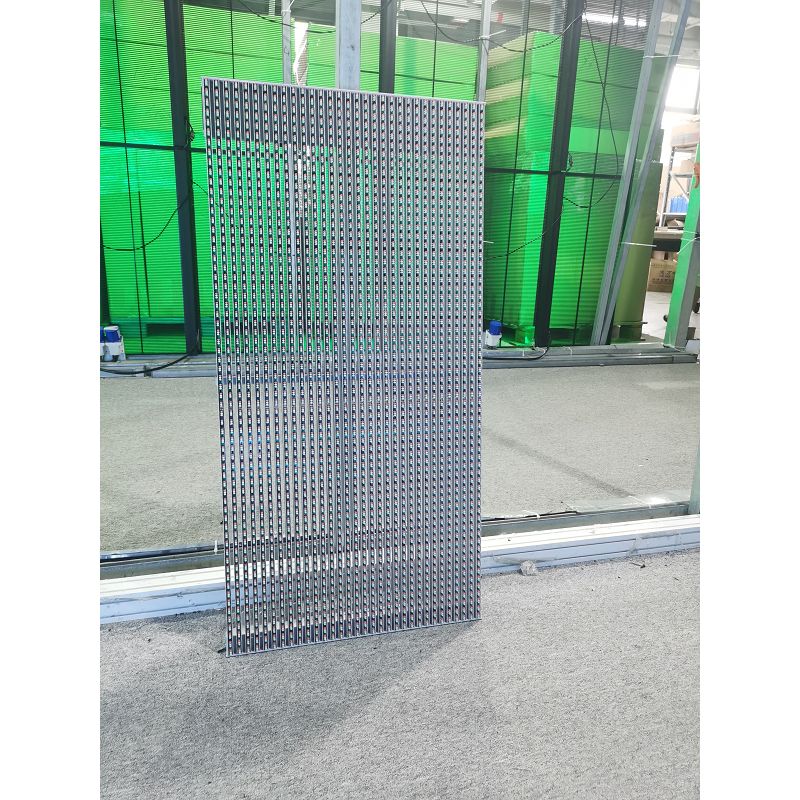

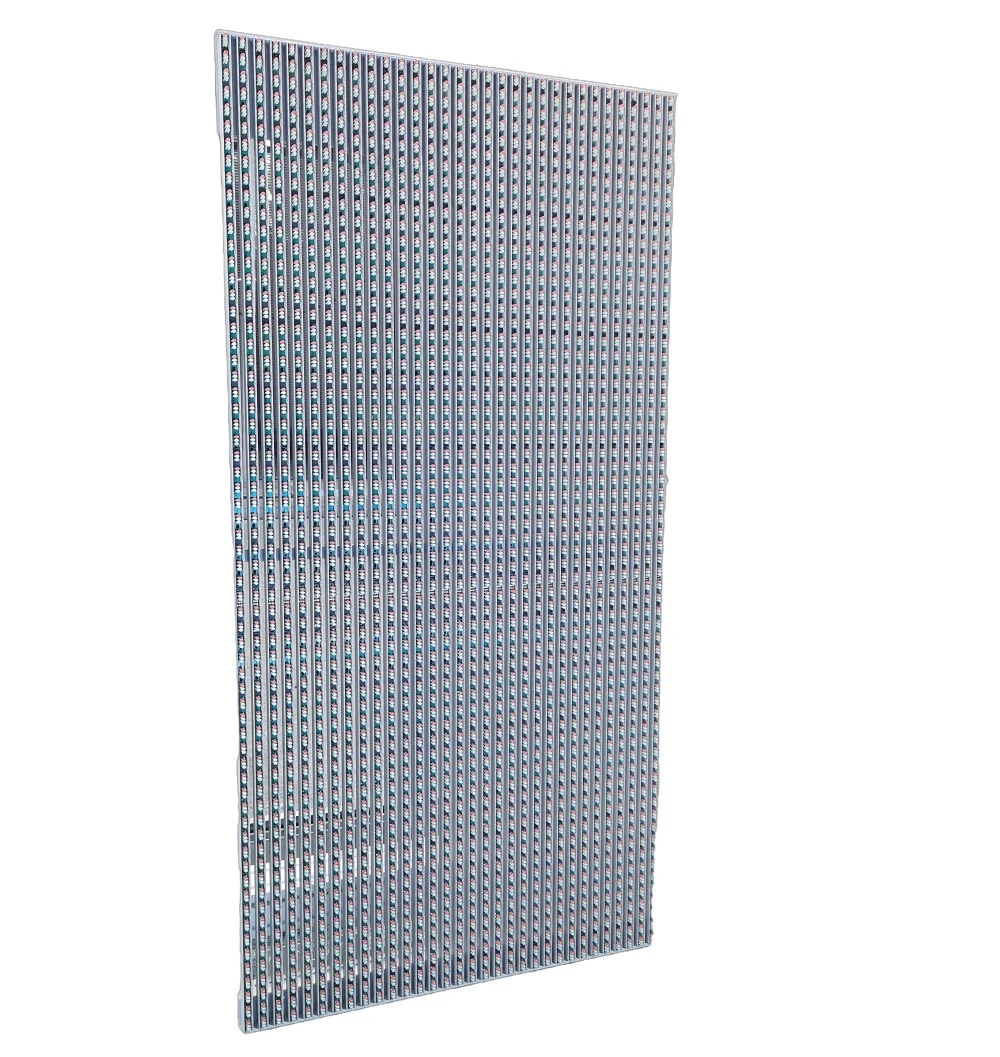

P15.625 LED Transparent Screen





PARAMETER		VALUE
Physical Parameters	Pixel specification	DIP346
	pitch(mm)	15.625mm*15.625mm
	Pixel density(pixel/sq.m.)	4096
	Pixel matrix per panel	20*40
	Panel dimention(L*W*H)(mm)	500×1000
	Transparency rate	55%
	Panel material	Aluminum profile
	Wight/sqm(kg)	18
Electronic Parameters	Color grayscale(bit)	16
	Gray Scale per color(level)	65536
	Refresh rate	>1920
	Driving type	Static state
	Signal transmission distance	CAT5 cable:Single mode fiber:
	AC Input Voltage(V)	AC: 175-245
	AC Input Frequency(Hz)	50-60
	Input power maximum value(W/sqm)	450
	Input power average value(W/sqm)	160
Optical parameter	brightness	8000cd/M2
	Viewing angle	Horizontal ≥120deg. Vertical ≥60deg.
Environmental Parameter	Storage temperature(℃)	-40-85
	Working temperature(℃)	-20-60
	IP rating (front/rear)	IP67/IP67
	Fire rating	V0
	Storage humidity(RH)	10%-90% non-condensing
	Working humidity(RH)	10%-60% non-condensing
	Lifetime typical value(hrs)	100000
	MTBF	>5000H
	Wind resistance performance	12 force
	storage temperature(0C)	-10--60
Installation Type	Front/back	Fixed
Maintenance Type	Front/back	10s/panel





1.IP65 Waterproof Glue filling, to make waterproof and dustproof





2.Operational temperature range: -40 to +70 degrees; suitable for use in extremely cold and hot temperatures.fantastic for the Middle East and Russia

3.Thin and light version Light:15kgs/sqm;Thin:6.5cm thickness

4.Noiseless, fanless design
Energy-saving: Maximum electricity usage of 600 w/sqm

4.Seamless spacing very easy to install





1. Small wind load and light weight, ideal for large display screens.
It is 60%–80% lighter than typical LED displays, significantly lowering the display infrastructure's strength and weight. With an air permeability rate of 40%–50%, it is particularly appropriate for large LED displays and is incredibly Robust wind resistance efficiently diminishes the weight and strength of the LED display's fundamental component.

2. Minimal power usage
High-brightness, high-light-efficiency LED lights and power supply with high conversion efficiencies are the sources of true energy savings.

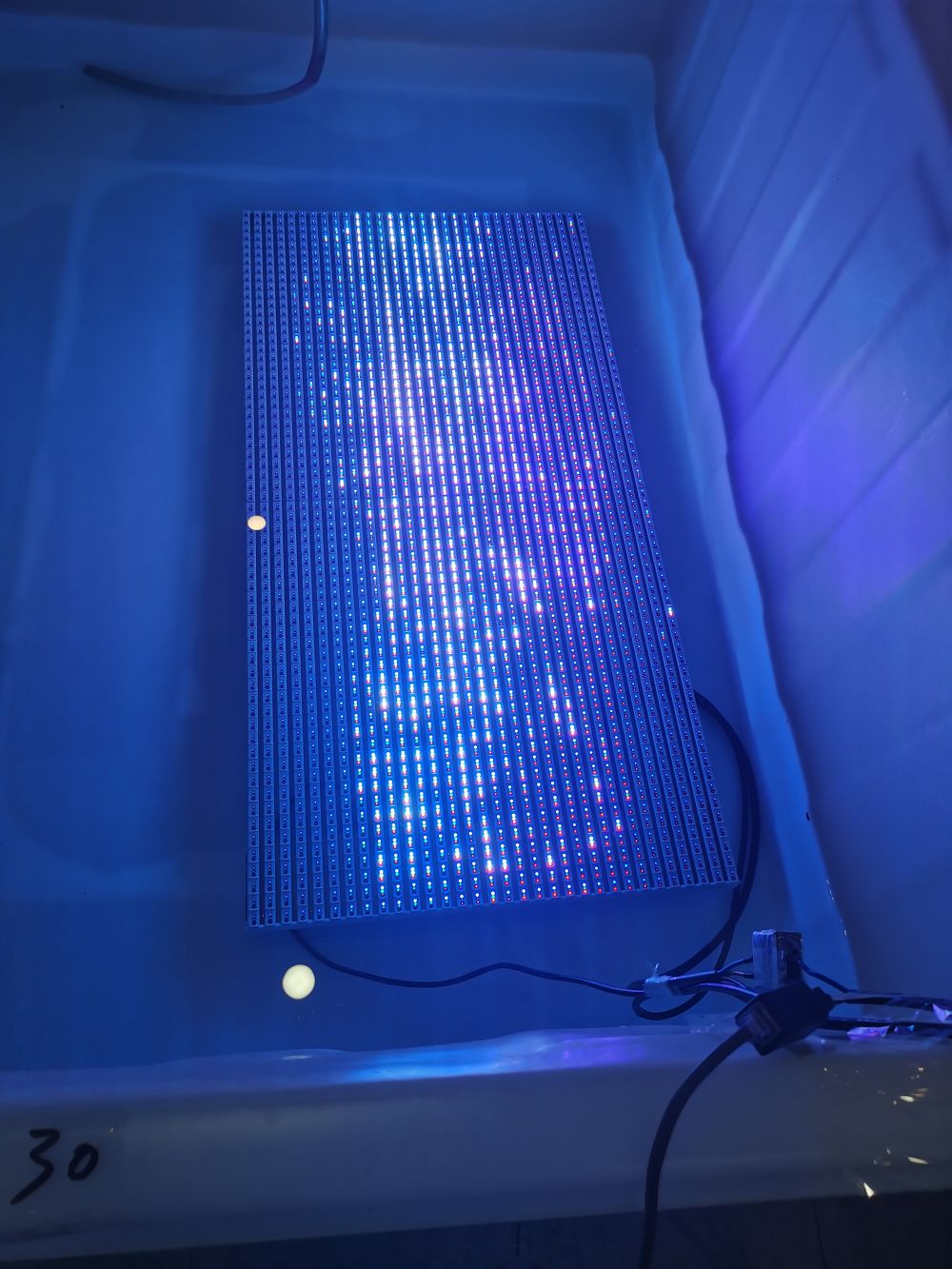

3. High protection level IP67
The protection level, the front IP and the rear IP, two data, are often shown on traditional displays. Because IP67 is designed to be immersion waterproof-that is, to provide both safety and stability of use-the grille screen has a high level of protection.

4. It doesn't need to have its air conditioner heat dissipation increased because it has a superb automated cooling system.

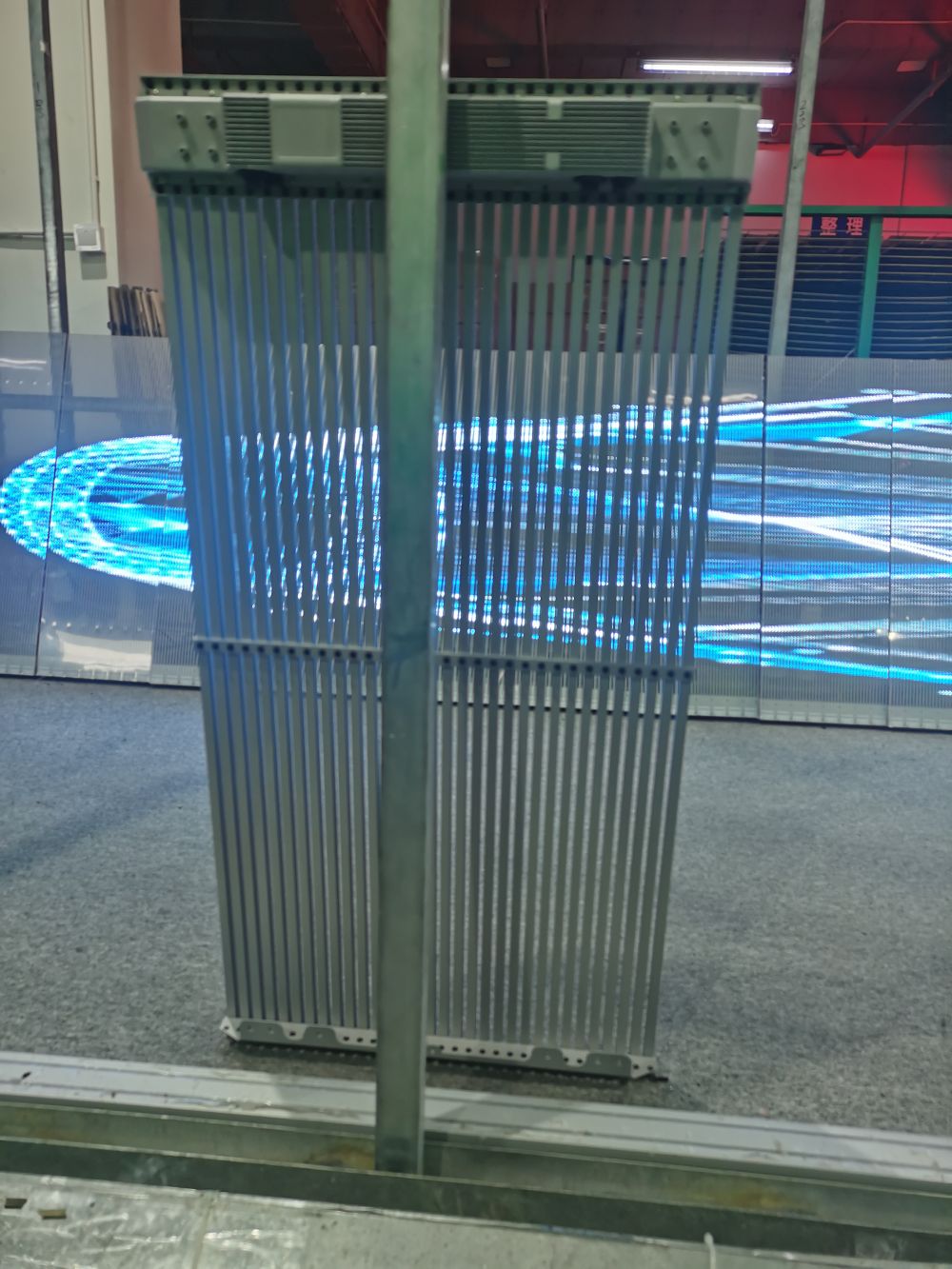

Good self-heat dissipation is made possible by the aluminum alloy used to make each LED light strip, which has good light transmittance throughout. In addition, the power source, controller, and other components are separated from the luminescent materials, obviating the requirement for specialized heat dissipation mechanisms like LED screens.

5. Well-coordinated
Highly integrated (power supply and signal are connected by a single line; power supply and receiving card are built-in, allowing each unit to function independently). The quantity of light strip connectors is decreased by means of an innovative electronic circuit design. There is a common set of power and signal connectors for every 16 lamp strips. It is possible to minimize the poor connector rate by 94% when the same conditions are met.

6. Simple to set up
It is possible to install air conditioning from the front or the back, and there is no need to create a steel framework. The product is simple to install and lightweight. The installation can be done from the front or the back. Air conditioning is not necessary for this product. One side of the product also demonstrates its low power consumption. Light energy can be produced from electric energy more effectively than heat energy.

7. Easy upkeep and a straightforward structure.
It is readily affixed to the wall with few components, causing no harm to the wall or foundation. It is simple to apply pre-maintenance or post-maintenance as required. Establishing a maintenance channel is not necessary if the front maintenance method is used.

8.The installation structure and control box are designed together.
