Technical parameter
|

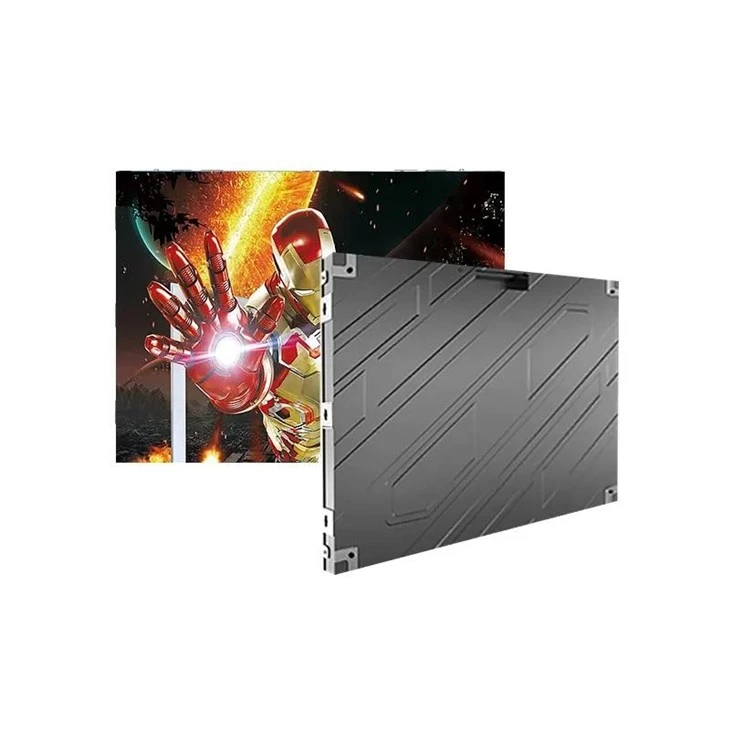

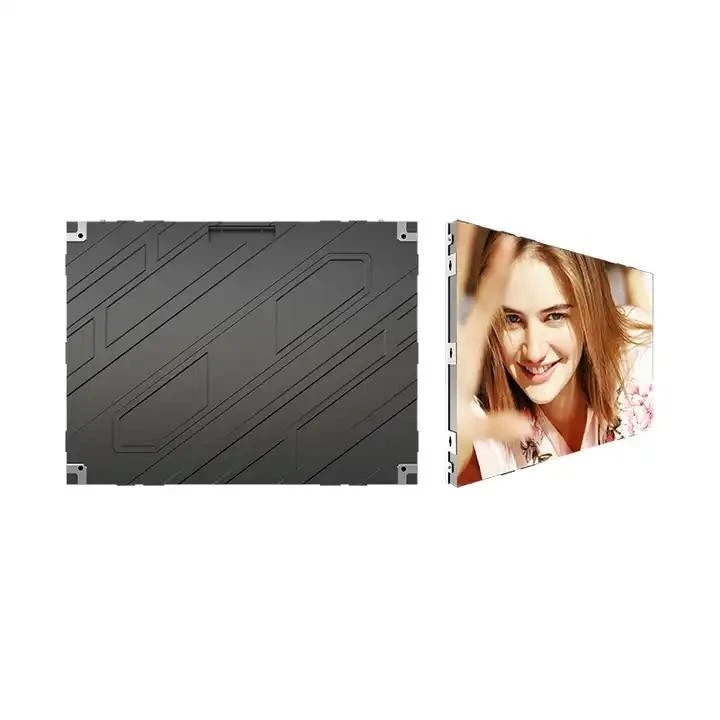

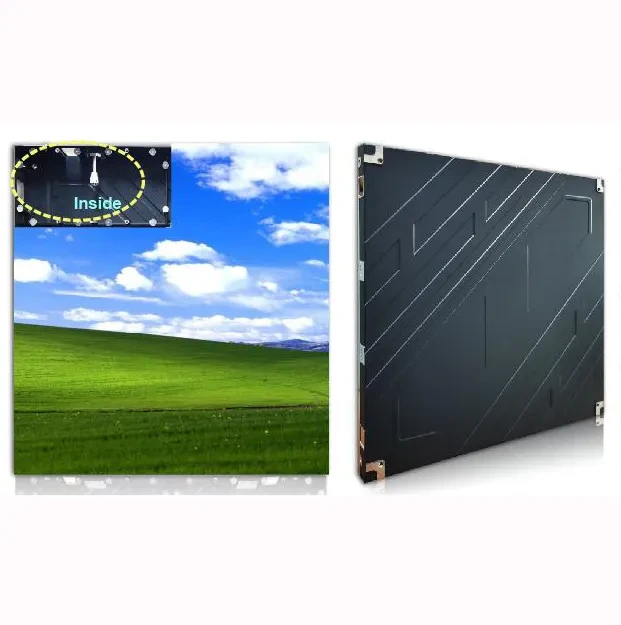

P2 HD indoor led video wall |
|||
|
LED Chip |
SMD 3IN1 1R1G1B |
Driver Way |
Static, 1/16scan |
|
Module Size |
320x160x80mm |
Refresh Rate |
3840HZ |
|
Module Resolution |
160*80dots |
Brightness |
≥700cd/m2 |
|
Bracket of cabinet |
Easy to install and dismantle |
Screen Signal |
PAL/NTSC |
|
Control Method |
Phone and computer |
Communication Distance |
≤120m (cat5) Multi-mode Fiber 500m, Single-mode Fiber 20KM |
|
Panel Weight |
8Kg/cabinet |
Display Content |
Word, File, AllType Pictures File |
|
Average Consumption |
350W/m2 |
PC Display Mode |
800×600,1024×768,1280×960 etc. |
|
Max Consumption |
≤800W/m2 |
Power Supply Spec |
5V/40A |
|
Lifespan |
100000 hours |
Operation System |
WIN 98/ 2000/ NT/XP |
|
Driver IC |
ICN2163 |
Control Way |
synchronization |
|
Function |
Play high resolution pictures, videos ect |
Gray/Color |
red/green/blue65536levels, 16.7M colors |
|
Application |
Suitable for wedding, clubs, outdoor activities and commercial areas |
Flatness |
Every pixels ≤1mm. Every modules ≤1mm |
Features
1.P2 HD indoor led video wall can perfectly display ultra-high definition picture quality and delicate colors
2.P2 indoor LED display refresh rate reaches 3840Hz
3.Indoor P2 full-color LED display with contrast ratio up to 5000:1

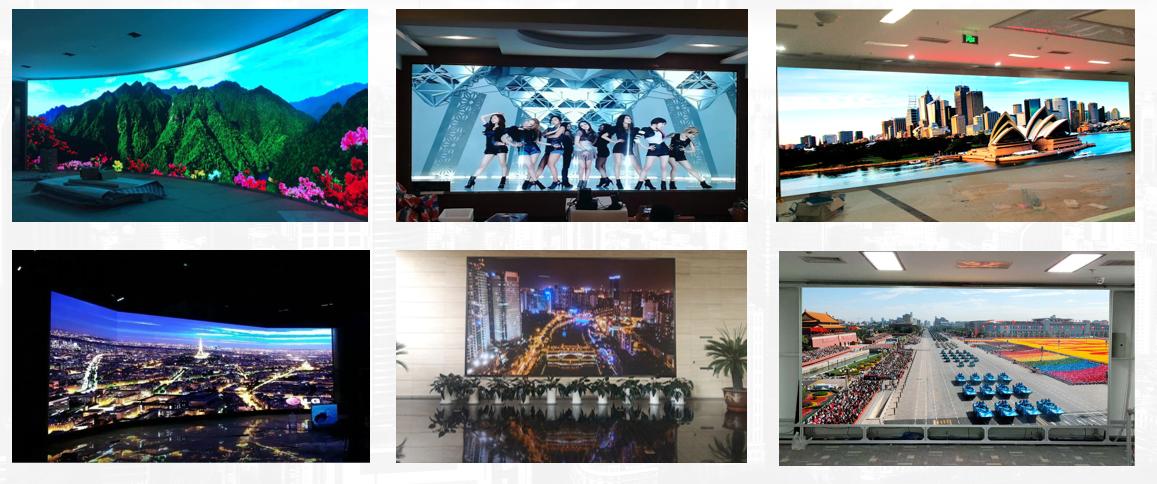

4.P2 HD indoor led video wall widely used in large venues, squares, stadiums, government agencies, airports, docks, stations, securities markets and other trading markets, electric power, exhibition halls, etc. for publicity, advertising, information release, and guidance. place.
5.The P2 full-color display screen is coated with three-proof paint to protect the circuit board and related equipment from the erosion of the bad environment; it has good high and low temperature resistance; after curing, it forms a transparent protective film, which has excellent insulation, moisture-proof, leakage prevention, Shockproof, dustproof, anti-corrosion, anti-aging, corona resistance and other properties.
Jiulong optoelectronics mainly produce indoor led video wall and outdoor led screen,rental led display,hotel conference led screen,high-speed train led screen,we have a good reputation at this area.Most of the train station ask us to provide the led screen project.We believe our led screen will in every corner in the future world.
