Features
1.P1.667 LED video wall display has low power consumption: 30% more energy-saving than traditional display products;
2. High contrast: contrast ratio up to 5000:1;

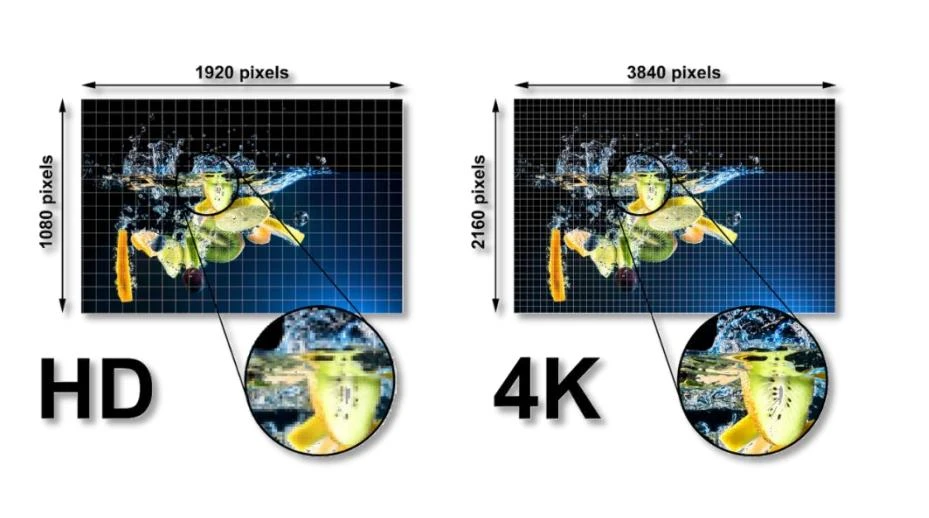

3. High definition: ultra-small spacing, high pixel density, resolution up to 1080P or above;
4. High grayscale: grayscale processing depth reaches 16bit;
5.P1.6 display high refresh rate: the refresh frequency reaches more than 3200Hz;
6. Wide viewing angle: horizontal viewing angle up to 160°;
7. P1.6 67 LED video wall display seamless splicing: CNC precise and scientific digital processing, the error is less than 0.1MM, truly seamless;
8. Adjustable brightness: The brightness adjustment range is wide, reaching 200-1500cd/㎡, to meet the needs of various environments.
Led modules
Technical parameters
|
Parameters |
Specifications |
||||
|
Pixel Structure(SMD) |
1010 |
1212 |
1212 |
||
|
Pixel Composition |
1R1G1B |
||||
|
Pixel Pitch(mm) |
1.25 |
1.56 |
1.66 |
||
|
Pixel Density(Dots/㎡) |
640,000 |
409,600 |
360,000 |
||
|

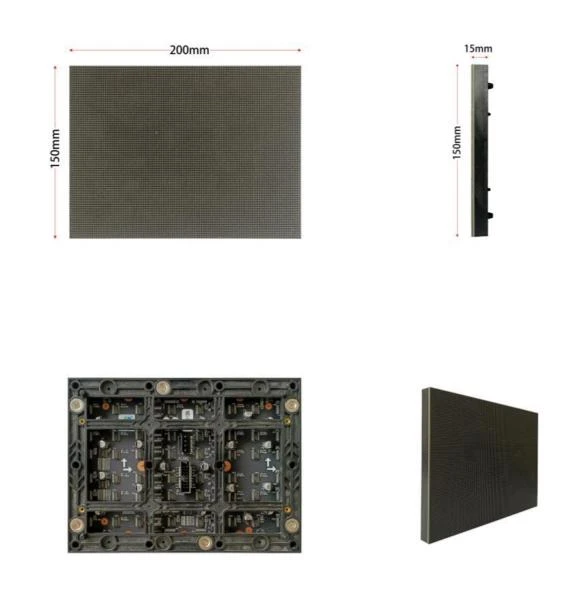

Module Size(mm) |
200(L) * 150(W) * 3(H) |
||||
|
Module Resolution(Dots) |
160 * 120 |
128 * 96 |
108 * 90 |
||
|
Module Input(V) |
4.2 ~ 5 |
||||
|
Module Peak Power(W) |
≤ 13 |
||||
|
Power Load Quantity(Pcs) |
6 |
||||
|
Module Material |
Metal pan |
||||
|
Cabinet Resolution(Dots) |
320*360 |
256*288 |
240*270 |
||
|
Cabinet Modules(Pcs) |
2 * 3 |
||||
|
Cabinet Size(mm) |
|||||
|
Cabinet Weight(Kg) |
≤ 4.5 |
||||
|
Cabinet Flatness(mm) |
＜ 0.1 |
||||
|
Cabinet Material |
Die casting aluminum |
||||
|
Module Maintenance Mode |
Front maintenance |
||||
|
White Balance Brightness(Nit) |
≥ 500 |
||||
|
Standard Color Temperature(K) |
1000~9500 adjustable |
||||
|
Refresh Rate(Hz) |
≥ 1920 ~ 3840 |
||||
|
Viewing Angle |
Vertical horizontal perspective ≥160° |
||||
|
Brightness Uniformity |
≥ 99% |
||||
|
Color Processing Digits(Bit) |
≤ 16 Bit |
||||
|
Contrast Ratio |
5000:1 |
||||
|
Driving Mode |
Constant Current Driving |
||||
|
Scanning Mode |
1 / 60 |
1 / 48 |
1 / 45 |
||
|
Working Voltage(V) |
110 ~ 240V 50 ~ 60Hz |
||||
|
Peak Power(W/㎡) |
≤ 600 |
||||
|
Average Power(W/㎡) |
100 ~ 240 |
||||
|
Storage Temperture(℃)&. Humidity(RH) |
-20℃ ~ 50℃ &. 10% ~ 60% |
||||
|
Working Temperature(℃)&. Humidity(RH) |
-10℃ ~ 50℃ &. 10% ~ 65% |
||||
|
Protection Level |
IP55 |
||||

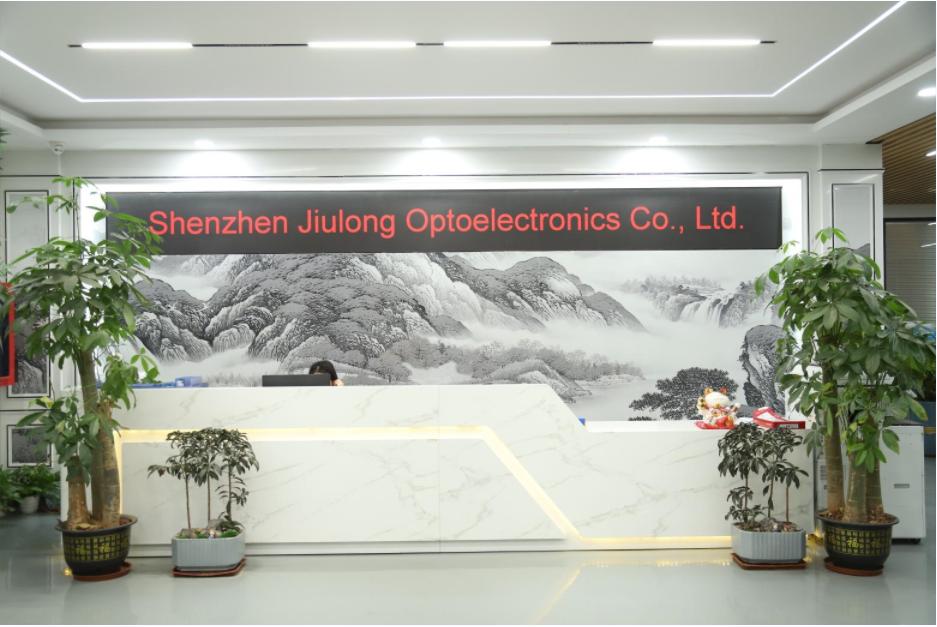

Jiulong LED is a leading company in the LED display industry, having worked on both indoor and outdoor displays since its founding in 2012. Jiulong LED places a high value on LED product development and research. Following over a decade of development, Jiulong LED products are now well-selling in over 100 countries and regions worldwide.Jiulong LED considers its clients to be its most valuable assets and aspires to build long-lasting, mutually beneficial relationships with them.
