Technical parameter
|
Module parameter |
Item |
parameter |
|
Model No. |
JL-PH4-16s |
|
|

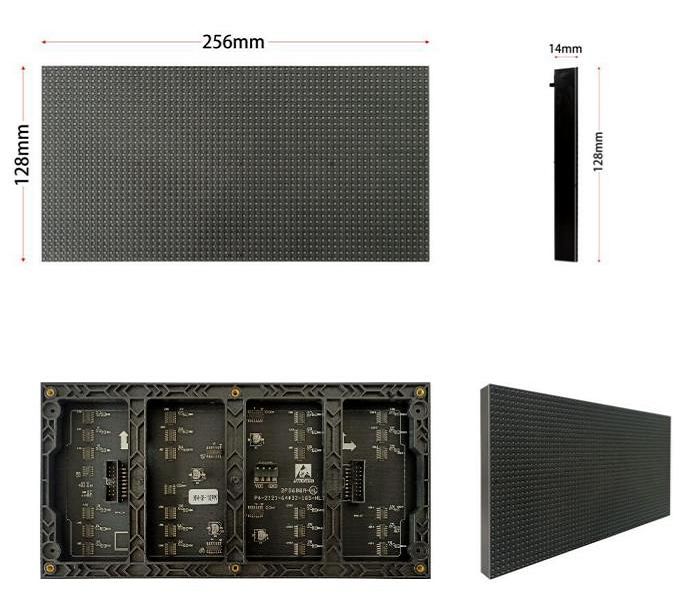

Module size |
256x128MM |
|
|
Physical Pitch |
4MM |
|
|
Physical Density |
62500/m2 |
|
|
Pixel configuration |
1R1G1B |
|
|
Package mode |
SMD 3IN1 -2121 |
|
|
Module Resolution |
64dots(W)*32dots(H) |
|
|
Max Power |
16W |
|
|
Module Thickness |
14MM |
|
|
Module weight |
170G |
|
|
Drive type |
Constant drive |
|
|
Scan mode |
1/16 |
|
|
Port type |
HUB75 |
|
|

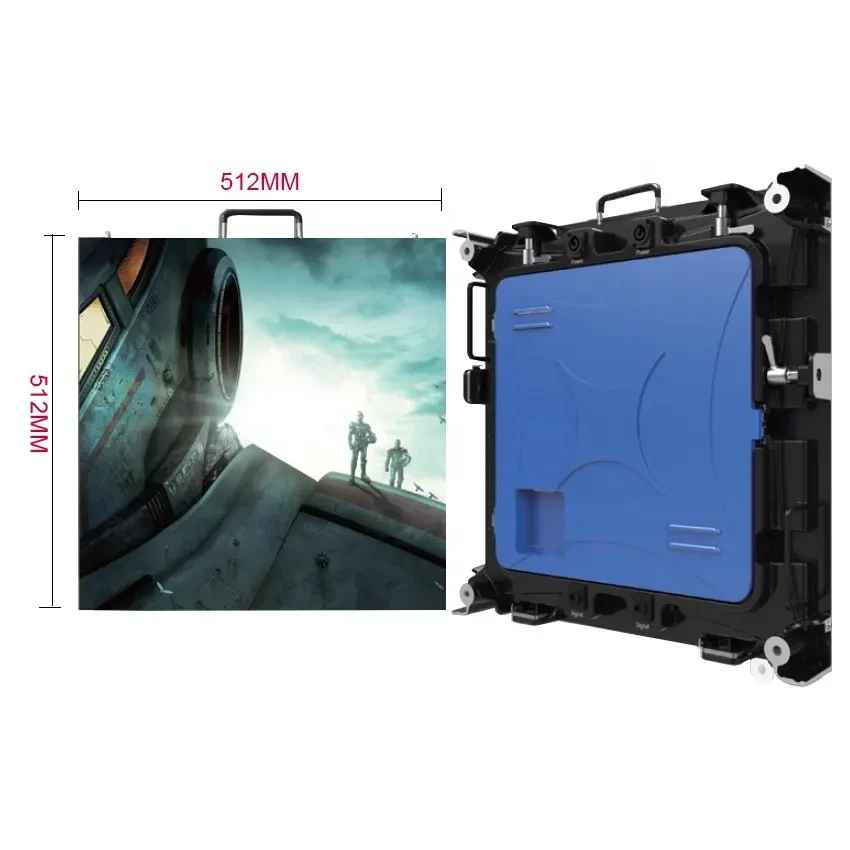

Cabinet size |
512x512MM |
|
|
Display screen parameter |
Best viewing angle |
H:120°;V:120° |
|
recommended viewing distance |
4m-28m |
|
|
Driving IC |
ICND2038s |
|
|
Rate refresh |
3840Hz |
|
|
Brightness of white balance |
700cd/㎡ |
|
|
Input voltage |
110-220V;AC±10% |
|
|
operating temperature/humidity |
-30℃~+45℃ |
|
|
Average Power Consumption |
165w/㎡ |
|
|
Max. Power Consumption |
600w/㎡ |
|
|
life time |
>100000 hours |
|
|
the rate |
<0.0001 |
|
|
MBTF |
>5000 hours |
Advantages
1.Strong reliability: P4 indoor LED display panneladopts distributed scanning technology and modular design technology, which has higher reliability and stability;
2.Exquisite image quality: Non-linear correction technology, the image effect is exquisite and clear; the animation effect is vivid and diverse; the video effect is smooth and lifelike.
3.Long service life: P4 indoor full-color display pannel uses high-quality light-emitting components as the core material of the display and adopts its own patented circuit board design, which fundamentally ensures the service life of the product.
4.High flatness: the flatness coefficient of LED modules and modules is <0.5mm, and the power factor is as high as 88% or more;
5.Synchronous and asynchronous compatible: Indoor P4LED display can support both synchronous control card and asynchronous control card; even if the control computer fails, it can still display and play normally
6.Convenient maintenance: The P4 indoor LED display adopts a modular design, making installation and maintenance more convenient, and can be repaired while powered on;
7.Seamless splicing: The design of the indoor P4LED display kit controls the splicing error between modules within plus or minus 0.1mm. It is easy to install and can be made into any shape according to the user's needs. It is easy to assemble and disassemble and maintain;
