Parameter
|
Model |
JL-PH3-32s |
|
Pixel Pitch |
3mm |
|

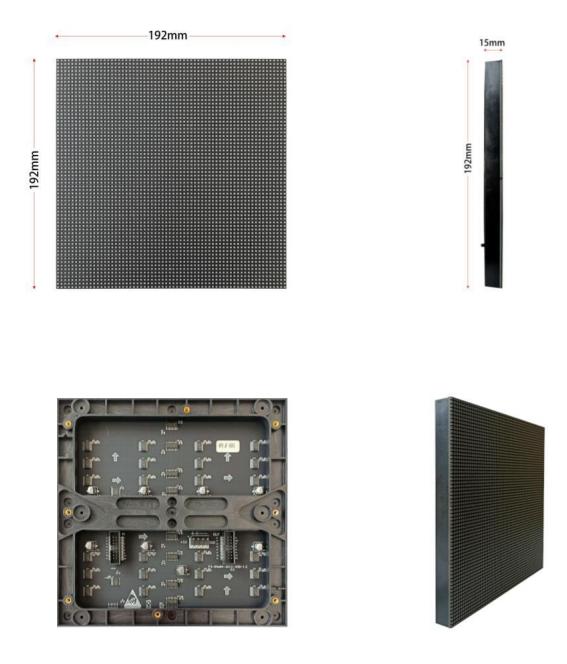

Module Size |
192 x 192mm |
|
Module Resolution |
64 x 64 dots |
|
LED Lamp Type |
SMD 2020 LED (3-IN-1 RGB) |
|
Brightness |
800 – 1,000nits (Adjustable) |
|
Refresh Rate |
1,920Hz ~ 3,840Hz |
|
Greyscale |
16-bit (281 trillion color) / 65,536 shades per primary color |
|
Driving Method |
1/32 |
|
Min Viewing Distance |
> 2.5 meter |
|
Pixel Density / m2 |
111111 dots |
|
Standard Panel |
Bare/ Steel Iron/ Magnesium Alloy |
|
Power Rating (Typ) |
135W/m2 |
|
Max Power Rating |
450W/m2 |
Features
1.With a pixel density of 111,111 pixels per square millimeter and the ability to play high-definition video files, it is the highest-definition product in the indoor full-color LED display series;
2.With jittery-free brightness and a high refresh rate IC (refresh>3840Hz), the image is clear;
3.Great contrast, high grayscale, good uniformity, high layering and sharpness of the image, even in low-light conditions;

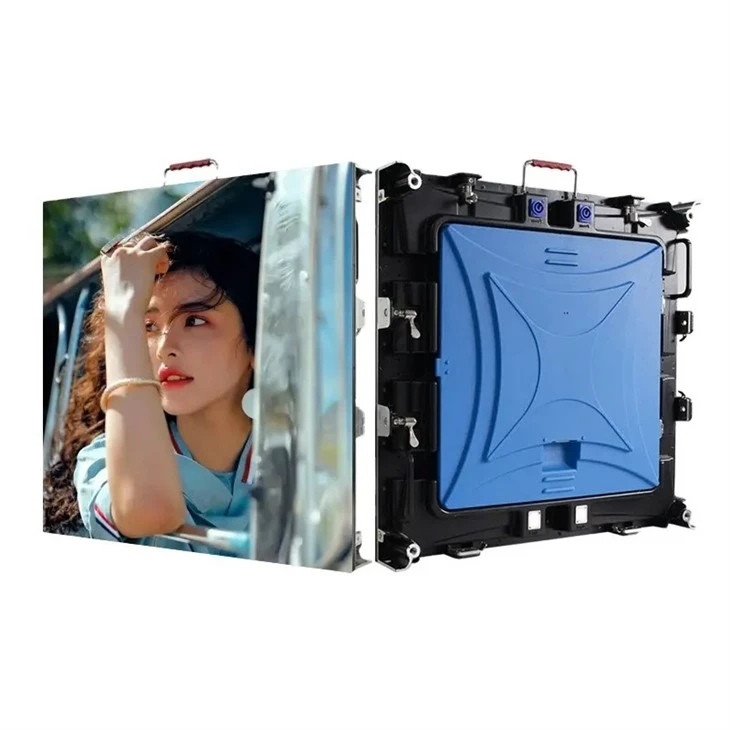

4.P3 die-casting led display screen adopt die-casting aluminum cabinet with less weight and easy to splice at will.Also convenient to carry and use for rental stage easily.
5.The P3 die-casting led display also offers flexibility. Due to its modular design, it can be combined into displays of different sizes as needed, suitable for various occasions and needs. In addition, the P3 display also supports a variety of signal inputs, such as VGA, DVI, HDMI, etc., making it easy to connect to various devices.
