Features
1.Dot pitch: The dot pitch of P1.86 is 1.86mm, while the dot pitch of P2 is 2.0mm. The dot pitch is the distance between the centers of adjacent LED lamp beads in the LED display, which directly determines the resolution of the display. Under the same display area, the smaller the dot pitch, the higher the resolution and the clearer the picture display.
2.Pixel density: The pixel density of P1.86 is higher than that of P2, which is specifically expressed as the number of pixels per square meter. The number of pixels of P1.86 is 288906 dots/㎡, and the number of pixels of P2 is 250000 dots/㎡. This means that P1.86 can display more delicate and richer picture details.
3.Clarity: Due to the smaller dot pitch, the LED display of P1.86 can present more delicate and clear images and video content. This difference is particularly obvious when watching at close range.
Parameters
|
Item |
Parameter |
|
Model No. |
JL-PH1.86-43 scan indoor LED screen |
|
Led module size |
320x160MM |
|
Physical pitch |
1.86MM |
|
Physical Density |
288906 dot/m2 |
|
Package mode |
SMD 3IN1-1515 |
|
Module Resolution |
172 dots(W)* 86 dots(H) |
|
Max Power |
22W |
|
Module thickness |
18mm |
|
Module Weight |
498g |
|
Drive type |
Constant drive |
|
Scan mode |
1/43 scan |
|
Cabinet size |
640x480MM |

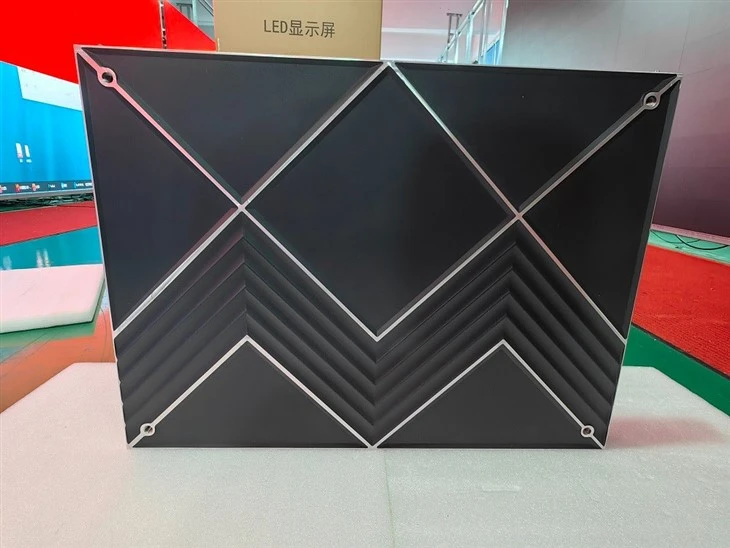

indoor 1.86 LED screen
|
Cabinet size |
640x480MM |
|
best viewing angle |
H:140°;V:120° |
|
recommended viewing distance |
≥1.2m |
|
Driving IC |
ICN2163 |
|
Rate refresh |
3840Hz |
|
Brightness of white balance |
700cd/㎡ |
|
Input voltage |
110-220V;AC±10% |
|
operating temperature/humidity |
-20℃~+50℃ |
|
Average Power Consumption |
220w/㎡ |
|
Max. Power Consumption |
550w/㎡ |
|
MBTF |
>5000 hours |
The dot pitch of an LED display refers to the distance between the centers of two adjacent LED lamp beads. This seemingly insignificant detail directly affects the display effect and application scenarios of the LED display.
The smaller the dot pitch, the more delicate the display effect of the LED display and the clearer the image. This is because the closer the distance between the lamp beads, the more lamp beads per unit area, and the more pixels that can be displayed, thereby improving the resolution and clarity of the LED display. Such LED displays are suitable for occasions that require high clarity and high resolution, such as commercial displays, advertising, etc. At the same time, LED displays with small dot pitch can also present more realistic colors and more delicate pictures, bringing a more shocking visual experience to the audience.
The larger the dot pitch, the more extensive the display effect of the LED display. Although such an LED display may be slightly inferior in clarity, it brings the advantages of large screen, high brightness and resistance to harsh environments. Such a display is suitable for outdoor billboards, traffic lights and other occasions, and can meet the needs of long-distance viewing. At the same time, due to the relatively low production cost and more affordable price, it has a higher cost-effectiveness in large-scale commercial applications.
The commonly used LED display models on the market include P1.25, P1.83, P1.86, P2.0, P2.5, P3.0, etc., each of which is suitable for different application scenarios. For example, P1.25 LED display is suitable for occasions that require extremely high definition, such as high-end commercial displays; while P2.0 LED display is more suitable for outdoor billboards and other long-distance viewing occasions.
