P3.91 LED Video Wall Rental

P3.91 LED Video Wall Rental

P3.91 Rental LED Indoor 500x500 Display, updated at 3840 Hz, 14-bit color depth, 65,536 pixels per square meter, weighs 7 kg per cabinet, Deformable cabinet structure with the ability to take irregular or curved shapes.
Send Inquiry
Description
Technical Parameters
Features



1. Ultra-light weights only 8kg, can be carried with one hand, and is quick to install.



2. High display brightness: The brightness is as high as 4500cd/㎡ or more. The brightness of the display screen can be adjusted according to the light intensity of the use environment to always keep the image clear.



3. Ultra-thin - the box is made of die-cast aluminum, which has high strength, toughness, high precision , and is not easily deformed, saving labor in transportation;



4. The main difference between LED rental screens is that they require frequent movement, repeated disassembly and installation. They are mainly used for stage performances and literary and artistic scenes. They are particular about product appearance design, structural design, and material selection, and have more demanding product requirements. high.



5. High precision - the dimensions are accurately processed by electromechanical processing.



6. Compatible - new structural design, meeting hoisting and stacking requirements, and meeting indoor and outdoor requirements.



7. Since LED rental screen products are frequently disassembled and assembled and easily damaged, when designing the product, you should fully understand the customer's needs, repeatedly simulate the customer's on-site usage, and then consider how to reduce product damage caused by disassembly and maintainability after damage. Sexual issues. In addition, there are bright colors, and raw materials such as color saturation, contrast, refresh rate, etc. need to be selected and configured.



8. Fast - the cabinet adopts a quick locking mechanism for the upper, lower, left and right connections, and the installation of a cabinet can be completed in 10 seconds , with high installation accuracy.



9. Strengthen the effect of advertising communication: Compared with traditional print advertisements, screen rental screens can play a variety of media content, including pictures, text, and videos.



10. Stable performance: Unique anti-electromagnetic wave processing, distributed scanning technology, and modular design make reliability and stability higher.



11. The screen rental screen can play high-definition advertising videos, which makes the brand image more vivid and distinctive, effectively attracting the audience's attention.



12. The P3.91 LED Video Wall Rental light, thin, quick to install, has a novel appearance, and is easy and quick to install.



13. Cost - The box is light in weight and requires low installation costs; the box has low power consumption, saving operating costs and reducing labor costs.









1001





P3.91 LED Video Wall Rental

1.led module size:250x250MM


2.Pixel pitch:PH3.91


3.Pixel configuration:65536 dot/m2


4.Package:SMD 1921


5.Module resolution:64(W)x64(H)


6.Max power:38W


7.Module thickness:16MM


8.Module weight:560g

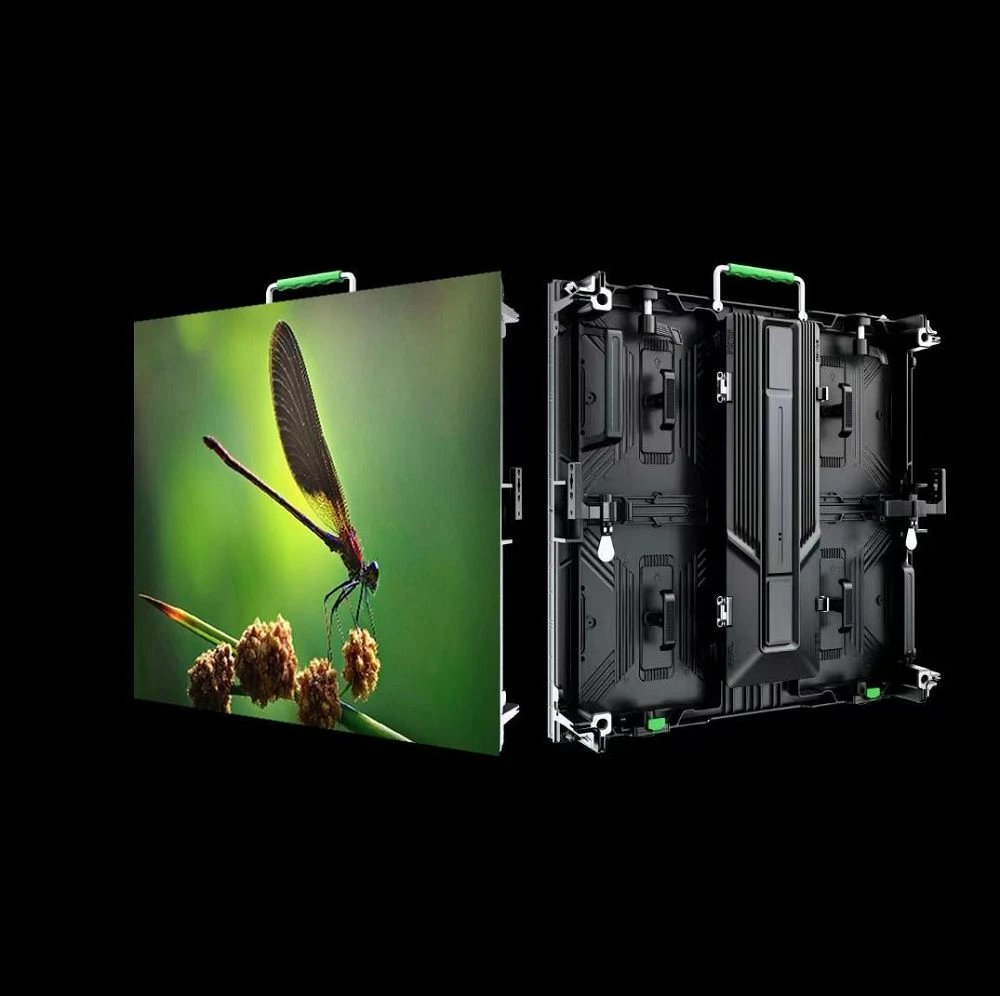

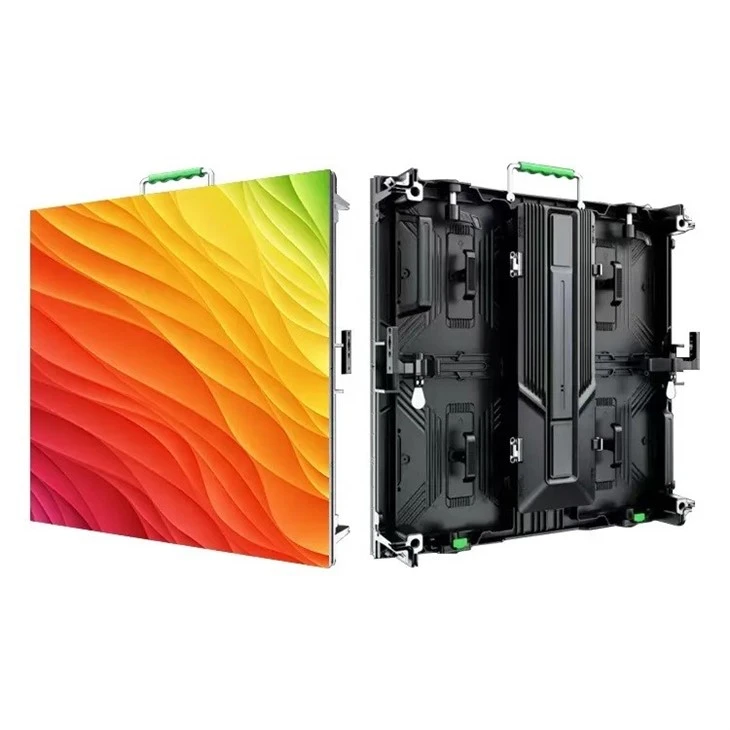

Led rental screen 500x500MM dis-cast aluminum

1.Cabinet size:500x500MM


2.Cabinet resolution:128(W)x128(H)


3.Material:Die-cast Aluminum


4.Scan mode:1/16 scan


5.Drive type:constant drive


6.Viewing angle:H:140°;V:120


7.Refresh rate:3840Hz


8.Average Power Consumption:240W/m2


9.Max.power consumption:800W/m2

3001

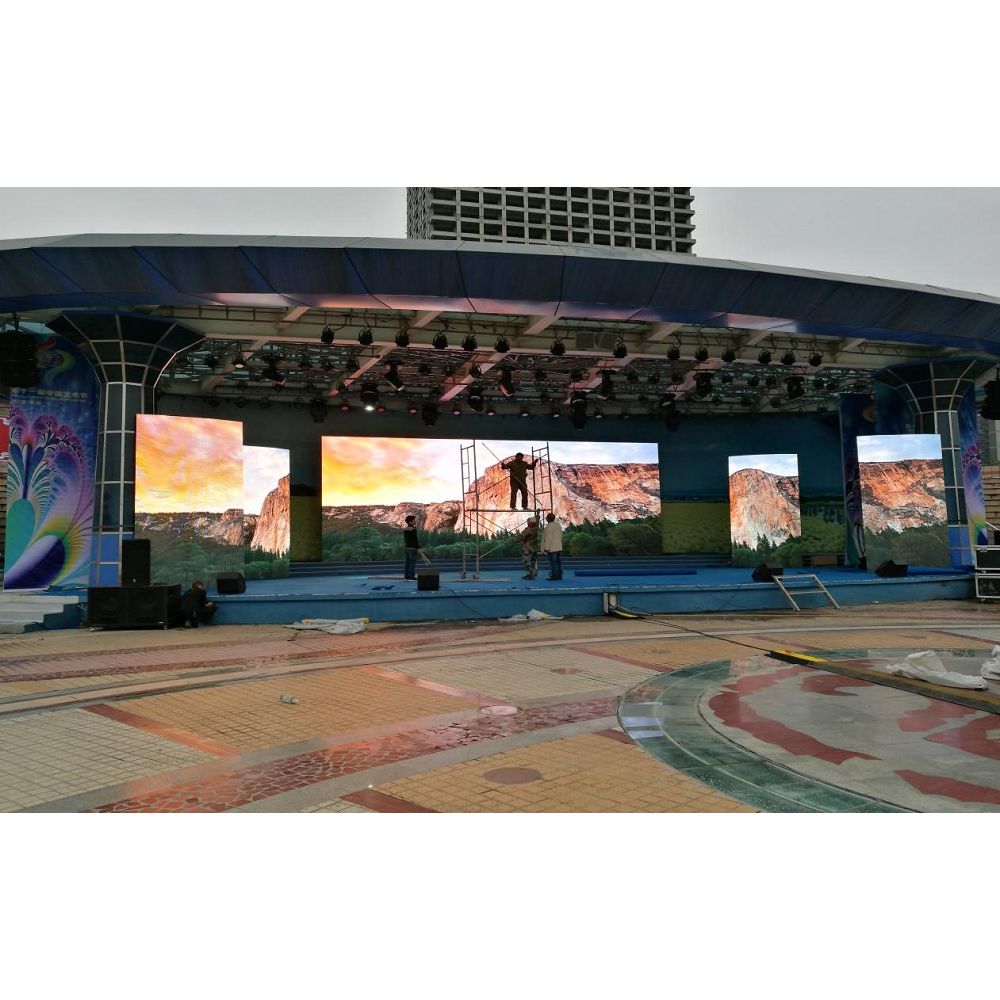

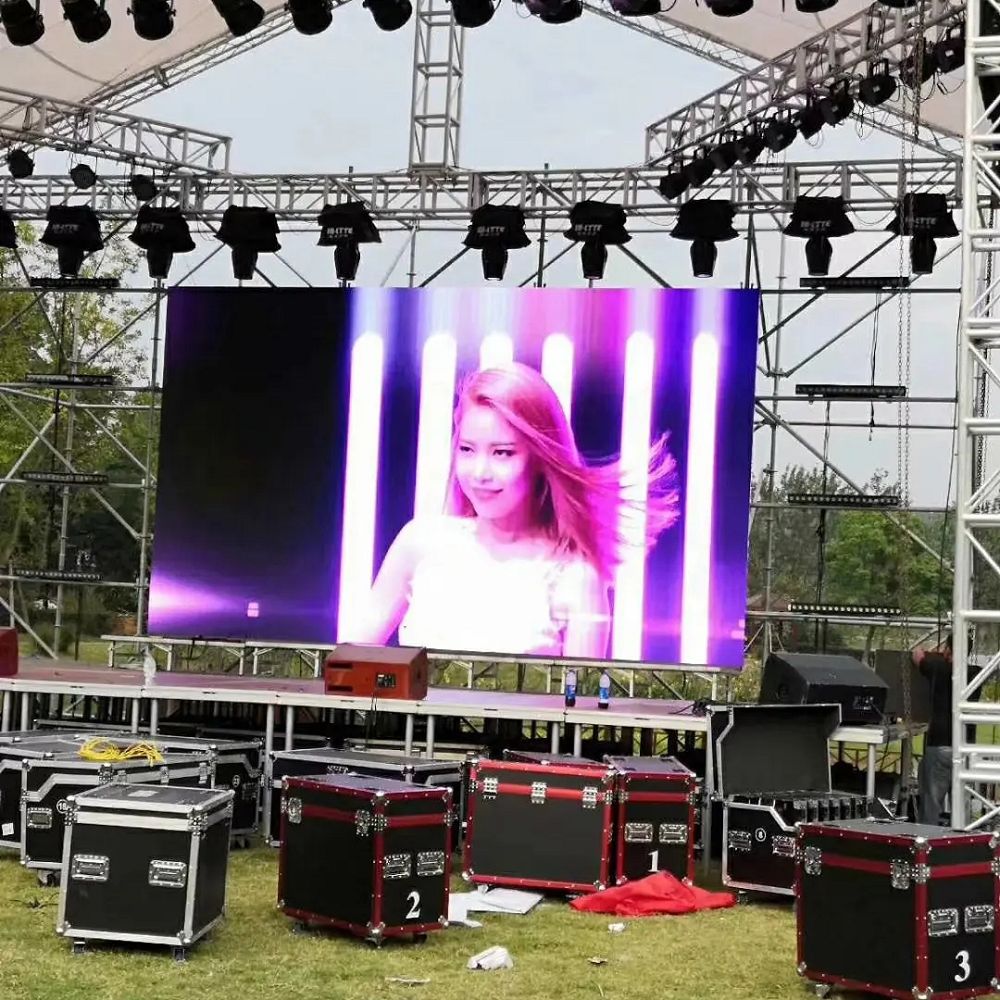

CASE SHARING



4002
图片尺寸 350x350
5001
Title



Hot Tags: P3.91 LED Video Wall Rental, China P3.91 LED Video Wall Rental manufacturers, suppliers, factory, P10 Outdoor Waterproof LED Screen, P2 LED Screen Poster, led display screen for advertising outdoor, Outdoor LED Digital Video Wall, led advertising screen, led poster

Pixel Pitch

2.6mm

2.976mm

3.91mm

4.81mm

Led Module Size

250 x 250mm

250 x 250mm

250 x 250mm

250x250mm

Led Panel Size

500 x 500mm

500 x 500mm

500 x 500mm / 500x1000mm

500x500mm

Led Panel Weight

7.3KG

7.3KG

7.3KG/13KG

7.3KG

Refresh Rate

3840Hz

3840Hz

3840Hz

3840Hz

Drive Method

1/32 Scan

1/28 Scan

1/16 Scan

1/16 Scan

Brightness

1000nits

1000nits

1200nits

1200nits

Power Supply

Chuanglian/ G-energy/ MeanWell

Chuanglian/ G-energy/ MeanWell

Chuanglian/ G-energy/ MeanWell

Chuanglian/ G-energy/ MeanWell

Receiving Card

Novastar / Linsn / Colorlight / Huidu

Novastar / Linsn / Colorlight / Huidu

Novastar / Linsn / Colorlight / Huidu

Novastar / Linsn / Colorlight / Huidu

Max Power Consumption

200W/pcs

200W/pcs

200W/pcs

200W/pcs

Working Temperature

-20℃~+50℃

-20℃~+50℃

-20℃~+50℃

-20℃~+50℃

Best Viewing Distance

2-25m

2.5-30m

3-40m

3-8m

Best Viewing Angle

H: 140°; V:140°

H: 140°; V:140°

H: 140°; V:140°

H: 140°; V:140°

Life Span

100,000 hours

100,000 hours

100,000 hours

100,000 hours

Working System

Windows

Windows

Windows

Windows
