Products Description

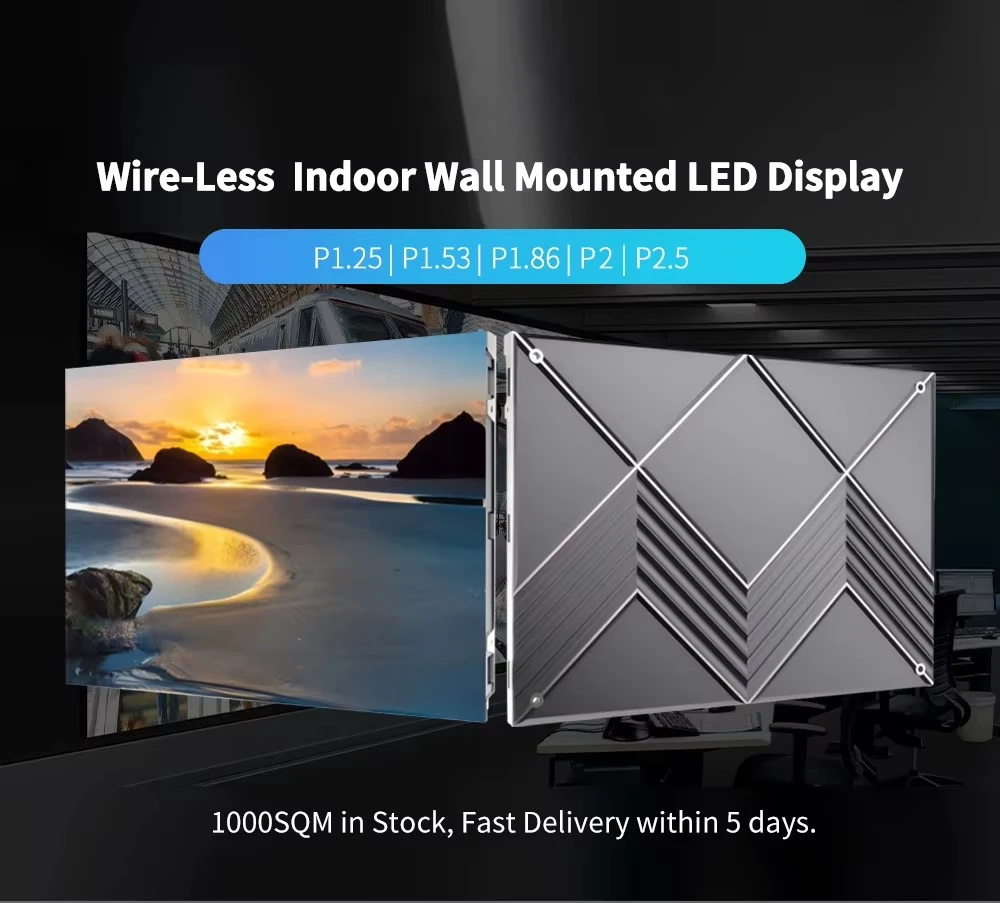

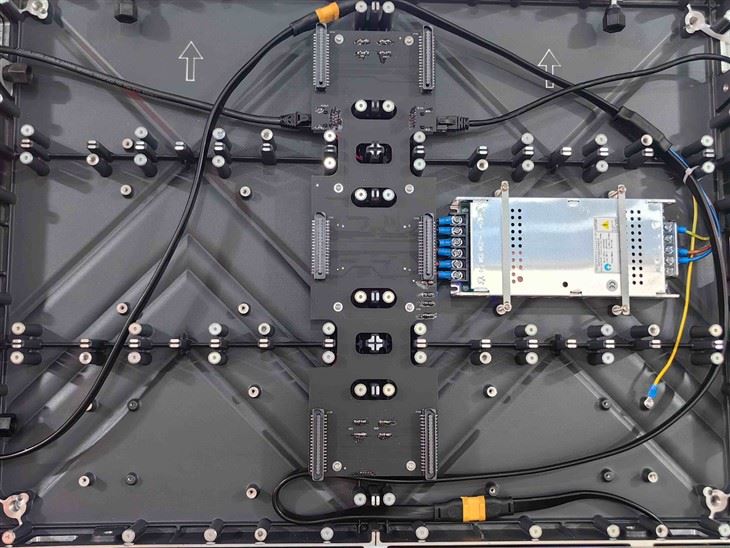

The hard connection design led panels offer the perfect solution for any installation requiring ultra-high definition. With a pixel pitch ranging from P1.2 P1.5 P1.8 P2.0, P2.5, configurations of 2K, 4K resolution displays . So, it is ideal and affordable for indoor applications such as corporate lobbies, digital art, churches, conference room, retail needs, malls, and much more.

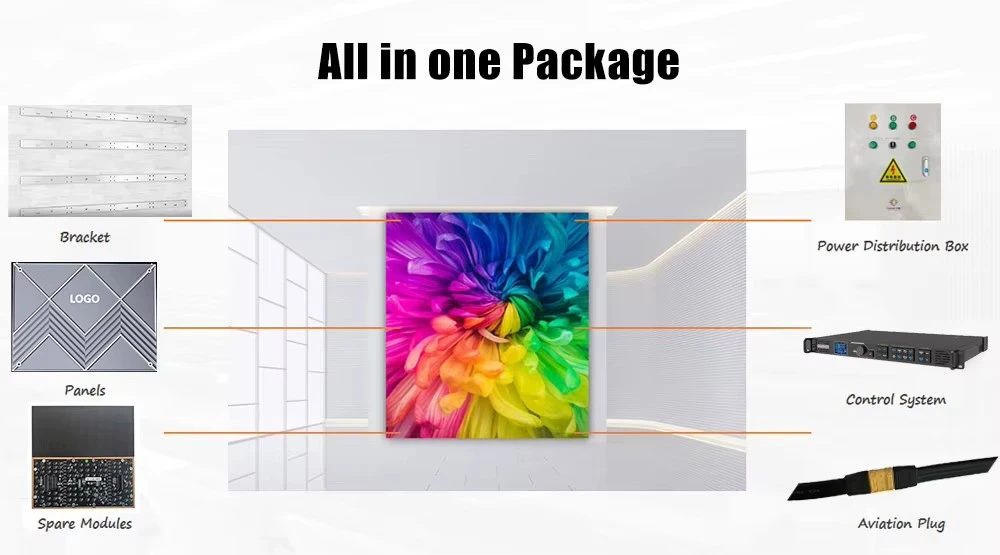

They offers one-stop purchase with our edge cover and wall mounting system, and it features front service modules for efficient hassle-free maintenance, resulting in minimal screen downtime,they can work globally with worry-free.

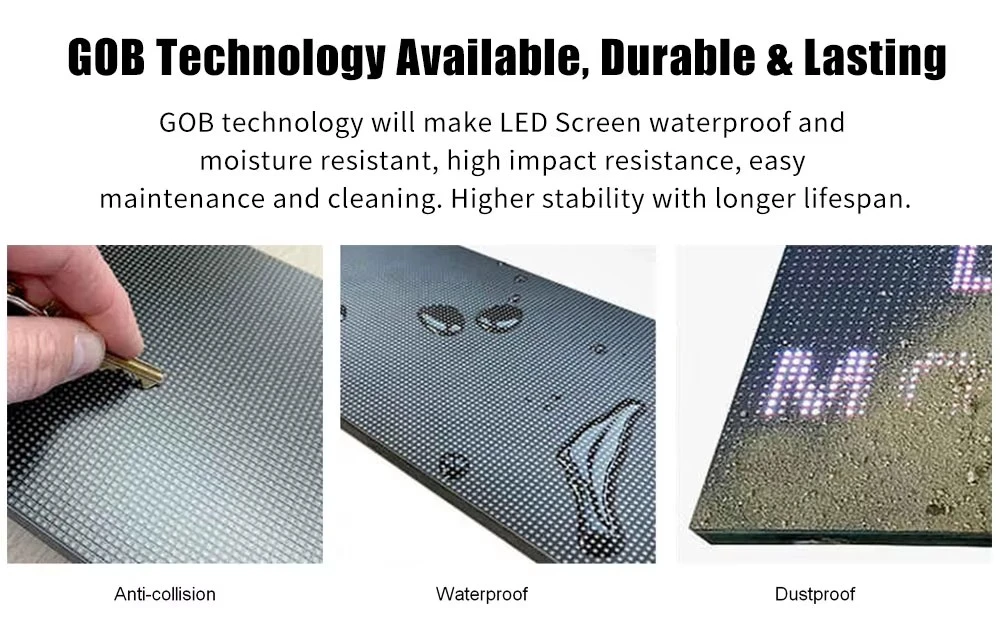

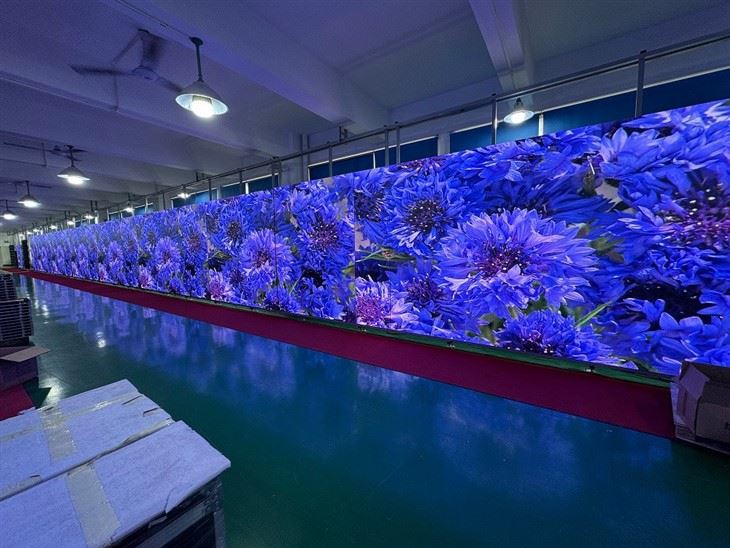

With SMD and GOB packaging, They are ready to transform any indoor space into a captivating visual experience.
|
Model
|
P1.25
|
P1.86
|
P2.5
|
|
LEDType
|
SMD1515
|
SMD1515
|
SMD1515
|
|
Physical Density (dot/m²)
|
640000
|
289050
|
160000
|
|
Module Size (W ×H ×D) mm
|
320x160x17
|
320x160x17
|
320x160x17
|
|
Module Resolution(W×H)
|
256x128
|
172x86
|
128x64
|
|
Cabinet Size (W ×H ×D) mm
|
640x480x74
|
640x480x74
|
640x480x74
|
|

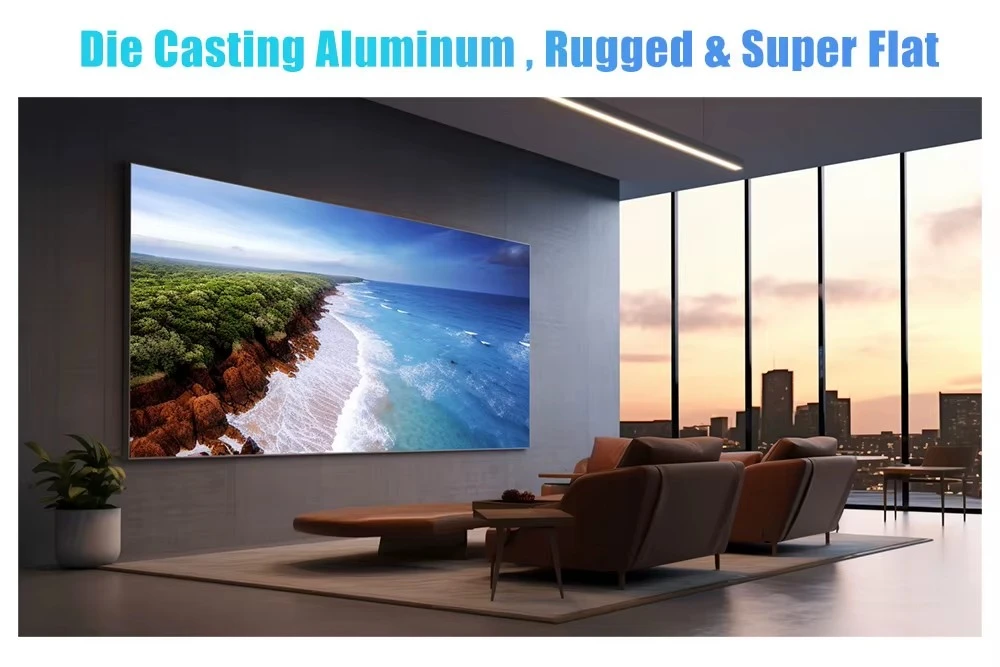

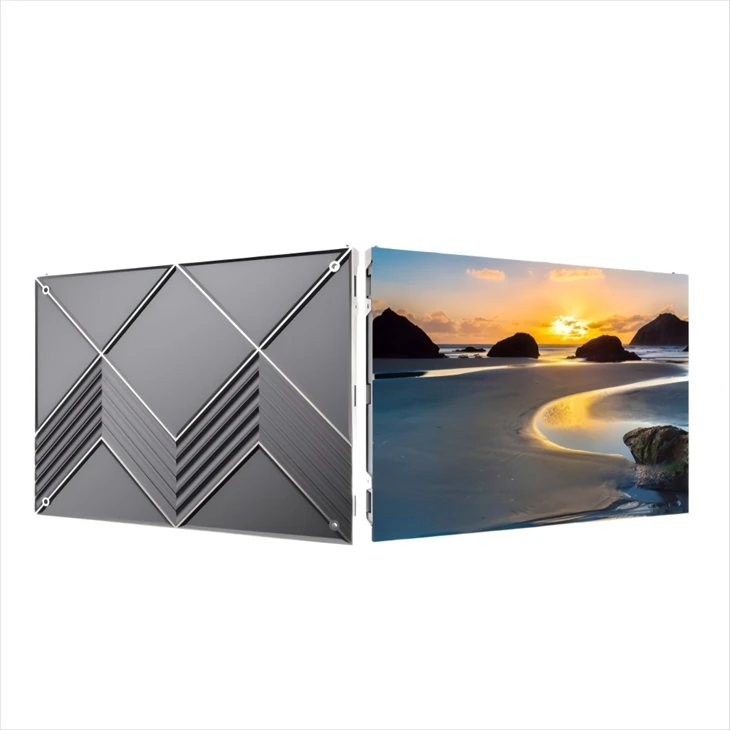

Cabinet Material
|
Die Casting Aluminum
|
Die Casting Aluminum
|
Die Casting Aluminum
|
|
Scanning Mode
|
1/64
|
1/48
|
1/32
|
|
Cabinet Flatness(mm)
|
≤0.10
|
≤0.10
|
≤0.10
|
|
Grey Scale (Bit)
|
14
|
14
|
14
|
|
Protection Level
|
IP45
|
IP45
|
IP45
|
|
Brightness(cd/㎡)
|
500-900cd/㎡
|
500-900cd/㎡
|
500-900cd/㎡
|
|
ColorTemperature
|
3200-9300Kadjustable
|
3200-9300Kadjustable
|
3200-9300Kadjustable
|
|
Brightness Uniformity
|
≥98%
|
≥98%
|
≥98%
|
|
Horizontal/Vertical ViewAngle
|
≥140°/≥120°
|
≥140°/≥120°
|
≥140°/≥120°
|
|
Contrast Ratio
|
≥5000:1
|
≥5000:1
|
≥5000:1
|
|
Module Input Voltage DC
|
5V
|
5V
|
5V
|
|
Max Refresh Rate
|
≥3840Hz
|
≥3840Hz
|
≥3840Hz
|
|
Input VoltageAC
|
110-220V
|
110-220V
|
110-220V
|
|
Cabinet Max Power Consumption
|
≤600W/m2
|
≤580W/m2
|
≤480W/m2
|
|
Cabinet Aver.PowerConsumption
|
≤200W/m2
|
≤180W/m2
|
≤160W/m2
|
|
Working Temperature
|
20℃～+80℃
|
20℃～+80℃
|
20℃～+80℃
|
|
Working Humidity
|
10%～95%RH
|
10%～95%RH
|
10%～95%RH
|
|
Installation/Service Method
|
Front installation/Front service
|
Front installation/Front service
|
Front installation/Front service
|
