Description

Technical Parameters

Technical Parameter

Pixel Pitch	P0.78125	P0.9375	P1.25	P1.5625	P1.875
Physical density(Dot/sqm)	1638400	1137778	640000	409600	284444
Module size(mm)	150X168.75	300X168.75	300X168.75	300X168.75	300X168.75
Panel Dimension (WXHXD/mm)	600X337.5X27.5	600X337.5X27.5	600X337.5X27.5	600X337.5X27.5	600X337.5X27.5
Panel Resolution	768X512	640X360	480X270	384X216	320X180
Module QTY(WXH)	4X2	2X2	2X2	2X2	2X2
Panel weight(kg)	4.5	4.5	4.5	4.5	4.5
Maintenance Mode	Front maintenance	Front maintenance	Front maintenance	Front maintenance	Front maintenance
Cabinet Material	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum
Brightness Carlibration	have	have	have	have	have
Brightness(Nits)	≥600	≥600	≥600	≥600	≥600
Color temperature(K)	1000-18500 Optional	1000-18500 Optional	1000-18500 Optional	1000-18500 Optional	1000-18500 Optional
Viewing angle(V/H)	170°/170°	170°/170°	170°/170°	170°/170°	170°/170°
Brightness/Color uniformity	≥99.8%	≥99.8%	≥99.8%	≥99.8%	≥99.8%
Contrast ratio	10000 : 1	10000 : 1	10000 : 1	10000 : 1	10000 : 1
Frame frequency	50/60	50/60	50/60	50/60	50/60
Drive mode	1/48 scan	1/46 scan	1/45 scan	1/48 scan	1/45 scan
Grey level	16bit	16bit	16bit	16bit	16bit
Refresh rate(Hz)	3840	3840	3840	3840	3840
Max. power consumption(W/sqm)	420	420	420	420	420
Avg. power consumption(W/sqm)	100	100	100	100	100
Protection level	IP31	IP31	IP31	IP31	IP31
Power input	AC90-264V,47-63Hz
Wroking temperature/humidity(℃/RH)	-20~60℃/10%~85%
Storage temperature/humidity(℃/RH)	-20~60℃/10%~85%

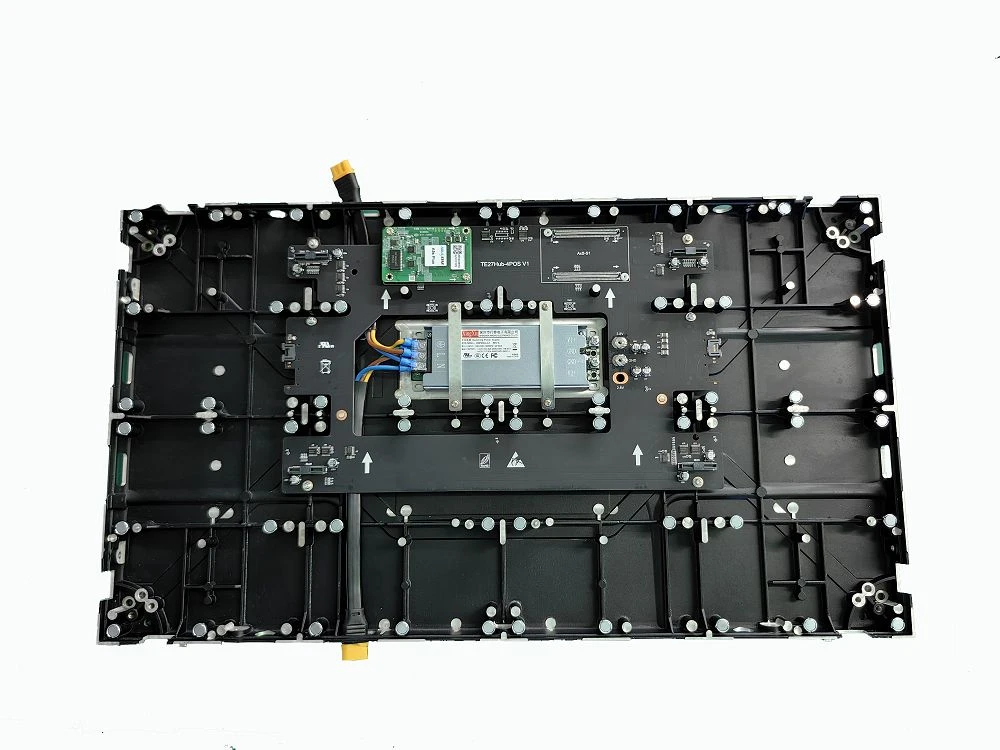

1001

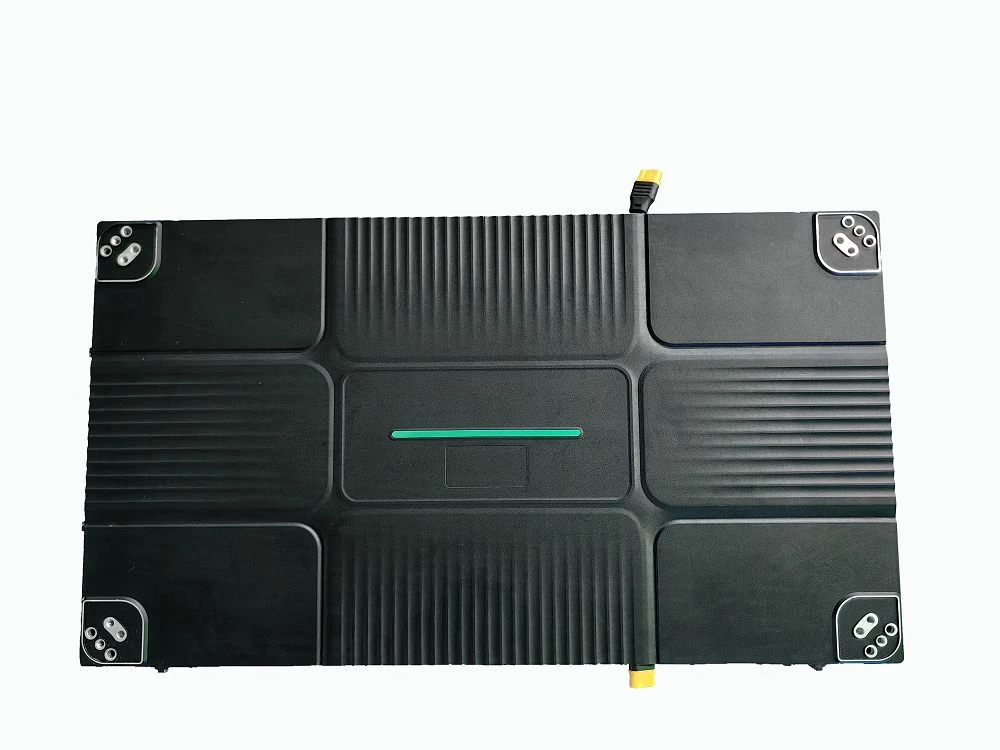

2001

Features

1. High definition: Using high-resolution, high-grayscale, and high-contrast technology, it can present very clear and realistic images and videos.

2. Large size: It can be customized according to needs, and can be dozens of meters or even larger in size to meet the needs of various occasions.

3. Good color rendering: Using chip dot matrix control technology, it can present rich and delicate colors with high color reproduction and strong realism.

4. High brightness: Due to the use of high-brightness LED light source, it can still be displayed clearly even in a bright indoor environment, and whether it is text, images or videos, they appear very vivid.

5. Low energy consumption: It adopts energy-saving technology, which has low energy consumption and is environmentally friendly and energy-saving.

6. Good reliability: The LED display adopts a modular design. When a single module fails, it will not affect the entire screen and is easy to maintain and maintain.

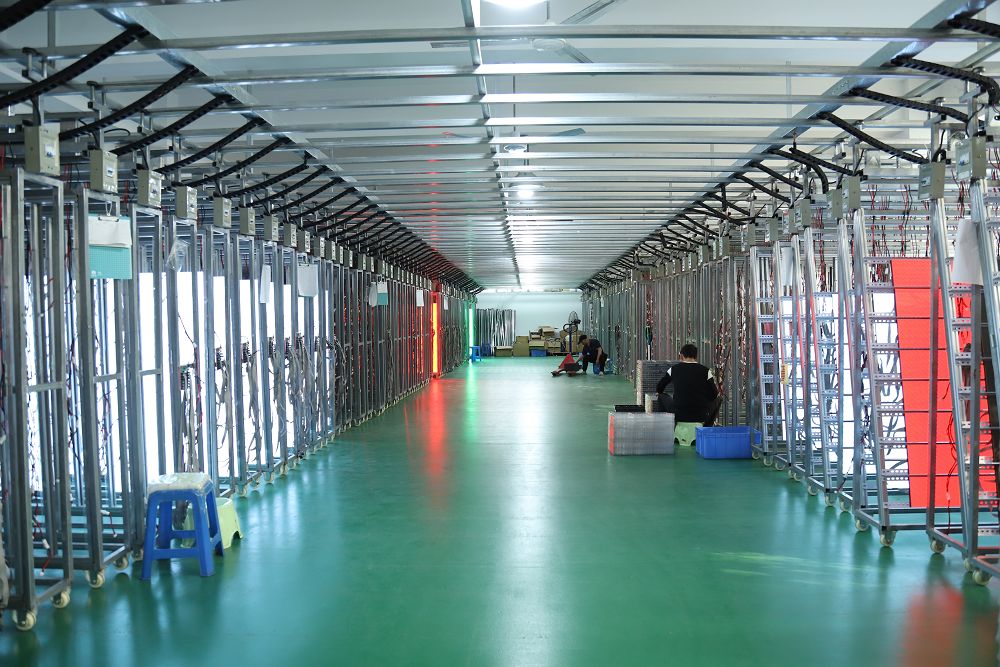

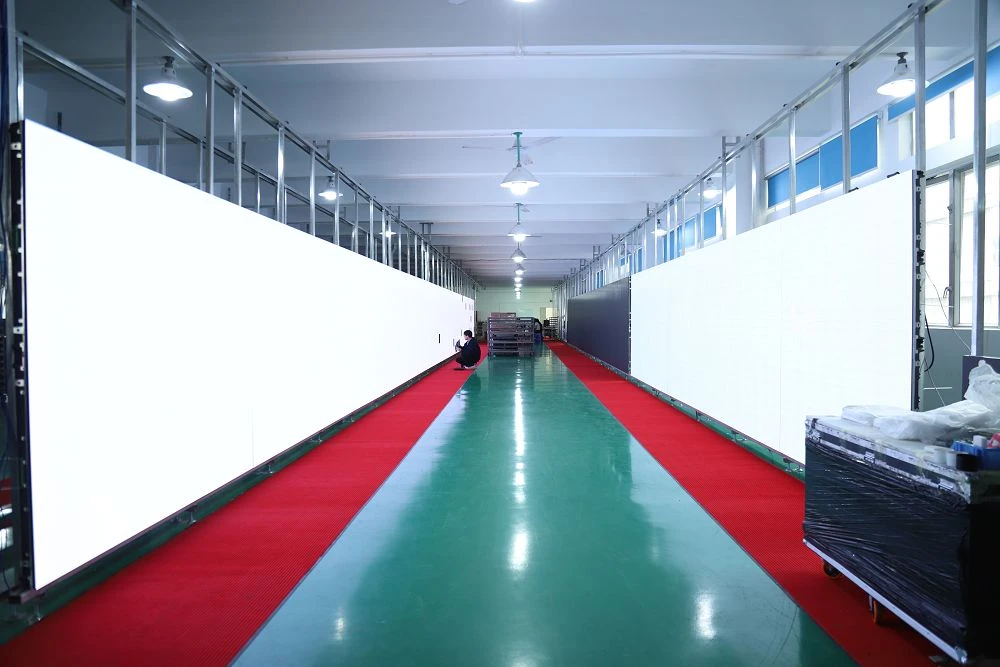

Before going into mass production, every one of our indoor LED displays is put through a thorough testing process in our laboratory apparatus. The end product will function well and be stable and long-lasting thanks to this painstaking process. We put a great deal of emphasis on quality control and go above and beyond to make sure that our LED displays satisfy the highest requirements for our customers. We appreciate your consideration of our offerings and hope that our LED displays will surpass your expectations.
