Products Description

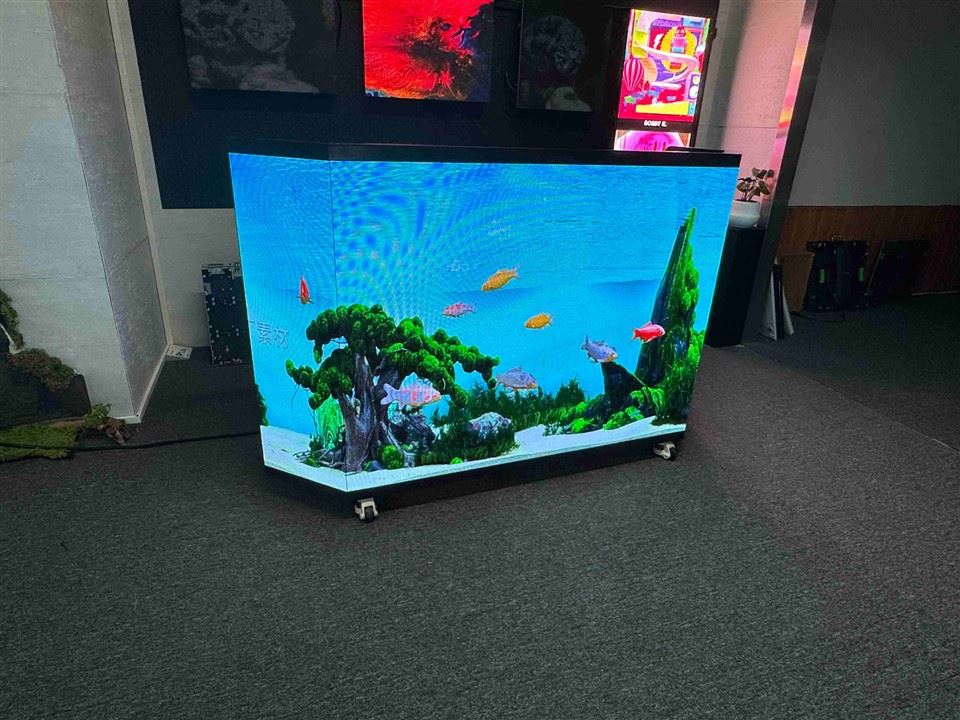

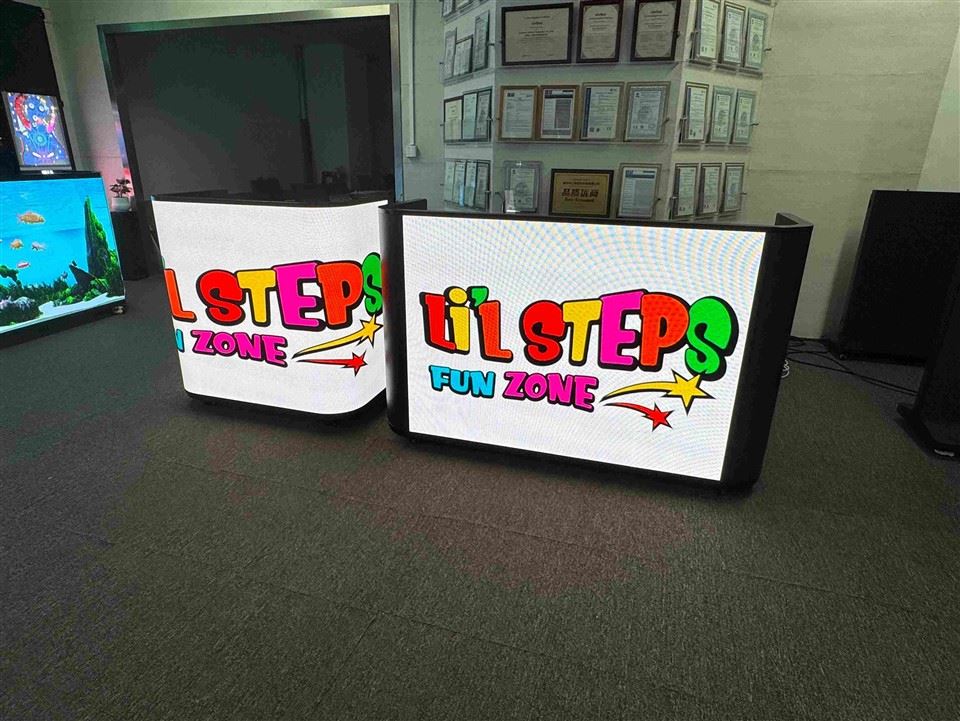

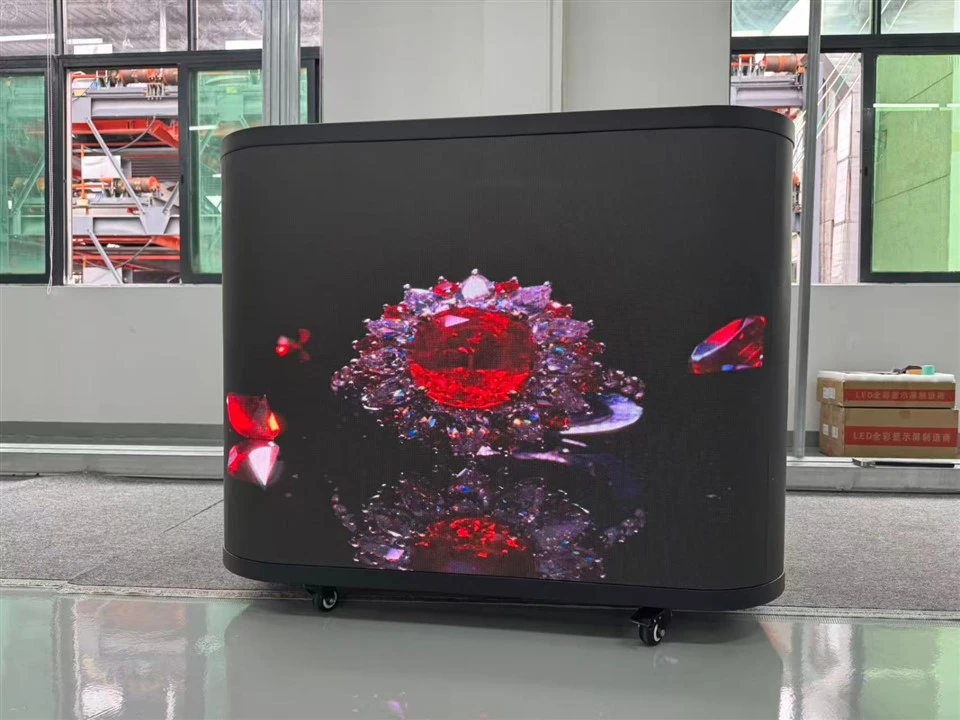

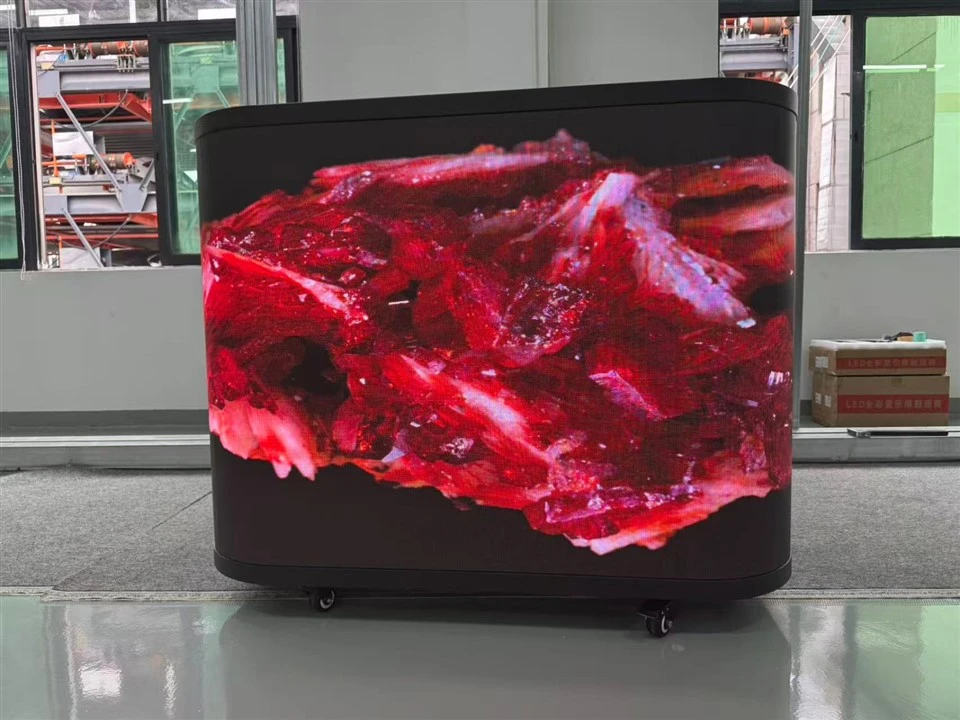

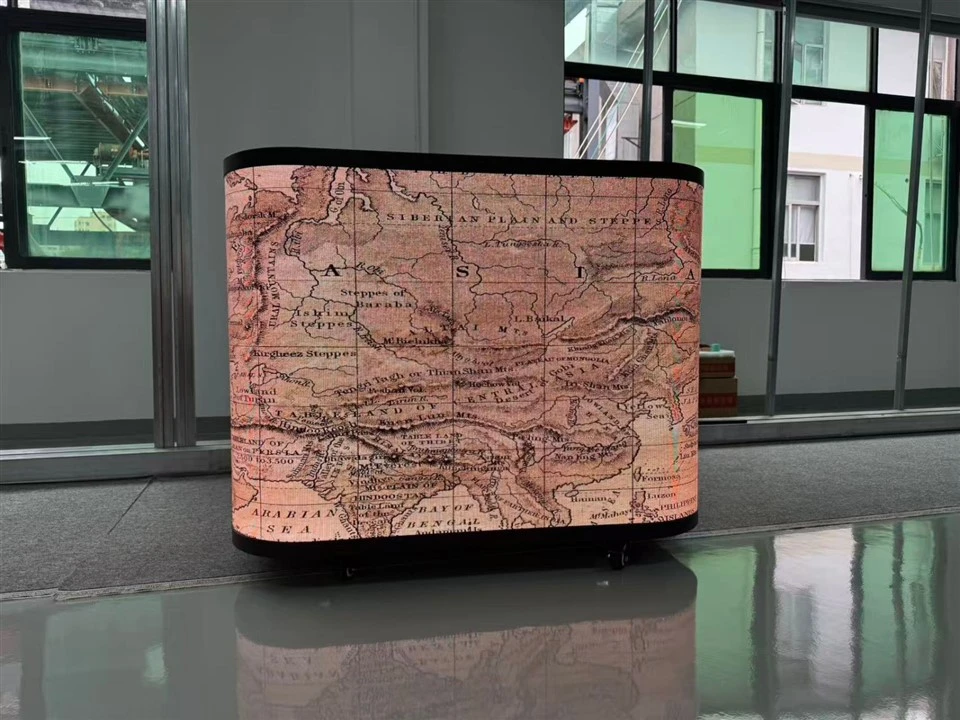

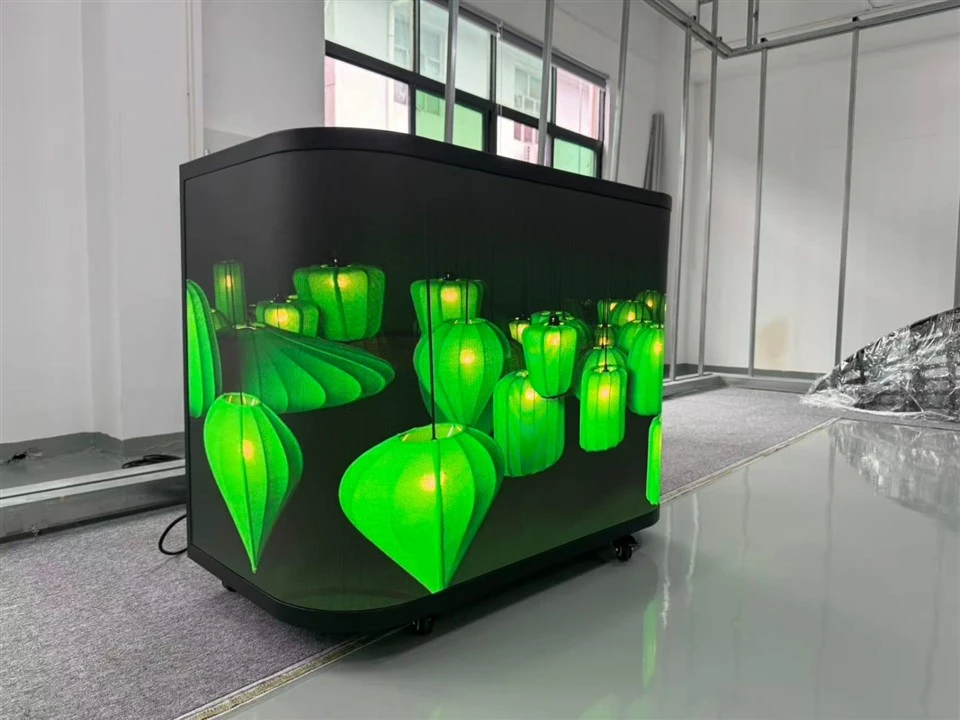

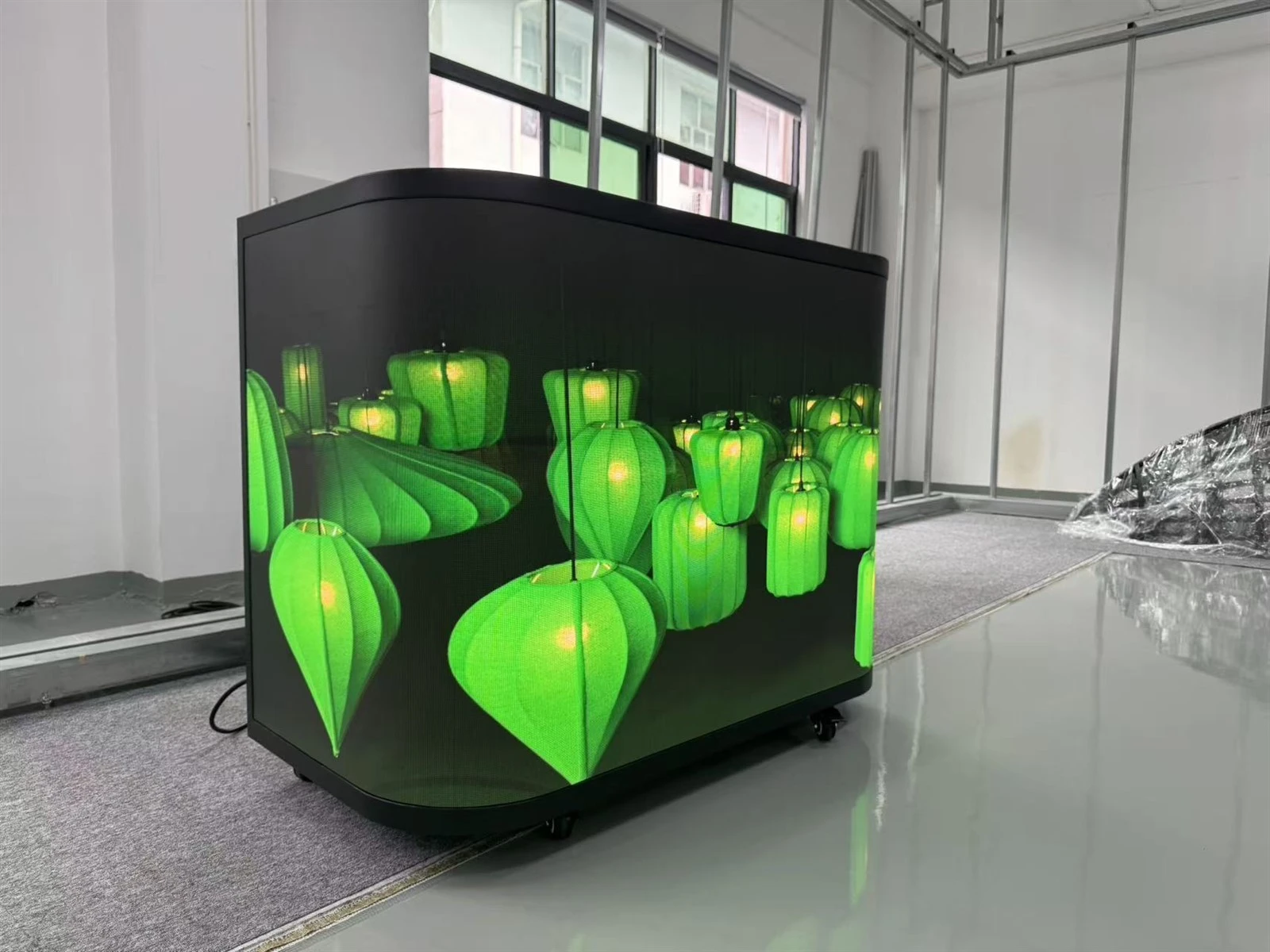

ELLIPSETABLE EDGE CURVED LED DISPLAY TABLE
Not only a desk,but a high-definition LED video wall display
Features:
1.Private mold design
2.HD Display Clear, vivid visuals
3.One-click Play Quick content launch
4.Custom size & ShapeTailored to your needs
Products parameter
|
Item
|
Parameters
|
Parameters
|
Parameters
|
|
Model
|
P1.86 GOB
|
P2 GOB
|
P2.5GOB
|
|
Pixel Pitch(mm)
|
1.86
|
2
|
2.5
|
|
Physical Density (dot/sqm)
|
532512
|
460800
|
294912
|
|
LED Configuration
|
1RGB
|
1RGB
|
1RGB
|
|
LED Type
|
GOB
|
GOB
|
GOB
|
|

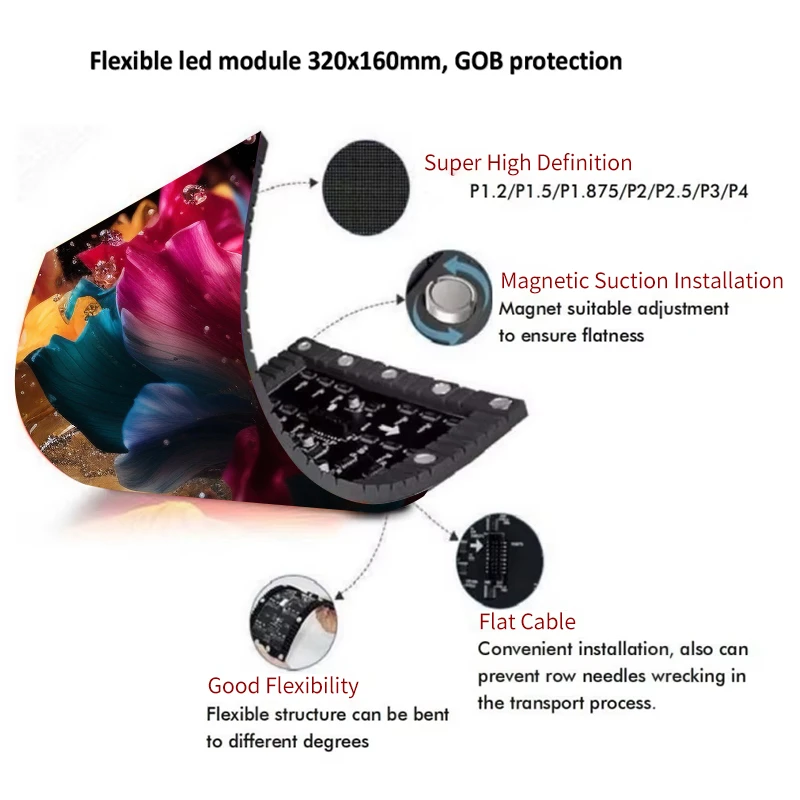

Module Size (mmxmm)
|
320x160
|
320x160
|
320x160
|
|
Module Resolution (PXxPX)
|
172x86
|
160x80
|
128x64
|
|
Brightness(cd/sqm)
|
1000-1100
|
1000-1100
|
1000-1050
|
|
Refresh Rate(Hz)
|
3840z
|
3840z
|
3840z
|
|
Drive Mode
|
Constant Current Drive
|
Constant Current Drive
|
Constant Current Drive
|
|
Horizontal Viewing Angle(Deg)
|
170
|
170
|
170
|
|
Vertical Viewing Angle(Deg)
|
170
|
170
|
170
|
|
Cabinet Resolution(PXxPX)
|
1032x516
|
960x480
|
768x384
|
|
Cabinet Max Power Consumption(w)
|
700
|
700
|
700
|
|
Cabinet Average Power Consumption(w)
|
600
|
600
|
600
|
|
Cabinet Size(mmxmm)
|
1065x585x1100
|
1065x585x1100
|
1065x585x1100
|
|
Cabinet Thickness(mm)
|
60mm
|
60mm
|
60mm
|
|
Cabinet Material
|
Die-casting Aluminum
|
Die-casting Aluminum
|
Die-casting Aluminum
|
|
Color(M)
|
16.7
|
16.7
|
16.7
|
|
Input Voltage
|
AC100V-240V +/-10%
|
AC100V-240V +/-10%
|
AC100V-240V +/-10%
|
|
Refresh Frame Frequency(Hz)
|
50-60
|
50-60
|
50-60
|
|
Protection Level
|
IP43
|
IP43
|
IP43
|
|
Working Environment
|
Indoor
|
Indoor
|
Indoor
|
|
Working Temperature(℃)
|
-40℃-60℃
|
-40℃-60℃
|
-40℃-60℃
|
|
Storage Humidity(RH)
|
40%-60%
|
40%-60%
|
40%-60%
|
|
Life Span(H)
|
100,000
|
100,000
|
100,000
|

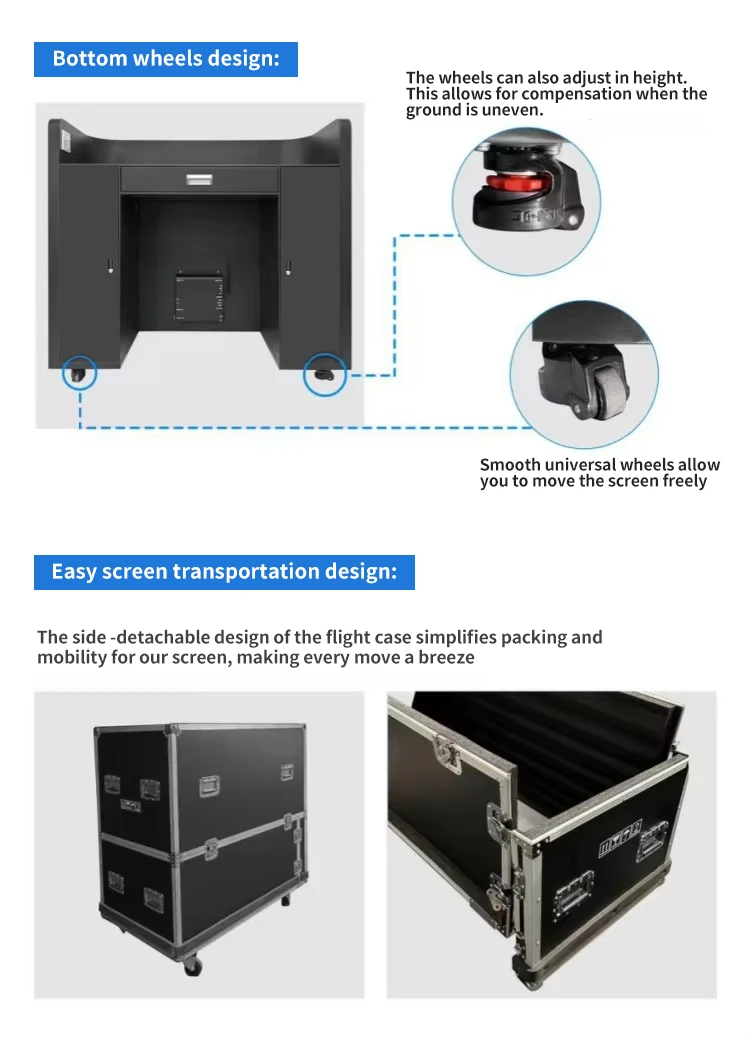

Products Detailes
FAQ
FAQ
Q1: How much is the freight?
A: The shipping cost is determined by the size of the screen, and the project information is informed by the inquiry.
Q2: What is Price per square meter of screen?
A: Welcome to send us inquiry(candy@jiulongled.cn). Our professional sales engineers will provide suitable solutions.
Q3: Can I customize it?
A: Of course. All the goods can be customized, pls send us your information to candy@jiulongled.cn ,we have a professional product development team, welcome to customize.
Q4:What is the warranty?
A: 2-3 years Warranty.
Q5: How many days for producing?
A: 3-5 days for samples and 10-15 days for customized products.
Q6: How to operate and use it?
A: It can by controlled by PC and Smartphone very easily.
A: The shipping cost is determined by the size of the screen, and the project information is informed by the inquiry.
Q2: What is Price per square meter of screen?
A: Welcome to send us inquiry(candy@jiulongled.cn). Our professional sales engineers will provide suitable solutions.
Q3: Can I customize it?
A: Of course. All the goods can be customized, pls send us your information to candy@jiulongled.cn ,we have a professional product development team, welcome to customize.
Q4:What is the warranty?
A: 2-3 years Warranty.
Q5: How many days for producing?
A: 3-5 days for samples and 10-15 days for customized products.
Q6: How to operate and use it?
A: It can by controlled by PC and Smartphone very easily.
Welcome to inquiry for more information. We provide video guidance and remote assistance.
